High Speed V Bottom Paper Bag Machine
Product Description
High Speed V Bottom Paper Bag Machine With BOPP Plastic Film,popular used for Baking packaging, French bread bags, caterpillar bread, baguette laminated window kraft paper bags.
High speed v bottom paper bag machine is designed to produce the v bottom paper bags or paper bags with the window, it also can add extra in-line printing unit to produce the v bottom paper bags with logo. It is an ideal equipment for producing the v bottom paper bags or with the window which mainly used in food shop. It use the paper roll and water-based glue as raw materials, through loading paper rolls, paste the film, pre-cut, side gluing, forming, snap, bottom gluing, bottom folding to produce the paper bags.
Machine Parameters
| Model | JD270 | JD350 |  |
| Paper Grams | 35-80gsm | 35-80gsm | |
| Bag Tube Length | 117-360mm（4hub） 365-450mm(2hub) |
155-400mm(4hub) 405-765mm(2hub) |
|
| (H) Step Height | 17mm | 17mm | |
| Bag Length | 100-355mm（4hub） 360-445mm（2hub） |
150-395mm(4hub) 400-760mm(2hub) |
|
| Bag Width | 80-270mm | 80-350mm | |
| Speed | 50-500pcs/min | 50-500pcs/min | |
| Insert Paper Edge Depth | 10-60mm | 10-60mm | |
| Paper Roll Width | 220-810mm | 220-970mm |
Machine Details
|

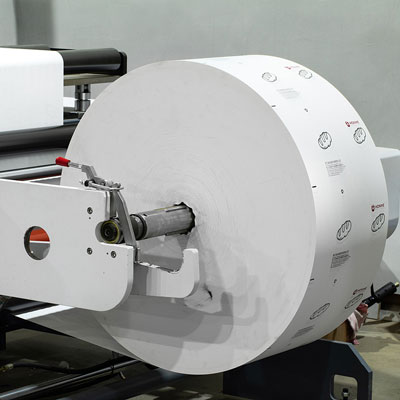

Feature 1: feeding device About the paper roll motor device, paper roll manual switch, easy to complete the paper roll, without manual handling. Magnetic powder brake is adopted for paper tension, which can be used for long time and even tension control. |
 |
|

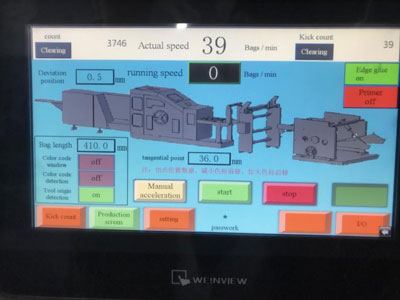

Feature 2: Operation interface Adopt touch screen man-machine interface. Convenient operation and control. |
 |
|

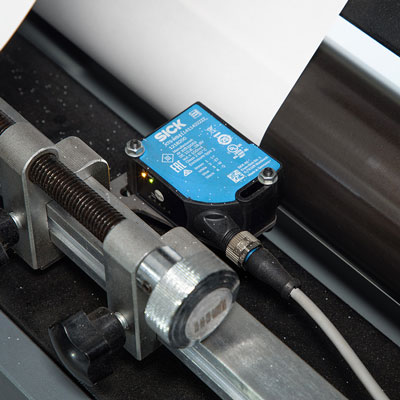

Feature 3: Color code tracking system Adopt German brand: Sick color photo electric tracking, accurate tracking paper printing photos, automatic alignment, if changing paper roll, power does not need to adjust the cutting position, if color difference automatically stop, reduce scrap rate. |
 |

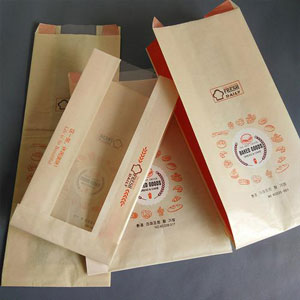

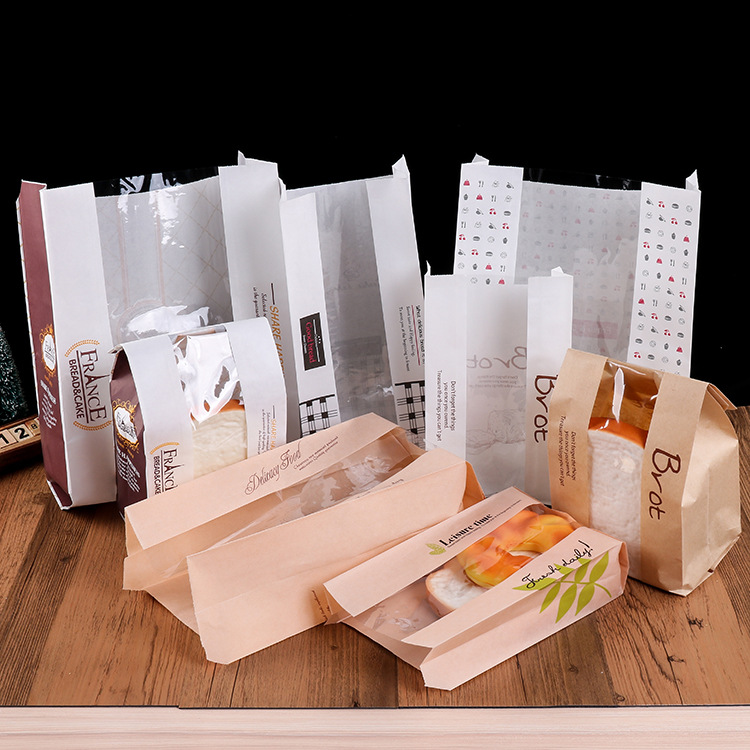

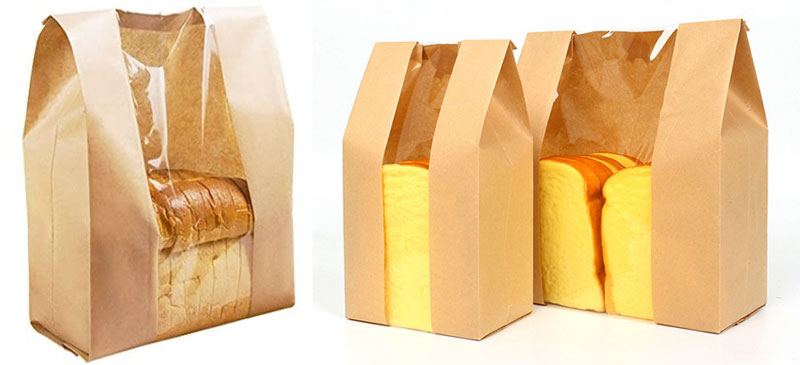

Samples
