V Bottom Paper Bag Machine With Printing
Product Description
High Speed V Bottom Paper Bag Machine With 2 Colors Printing Inline
This v bottom paper bag machine is designed to produce the v/flat bottom paper bags which is widely used for food products, i.e bread bags, KFC bags, grocery bags and so on. The forming bag process are feeding, printing, pre-cut, side gluing, forming, snap, bottom gluing, folding bottom and finish the paper bags. This machine can include the 1 color, 2 colors or 4 colors inline printing unit to print the logos or pictures directly when produce the paper bags, if don’t need the printing, just to pass the printing unit without ink.
Machine Parameters
| Model | JD270 | JD350 |  |
| Paper Grams | 35-80gsm | 35-80gsm | |
| Bag Tube Length | 117-360mm（4hub） 365-450mm (2hub) |
155-400mm(4hub) 405-765mm(2hub) |
|
| (H) Step Height | 17mm | 17mm | |
| Bag Length | 100-355mm（4hub） 360-445mm（2hub） |
150-395mm(4hub) 400-760mm(2hub) |
|
| Bag Width | 80-270mm | 80-350mm | |
| Speed | 50-500pcs/min | 50-500pcs/min | |
| Insert Paper Edge Depth | 10-60mm | 10-60mm | |
| Paper Roll Width | 220-810mm | 220-970mm |
Printing Machine Parameter
| TYPE | YT-2800 | YT-41000 | |
|
| Max. Printing material width | 800mm | 1000mm | ||
| Max. Printing width | 960mm | 960mm | ||
| Printing length range | 230-800mm | 230-800mm | ||
| Printing speed | 5-100m∕min | 5-100m∕min | ||
| Register precision | ≤±0.20mm | ≤±0.20mm | ||
| Thickness of plate (including the thickness of double sides glue) | 2.28mm | 2.28mm | ||

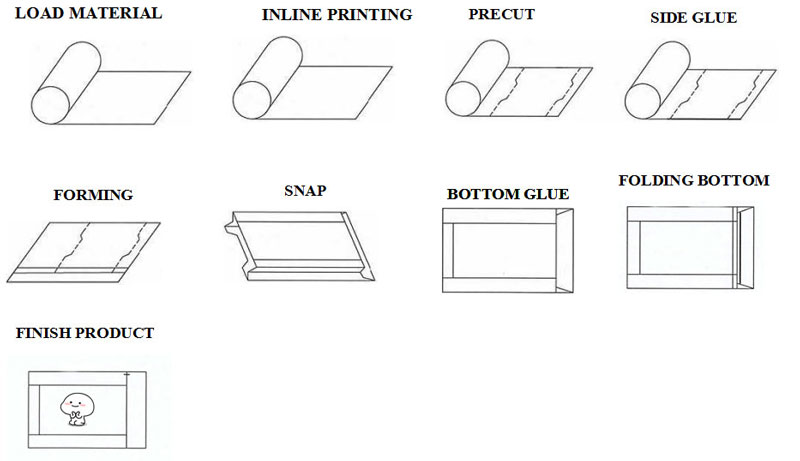

Producing Process

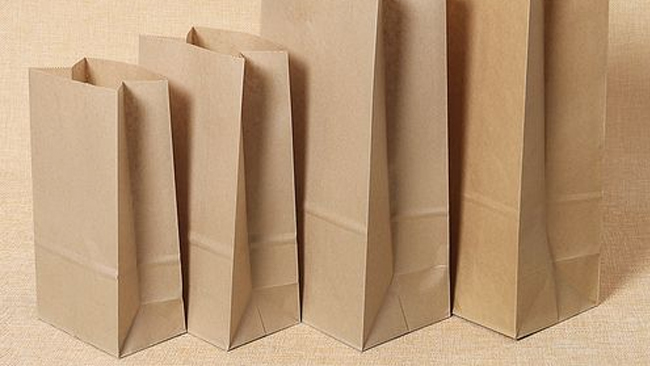

Samples
