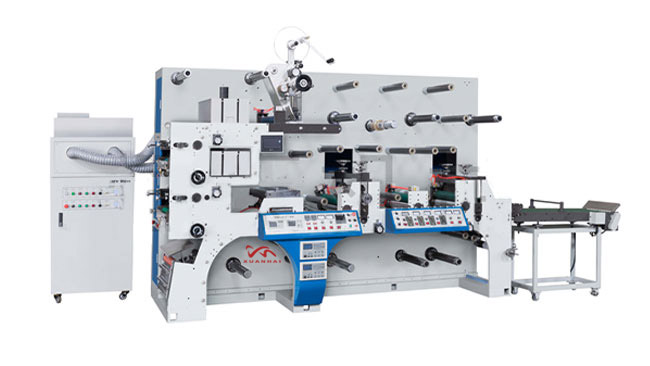

RY420 2 Color Multifunctional Flexographic Printing Machine
Technical parameter
|
Printing speed |
50m-60m/min |
Recycling speed regulating motor 90W |
|
|
Number of printing colors |
2 colors |
Main motor 3KW (Shanghai) |
|
|
Feeding width |
420mm |
Magnetic powder brake 50N (Haitai) |
|
|
Maximum unwinding diameter |
600mm |
Magnetic particle clutch 50N (Haitai) |
|
|
Maximum winding diameter |
600mm |
Magnetic powder brake 25N (Haitai) |
|
|
Maximum printing size |
240-430mm |
Automatic winding tension (Zhongxing) |
|
|
Overprint accuracy |
±0.15mm |
Automatic tension for unwinding (Zhongxing) |
|
|
Voltage |
380V±10% |
Inverter (Schneider) |
|
|
Total power |
23kw |
Button (Schneider/Delisi) |
|
|
Total pressure |
0.6MP |
Multi-station laminating device |
Multi-station waste collection device |
|
Lubrication system |
Artificial |
Double station round knife device |
Automatic labeling device |
|
weight |
3500kg |
Circular knife breaking device |
|
|
Dimensions |
2300mmX1200mmX2600mm |
Pick up platform |
|
|
|
|
Double correction device |
|
Features
1. Use ceramic anilox roller to transfer ink.
2. Unwinding and rewinding are controlled by magnetic powder brake and clutch (or optional Japanese Mitsubishi automatic tension controller).
3. Each printing unit adopts 360°circumferential registration adjustment.
4. Each printing unit has a set of electronic power UV drying device.
5. This machine is equipped with two sets of die-cutting stations, three sets of peritoneal devices, and multiple unwinding and receiving devices
6. The ink roller can be detached automatically when parking, and run at low speed to prevent the ink from drying out.
7. The main motor adopts imported frequency conversion stepless speed regulation.
8. This machine is equipped with a labeling machine,
9. Paper feeding, printing, gluing, compounding, automatic UV drying, laminating, die-cutting, sheet-cutting, conveying, and paper receiving from the tube
