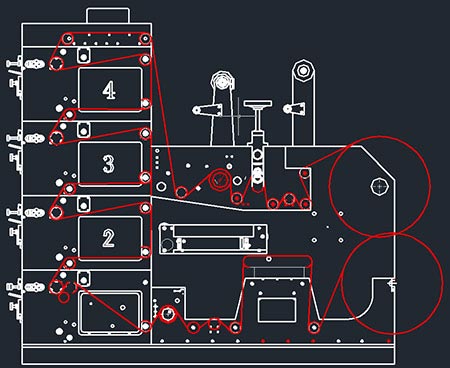

RY320-4 color flexo printing machine
Product description
This 4-color flexographic printing machine integrates printing, peritoneal, die-cutting and one flexographic printing machine. Reasonable simple design structure, reliable quality and affordable price guarantee its uniqueness. It also removes complicated post-press processing, can greatly save production time and cost, and avoid secondary damage. This machine is simple to operate, easy to use and other powerful functions, which is the most ideal for small and medium-sized enterprises, especially customers who have low printing requirements.
Features
1. Use ceramic anilox roller to transfer ink.
2. Each printing unit adopts 360° circumferential registration adjustment
3. This machine is equipped with a slitting function, which allows product printing, die cutting, and slitting to be completed at one time
4. The computer correction device is located in front of the printing group. This design keeps the roll paper in the correct left and right positions during the entire production process. (Standard configuration)
5. A slitting blade can be added to control the size of the sub-roll according to user needs.
6. Unwinding and rewinding are controlled by magnetic powder automatic tension, and double rewinding can be added.
7. A still picture monitoring system can be selected according to user needs to monitor the quality of the picture during high-speed printing.
8. The ink roller can be detached automatically when parking, and run at low speed to prevent ink from drying out.
9. The main motor adopts imported frequency conversion stepless speed regulation.
10. It can be completed at one time from tube feeding, printing, glazing, automatic infrared drying, laminating, die cutting, rewinding or sheet cutting. It is the most ideal model for printing commercial bills and high-end stickers for various printing plants.
Technical parameter
|
Printing speed: |
50m-60m/min |
Voltage: |
380V±10% |
|
Printing colors: |
4 colors |
Total power: |
about15kw |
|
Feeding width: |
320mm |
Total air pressure: |
0.6MP |
|
Maximum unwinding diameter: |
600mm |
Lubrication system: |
Artificial |
|
Maximum winding diameter: |
600mm |
weight: |
1500kg |
|
Maximum printing size: |
175-370mm |
Dimensions: |
2400mmX1200mmX2250mm |
|
Overprint accuracy: |
±0.15mm |
|
|
The above technical parameters and pictures are for reference only, the actual product shall prevail
