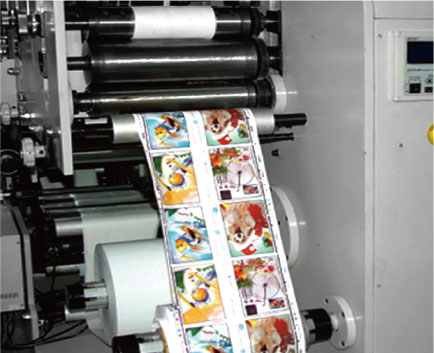

ZBS-320G Rotary Label Die Cutting Machine with Flexo Printing
1.Adopt the ceramic anilox cylinder to transfer the ink.
2.Each printing unit adopts 360° plate-adjustment.

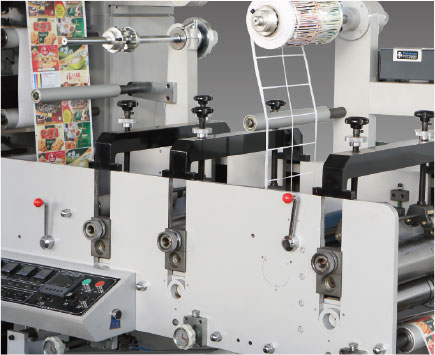

3.Three die-cutting stations, the first and second die-cutting station can do double sides working, the third die-cutting station can be used as sheeter.
Main Features
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Each printing unit adopts 360° plate-adjustment.
3. Three die-cutting stations, the first and second die-cutting station can do double sides working, the third die-cutting station can be used as sheeter.

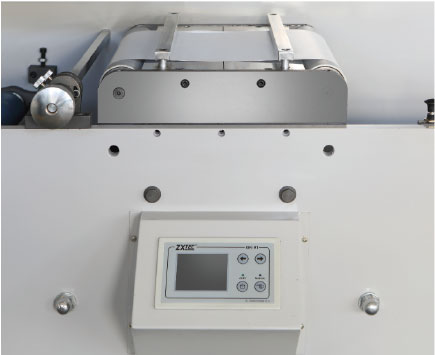

4. Computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position. (standard configuration)
5. After sheeting in the third die-cutting station, conveyor belt can output the products orderly. (option)
6. Unwinding and rewinding tension are auto-controlled by magnetic powder, two rewinders is possible in this machine.
7. Video inspecting system is an option, it can watch the printing quality when in high speed.
8. The ink rollers will be separated from the printing roller, and keep running when the machine stops.
9. Main motor use inverter to adjust stepless speed.
10.The machine can finish material-feeding, printing, varnishing, drying, laminating, die-cutting, rewinding sheeter in a lump.It is an ideal machine for printing adhesive labels.
Main Technical Parameters
|
Model |
ZBS-320G |
|
Printing Speed |
60 (m/Min） |
|
Printing Color |
1-6 (colors） |
|
Max. Web Width |
320mm |
|
Max. Printing Width |
310mm |
|
Max. Unwinding Diameter |
650mm |
|
Max. Rewinding Diameter |
650mm |
|
Printing Length |
177.8-355.6mm 222.25-539.25mm（Options） |
|
Precision of Chromatography |
±0.1mm |
|
Dimensions (L×W×H) |
2600x1100x2600mm |
|
Machine Weight |
(About)3350KGS |
 |
 |
 |
|
Unwinding and Rewinding Tenstion are Auto-controlled by Magnetic Powder |
Web-guider | Three Rotary Die-cutting Stations |

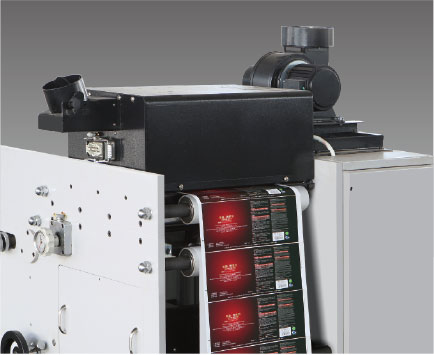

* UV Dryer System

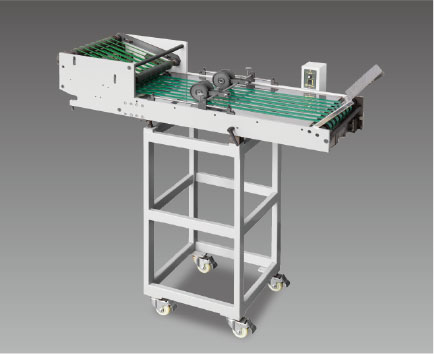

* Sheeter Conveyer
