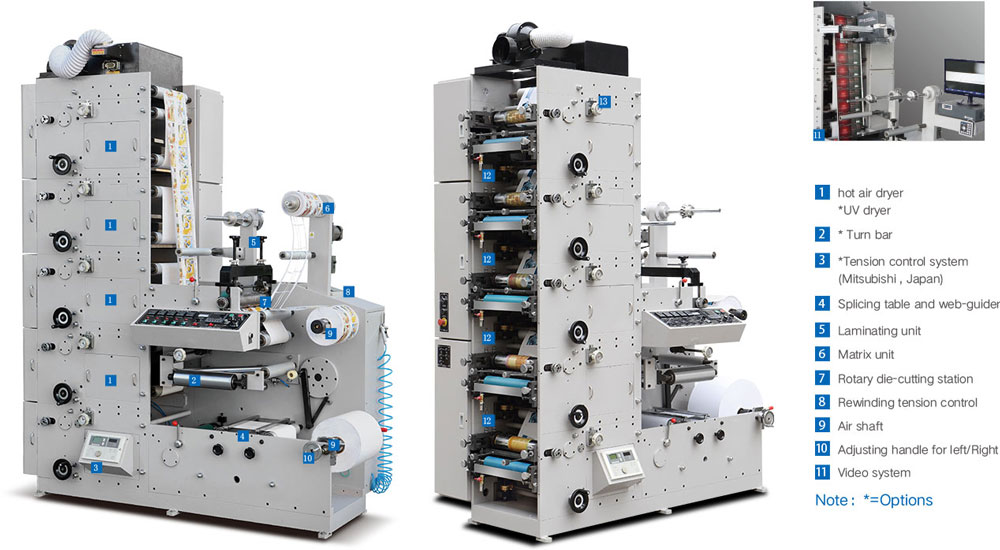

RY-320 Five-Color Multifunctional Sticker Label Flexo Printing Machine
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3.Each printing unit adopts 360°plate adjustment.
4.Each printing unit equips with hot air dryer.
5.This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
can be with computer quality checking system and slitting funcation
Main Features
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3. Each printing unit adopts 360°plate adjustment.
4. Each printing unit equips with hot air dryer.
5. This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.
Main Technical Parameters
|
Model |
RY-320 |
|
Printing Speed |
60（M/Min） |
|
Printing Color |
1-6（Colors） |
|
Max. Web Width |
320mm |
|
Max. Printing Width |
310mm |
|
Max. Unwinding Diameter |
600mm |
|
Max. Rewinding Diameter |
600mm |
|
Printing Length |
177.8-355.6mm 222.25-539.25mm（Options） |
|
Precision of Chromatography |
±0.1mm |
|
Dimensions(L×W×H) |
2000x1100x2600mm |
|
Machine Weight |
(About) 2150KGS |
Superb Print Quality And
Excellent Performance Ratio
