Square Bottom Paper Bag Making Machine With PP Clear Window
Product Description
This paper bag making machine is used to produce the square bottom paper bags, food paper bags with the window, the raw materials are the primary color paper roll or printed paper roll. It from the paper roll loading, automatic web guiding, window film, side glue, forming, paper cutting, bottom opening, bottom gluing, bottom folding and finish product out of the bag. It adopts the Japanese imported servo system combined with the man-machine interface, so stable performance and easy operation are the advantages.
Machine Parameters
| Model | FD220-W | FD280-W | FD330-W | FD450-W | FD540-W |
| Bag Tube Length | 190-370mm | 270-530mm | 270-530mm | 270-530mm | 400-770mm |
| Bag Length | 150-320mm | 225-470mm | 225-470mm | 210-460mm | 320-680mm |
| Bag Width | 80-220mm | 120-280mm | 150-330mm | 220-450mm | 250-540mm |
| Side Insert Depth | 25-60mm | 30-90mm | 30-90mm | 40-110mm | 60-130mm |
| Bottom Width | 50-120mm | 60-180mm | 60-180mm | 80-220mm | 120-260mm |
| Side Edge Width | 20-30mm | 20-30mm | 25-30mm | 25-30mm | 30mm |
| Bottom Edge Width | 10-25mm | 15-30mm | 15-30mm | 20-30mm | 20-30mm |
| Paper Thickness | 50-130g/㎡ | 60-160g/㎡ | 60-160g/㎡ | 80-160g/㎡ | 90-160g/㎡ |
| Paper Inner Core Diameter |
ᴓ76mm(3”) | ||||
| Paper Roll Diameter | ᴓ1200mm | ||||
| Paper Roll Width | 280-710mm | 380-950mm | 450-1050mm | 630-1370mm | 770-1630mm |
| Bag Making Speed | 30-200pcs/min | 30-180pcs/min | 30-160pcs/min | 30-150pcs/min | 30-120pcs/min |
| Air Source | ≥0.12m³/m 0.6Mpa | ||||
| Power Supply | 10kw | 12kw | 12kw | 15kw | 18kw |
| Machine Weight | 5500kgs | 7000kgs | 8000kgs | 10000kgs | 11500kgs |
| Machine Dimension | 9000X3200X1800mm | 10500X3600X1900mm | 10500X3700X1900mm | 10500X3800X1900mm | 11500X3900X1900mm |
| Width Of The Hole | 50-160mm | 50-160mm | 50-160mm | 50-160mm | 50-160mm |
Machine Details

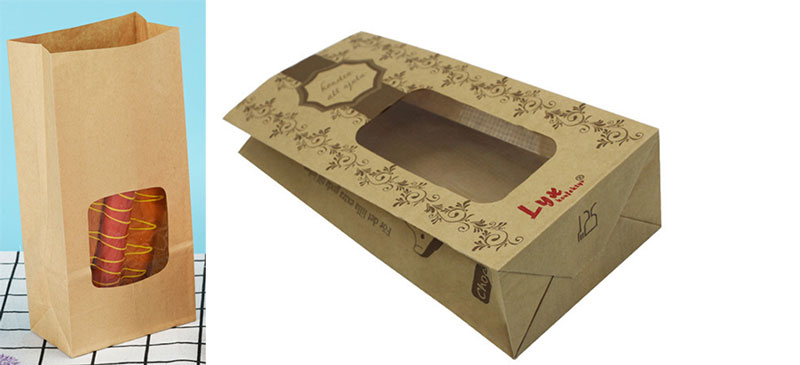

Samples
If you are looking for a paper bag making machine to be supplied? The machine should be able to produce high-quality paper bags with consistent performance? If you are interested in a machine that is easy to operate and maintain, with a compact design for space-saving. The machine should also be energy-efficient and able to handle a high volume of production? If you are looking for a reliable supplier who can provide you with a competitive quote?If you want paper raw material also？
