Square Bottom Paper Bag Making Machine With Printing
Product Description
Square bottom paper bag making machine with 2 colors printing inline is used in the production of paper bags with paper roll as raw materials. This machine is equipped with new technology to complete the paper bags by loading materials, printing, gluing, forming, cutting, bottom opening, bottom gluing and fold the bottom. The whole machine is controlled by the Mitsubishi servo motor control system which import from Japan with high accuracy and stability. Thus, it is an ideal equipment for various printing plants and paper bag manufacturers.
Machine Parameters
| Model | FD220 | FD280 | FD330 | FD450 | FD540 |
| Bag Tube Length | 190-370mm | 270-530mm | 270-530mm | 270-530mm | 400-770mm |
| Bag Length | 150-320mm | 225-470mm | 225-470mm | 210-460mm | 320-680mm |
| Bag Width | 80-220mm | 120-280mm | 150-330mm | 220-450mm | 250-540mm |
| Side Insert Depth | 25-60mm | 30-90mm | 30-90mm | 40-110mm | 60-130mm |
| Bottom Width | 50-120mm | 60-180mm | 60-180mm | 80-220mm | 120-260mm |
| Side Edge Width | 20-30mm | 20-30mm | 25-30mm | 25-30mm | 30mm |
| Bottom Edge Width | 10-25mm | 15-30mm | 15-30mm | 20-30mm | 20-30mm |
| Paper Thickness | 50-130g/㎡ | 60-160g/㎡ | 60-160g/㎡ | 80-160g/㎡ | 90-160g/㎡ |
| Paper Inner Core Diameter | ᴓ76mm(3”) | ||||
| Paper Roll Diameter | ᴓ1200mm | ||||
| Paper Roll Width | 280-710mm | 380-950mm | 450-1050mm | 630-1370mm | 770-1630mm |
| Bag Making Speed | 30-200pcs/min | 30-180pcs/min | 30-160pcs/min | 30-150pcs/min | 30-120pcs/min |
| Air Source | ≥0.12m³/m 0.6Mpa | ||||
| Power Supply | 10kw | 12kw | 12kw | 15kw | 18kw |
| Machine Weight | 5500kgs | 7000kgs | 8000kgs | 10000kgs | 11500kgs |
| Machine Dimension | 9000X3200X1800mm | 10500X3600X1900mm | 10500X3700X1900mm | 10500X3800X1900mm | 11500X3900X1900mm |
Printing Machine Parameter
| TYPE | YT-2800 | YT-21000 | YT-21200 | YT-41400 |
| Max. Printing material width | 800mm | 1000mm | 1200mm | 1400mm |
| Max. Printing width | 760mm | 960mm | 1160mm | 1360mm |
| Printing length range | 230-800mm | 230-800mm | 230-800mm | 230-800mm |
| Printing speed | 5-100m∕min | 5-100m∕min | 5-100m∕min | 5-100m∕min |
| Register precision | ≤±0.20mm | ≤±0.20mm | ≤±0.20mm | ≤±0.20mm |
| Thickness of plate （including the thickness of double sides glue） |
2.28mm | 2.28mm | 2.28mm | 2.28mm |
Machine Details
Producing Process

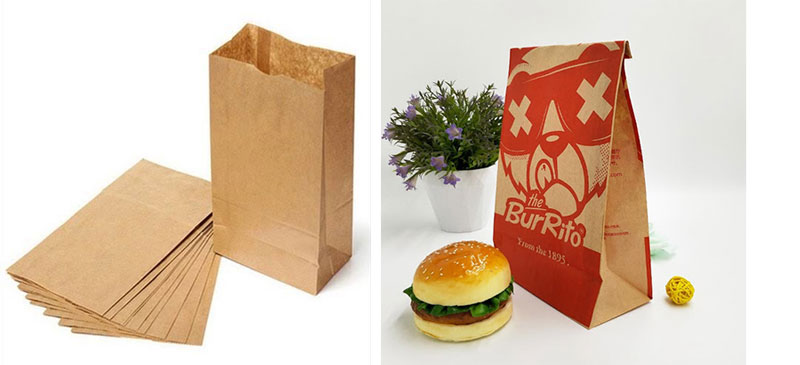

Samples
