D Cut handle Brown paper bag making machine
Product Description
D Cut Paper Bag Machine
D Cut Paper Bag Machine is built to produce Die cut handle paper bags with the original paper rolls or printed paper rolls as material. It can produce the square bottom paper bags with D cut handle in one time with the process: paper roll feeding, D cut mouth shape piercings, side gluing, forming, cutting, bottom gluing and delivery bags. If customer want to produce the square bottom paper bags without D cut handle is also easy operate, just stop the handle function. It is an ideal equipment to produce carry paper bags for shopping mall and market.
Machine Parameters
| Model | FD220-D | FD280-D | FD330-D | FD450-D | FD540-D |
| Bag Tube Length | 190-370mm | 270-530mm | 270-530mm | 270-530mm | 400-770mm |
| Bag Length | 150-320mm | 225-470mm | 225-470mm | 210-460mm | 320-680mm |
| Bag Width | 80-220mm | 120-280mm | 150-330mm | 220-450mm | 250-540mm |
| Side Insert Depth | 25-60mm | 30-90mm | 30-90mm | 40-110mm | 60-130mm |
| Bottom Width | 50-120mm | 60-180mm | 60-180mm | 80-220mm | 120-260mm |
| Side Edge Width | 20-30mm | 20-30mm | 25-30mm | 25-30mm | 30mm |
| Bottom Edge Width | 10-25mm | 15-30mm | 15-30mm | 20-30mm | 20-30mm |
| Paper Thickness | 50-130g/㎡ | 60-160g/㎡ | 60-160g/㎡ | 80-160g/㎡ | 90-160g/㎡ |
| Paper Inner Core Diameter | ᴓ76mm(3”) | ||||
| Paper Roll Diameter | ᴓ1200mm | ||||
| Paper Roll Width | 280-710mm | 380-950mm | 450-1050mm | 630-1370mm | 770-1630mm |
| Bag Making Speed | 30-200pcs/min | 30-180pcs/min | 30-160pcs/min | 30-150pcs/min | 30-120pcs/min |
| Air Source | ≥0.12m³/m 0.6Mpa | ||||
| Power Supply | 10kw | 12kw | 12kw | 15kw | 18kw |
| Machine Weight | 5500kgs | 7000kgs | 8000kgs | 10000kgs | 11500kgs |
| Machine Dimension | 9000X3200X1800mm | 10500X3600X1900mm | 10500X3700X1900mm | 10500X3800X1900mm | 11500X3900X1900mm |
| D Cut Size | 80-90mmx30mm | ||||
| Patch Film Thickness | 0.3-0.6mm | ||||

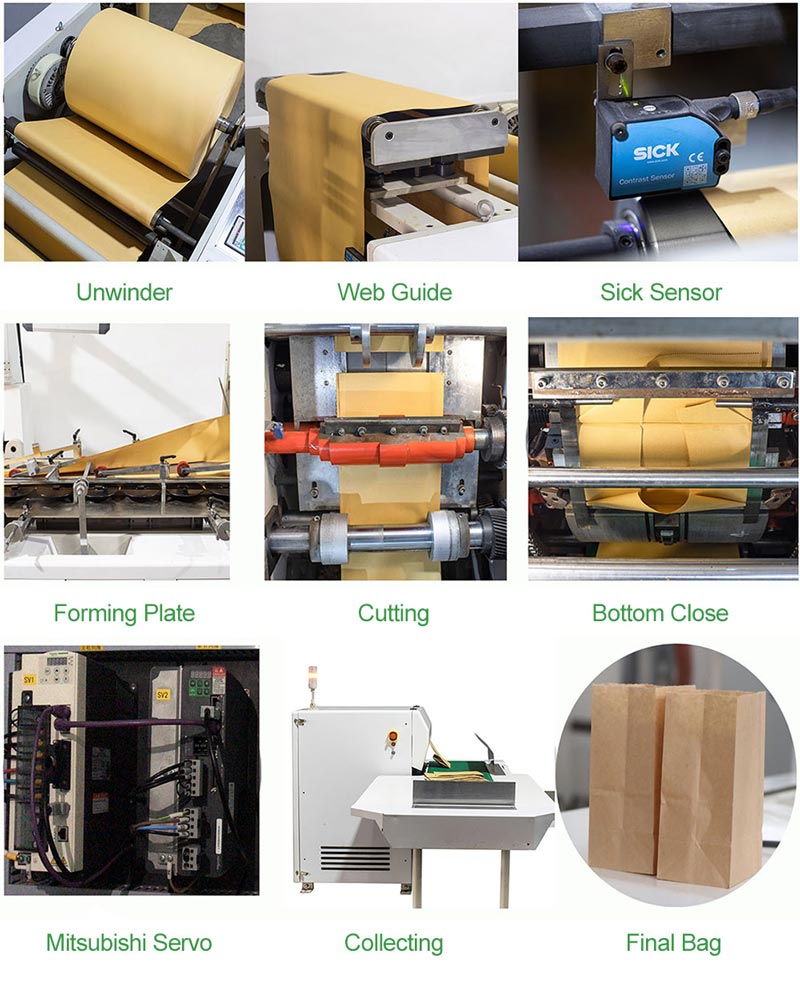

Machine Details

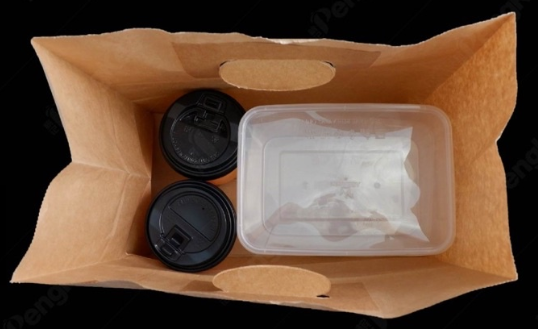

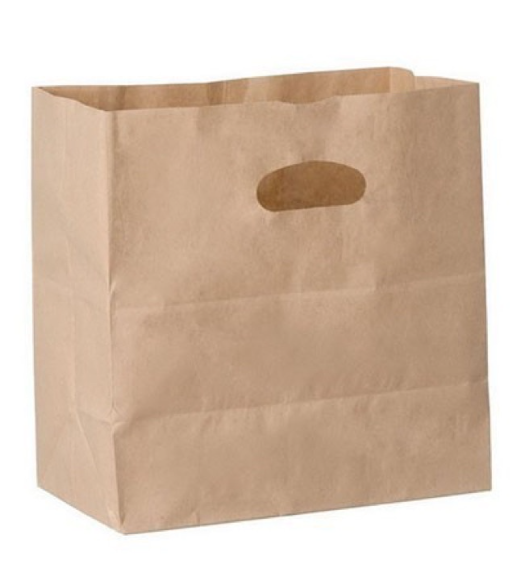

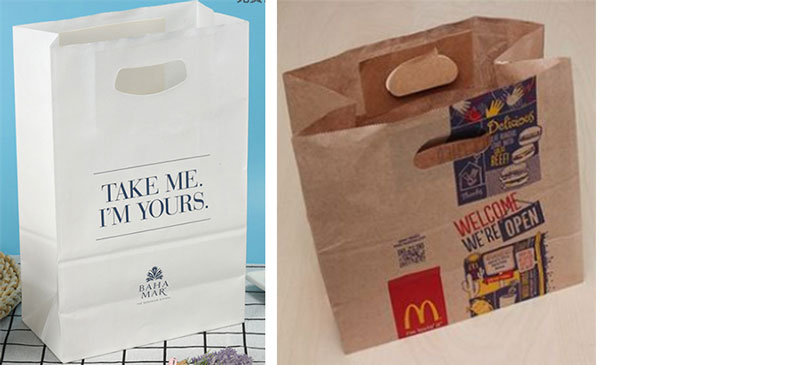

Samples
