Fully Automatic Flat Handle Shopping Paper Bag Machine
Product Description
This is the paper bag making machine with the flat handle inline to produce the square bottom paper bags with the flat handle in one step. It is fully automatic and can produce different sizes paper bag and paste paper handle inline for shopping paper bags without any manual process. This machine forms the paper bag through the paper roll, handle patching, side gluing, tube forming & cutting off, bottom creasing, bottom opening, bottom gluing and forming to bags collection. The whole machine is controlled by servo motors to ensure the high precision and stability, it has the advantages of simple maintenance and high efficiency. So it is an ideal equipment for paper bag manufacturers to produce the shopping paper bags.
Machine Parameters
| Model | FD-330F | FD-450F | FD-540F |
| Paper Bag Width | 220-330mm | 240-450mm | 240-540mm |
| Paper Bag Cutting Length | 270-430mm | 270-430mm | 380-660mm |
| Paper Bag Bottom Width | 60-180mm | 90-180mmm | 80-220mm |
| Paper Thickness | 80-150gsm | 80-150gsm | 80-150gsm |
| Machine Speed | 30-110pcs/min | 30-90pcs/min | 30-90pcs/min |
| Paper Roll Width | 570-1050mm | 690-1290mm | 670-1550mm |
| Paper Roll Diameter | 1200mm | 1200mm | 1200mm |
Production Process

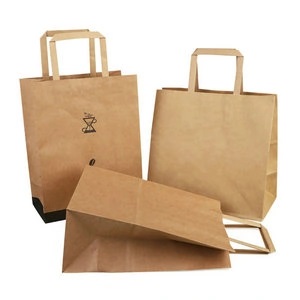

Paper Bag Samples
