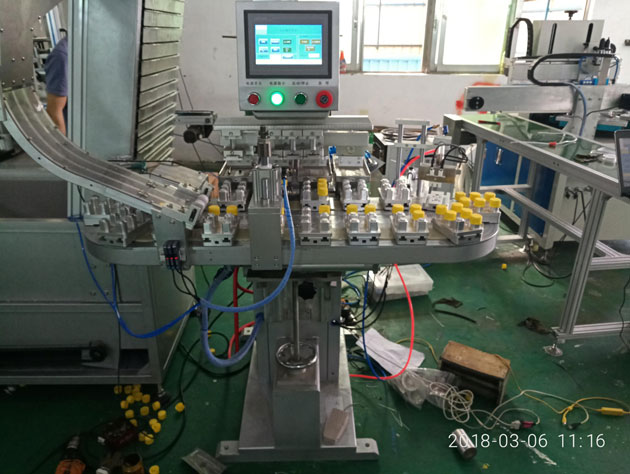

HY-PG2 Two-Color Fully Automatic Bottle Cap Printing Machine

Service Online:

Request a Quote

Product Description

This machine adopts a fully automatic printing method, terraced loading and unloading, automatic loading and positioning, flame treatment surface, two-color printing, and finally automatic unloading by an oven drying robot. This machine uses Mitsubishi PLC and Taiwanese pneumatic components, with 1 out of 12 high-speed printing speeds up to 10,000 pieces per hour.

HY-PG 2 two-color fully automatic bottle cap printing press function description

1. Unique terraced feeding system; high-speed and stability

2. Automatic feeding, automatic pressing device

3. Pre-press processing device greatly improves printing quality and ink adsorption capacity

4. Free switching of monochrome and multi-color automatic printing methods

5. Auto dry device

6. Automatic download device

7. PLC control, man-machine touch system display

8. Imported pneumatic components

9. 12P at one time

Model：HY-PG2

Print area：50*100mm

Speed：7000-10000pcs

Weight：450KG

Size：1800*1650*1800mm

Voltage：220V

Power：2.5KW

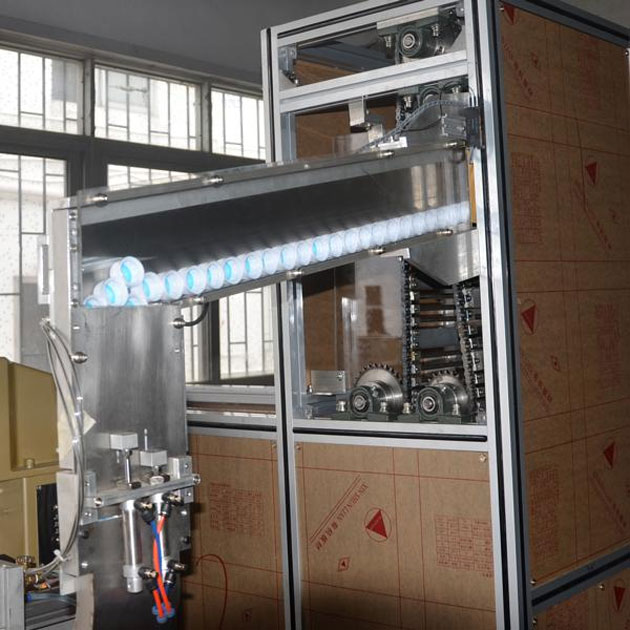

High speed upload device

Automatic 3 lines upload device, high speed; Optical fiber checking system

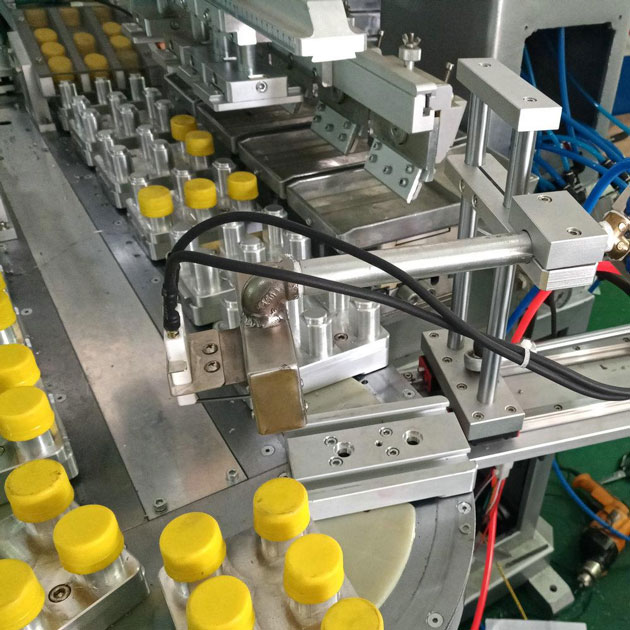

Automatic feeding and pressing device

Automatic feeding, with pressing manipulator, ensures that the product is firmly positioned on the fixture.

Ensure printing uniformity.

Flame treating

Flame treatment before printing can greatly improve the adsorption capacity of ink in the evaluation products, and lay a solid foundation for excellent printing effect;

Frame treating before printing, highly improve the printing quality;

Plasma surface treatment (optional)

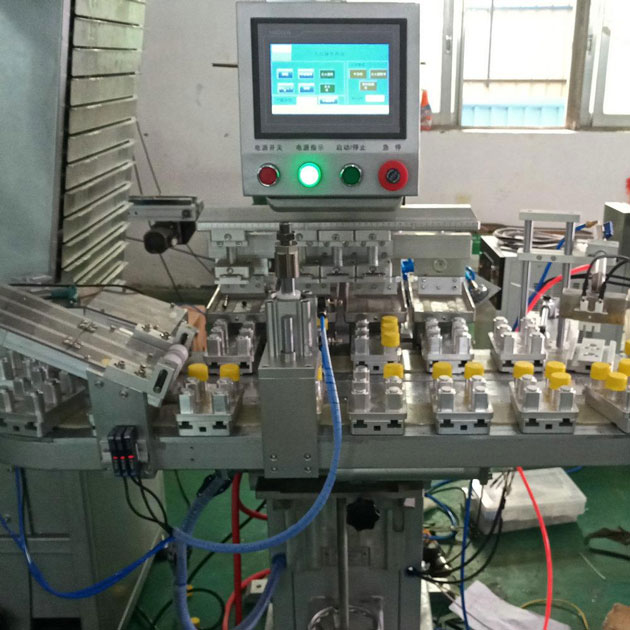

PLC Control system, human-touch interface device

PLC programming system, touch screen operation, simple and easy to use, at the same time with fault reminder function, can clearly know the fault source, easy to maintain;
