Medical Surgical Glove Inner Packaging Machine

Service Online:

Request a Quote

Product Introduction

The inner packaging machine consists of two packers to put gloves on the mold, and then the machine automatically picks up the gloves for packaging.

The operating speed ranges from 20 to 30 pairs per minute and can be set according to the proficiency of the packers.

The inner packaging machine is composed of a winding mechanism, floating rod, traction, cutting knife, paper shifting, left and right folding (one folding), paper clamping shaft, glove frame, curved knife shaft, straight knife shaft (three folding), flat bag feeding and pushing mechanism.

Packaging machine workflow

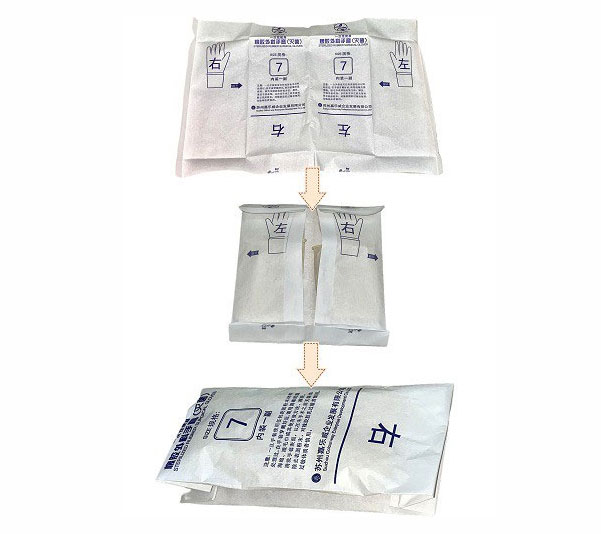

The operator puts the packaging paper on the reel rack, and then pulls the unrolled paper through a set of floating sticks, which are inserted into the traction stick. The traction stick pulls the fixed (configurable) length of paper each time for cutting, and then carries the cut paper to the left and right fold by the paper transfer shaft (aka: one folding). The glove is placed on the paper for left and right folding. After the left and right folding is completed, the glove is placed on the working position of the cubit by the paper clamping shaft for up and down folding and middle folding. After the folding is completed, the packaging bag is transported to the discharge tank by the flat bag conveying bag, and then the pushing cylinder pushes the packaging bag to the finished product tank by the worker.

Main Technical Parameters

Power	single-phase 220V±10%, 50Hz
Maximum power (KW)	4
Outside dimensions (L×W×H)	3085×2642×1946
Production speed (boxs/min)	20-30.5
Packing paper size (g/per square)	>=38g
Unrolled paper width	>=410mm
Controller brand	OMRON

Application

1. Glove production link: the application of glove inner wrapping machine in the production line can realize the automatic packing process and improve the production efficiency. Once the gloves come out from the production line, the machine will automatically put the right and left hand gloves separately and pack them.

2. Glove sales link: In the glove sales link, the glove in-wrapping machine can be used for glove packing work in stores or warehouses. The store owner or staff just need to put the gloves into the machine, it will automatically recognize the right and left hand gloves and pack them separately.

3. Improve efficiency: The automation feature of the glove wrapping machine can significantly improve the packing efficiency and reduce the manual operation time, thus saving the labor cost and improving the overall capacity of the production line.

4. Maintaining hygiene and tidiness: The automatic packing process of the machine can ensure that the gloves are packed neatly and hygienically, avoiding contamination and clutter caused by human operation.

5. Enhance user experience: For glove sellers, the use of glove in-wrapping machine can enhance the user experience. Buyers can get neatly packaged gloves, which gives them a professional and caring feeling.
