Plastic Flowerpot Printing Machine
Plastic flower pot printing machine

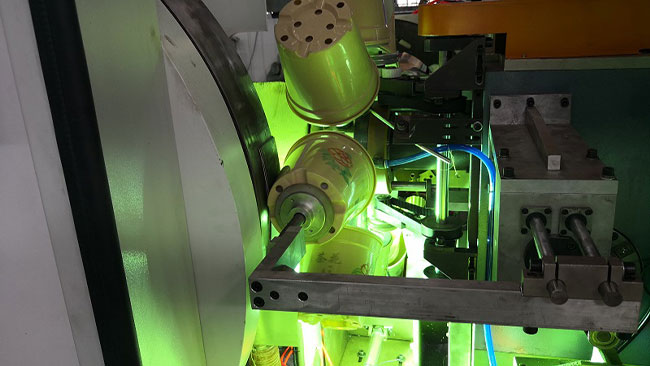

Six-color offset printing machine. This machine is letterpress printing. It is mainly suitable for surface printing of plastic flower pots. The speed can reach 15,000/hour.
Features
1. It is equipped with a lifting cup conveying buffer to facilitate cup compensation, which solves the problem that traditional conveyor belts are prone to failure due to the excessive arc of the conveyor belt and tall cups.
2. It is equipped with four screws to enter the cup, and the self-locking axis links the four screws to adjust the screw position.
3. Equipped with automatic detection of no basin, double basin, whether the basin cover is in place, and whether there are pinholes in the cup opening.
4. Equipped with 2 sets of front pressure corona surface treatment systems with pinhole detection (4 sets of surface treatment devices). The power of the corona increases or decreases with the speed of the machine. It is so large that the surface treatment will not damage the basin at low speeds, and there is enough power for surface treatment at high speeds.
5. Equipped with a synchronous cup top device to reduce the pattern displacement of the basin during printing.
6. Equipped with a defective product processing system
7. Equipped with a four-screw 45-degree cup stacking device, using a self-locking one-axis linkage four-screw to adjust the screw position; the spiral 45-degree cup stacking can not only stack cups with a diameter smaller than the height, but also large bowls with a diameter larger than the height.
8. Eight printing molds are driven by a rubber wheel to keep the printing mold in contact with the rubber wheel. Compared with independent rubber wheel driving of printing molds, hundreds of impacts per minute are reduced, so the life of eight molds driven by one rubber wheel will be longer.
9. The PLC automatically limits the speed of the machine according to the weight of the input printing mold to ensure that the machine is not damaged.

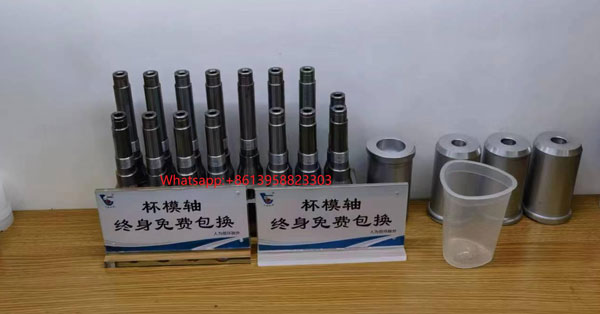

10. Printing mold design, fast replacement.
11. The ink unit can be opened at 80 degrees, and the double rubber rollers contact the printing plate at the same time to transfer the ink, improving the printing effect and avoiding poor printing due to damage to the rubber roller surface; all rollers and ink fountains are designed for quick disassembly and assembly, and easy replacement and cleaning.
12. Automatically detect fault information of automatic systems, UV systems, corona systems, and entire machine sensors.
13. The printing plate is equipped with an automatic positioning punch.
14. Equipped with automatic counting, accurate counting.
