Plastic Cup Thermoforming Machine
Product Description
Hydraulic plastic thermoforming machine
Main machine parts:
1. The frame is welded with standard 100×100, 100×50, 10# and steel plates.The whole steel plate is laid on the bottom of the machine to improve the stability of the whole machine.
2. Mold movement ( Closed / Open) adopts Hydraulic system to control.
3. Oil pump motor adopts 11kw WNM BRAND MOTOR. 380V, 50HZ 3 Phase.
4. Main Pneumatic components use Japan SMC original solenoid valve,it is more stable.
5. Feeding Sheet device adopts 3.7 kw to control.
6. Plug device adopts 160*180 cylinder.
7. The lubrication system adopts automatic lubrication device, positive displacement oil, stable and efficient, and can be monitored in real time.
8. The chain adopts combined structure,with cooling device, the width can be automatic adjust.
9. Heating system: Adopts Jiangsu brand infrared heater 650/ 800W. Stainless up Down heating. Upper 8×10, Down 8×9.Heating oven can go in/ out.
10. Air source filter adopts triad air source filter air flow size adjustable.
11. 4 guide pillar Φ 80 mm.It is made of 45 # steel after tempering after fine grinding hard chromium plating surface.
Main Technical parameter
|
Max forming area |
720*350mm |
|
Max forming depth |
180mm |
|
Material |
PP PS PET HIPS |
|
Sheet thickness |
0.25-2.5mm |
|
Sheet width |
550-730mm |
|
Max speed |
30 cycles/min |
|
Air pressure |
0.6-0.8Mpa |
|
Power supply |
380V, 50HZ |
|
Rated power |
140kw |
|
Heating power |
110kw |
|
Dimensions |
4000*1600*2500mm |
|
Weight |
6T |

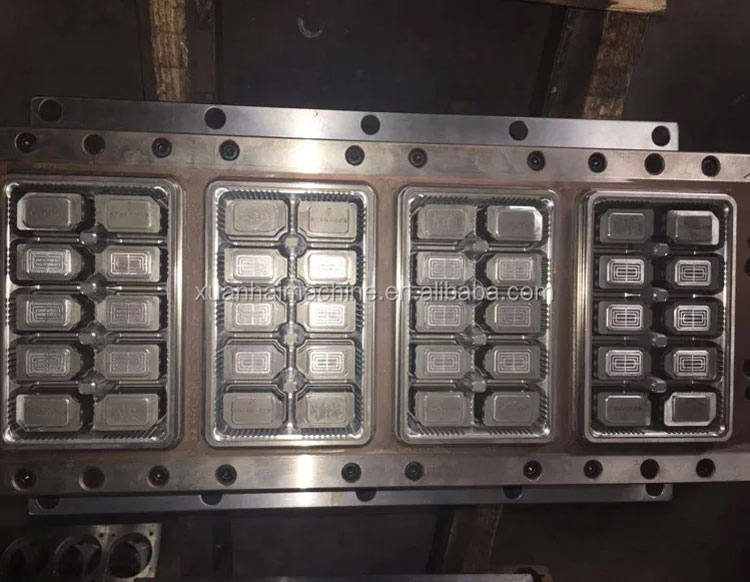

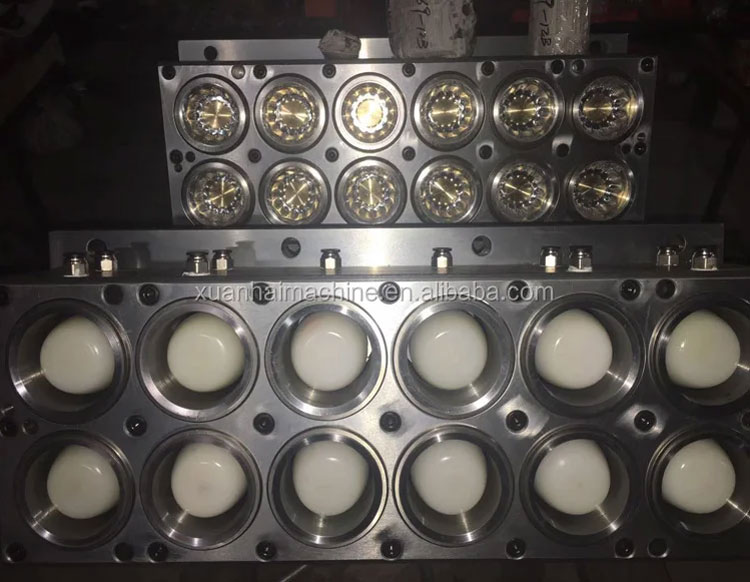

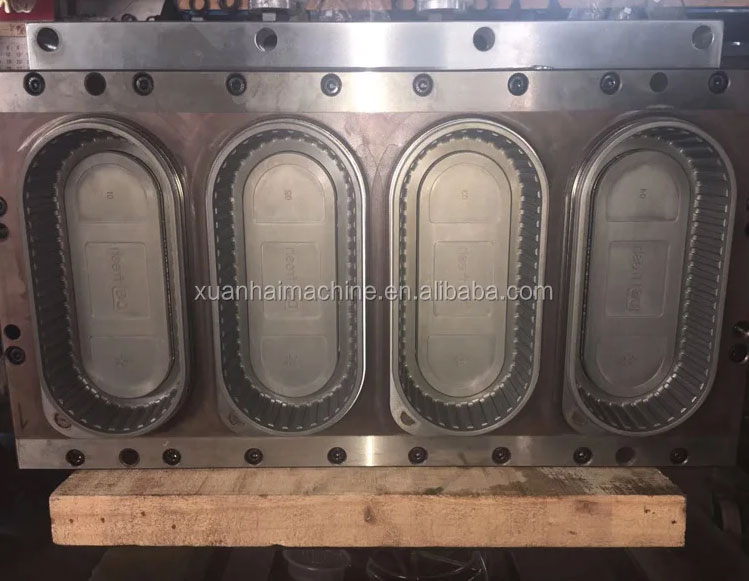

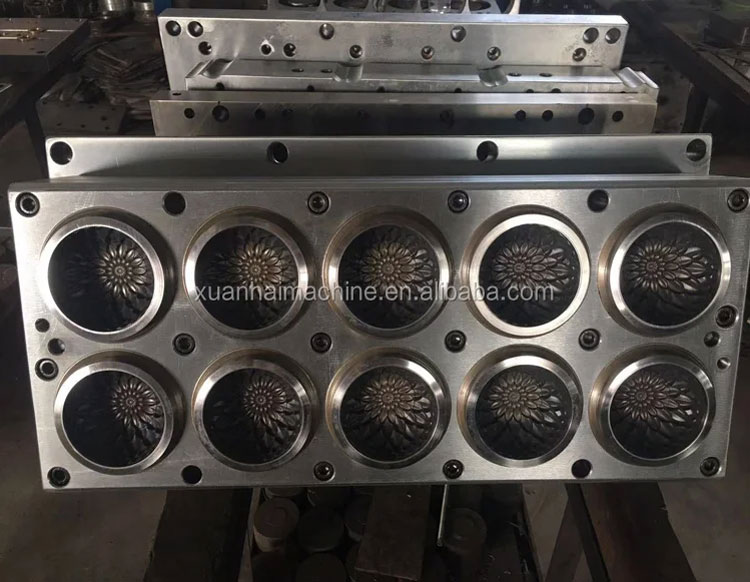

Details Images
