Plastic Lollipop Stick Making Machine
Product Description
The machine makes straight straw from pp. It is composed of extruder and die, cooling unit, vacuum calibration, haul-off and rotary cutter. All the machine's controls based with the control elements are ergonomically adapted to permit easy operation. The machine is suitable for extruding straws, sign pen leads, refill tubes and most small diameter tubing and a wide range of industrial applications.
Range of application

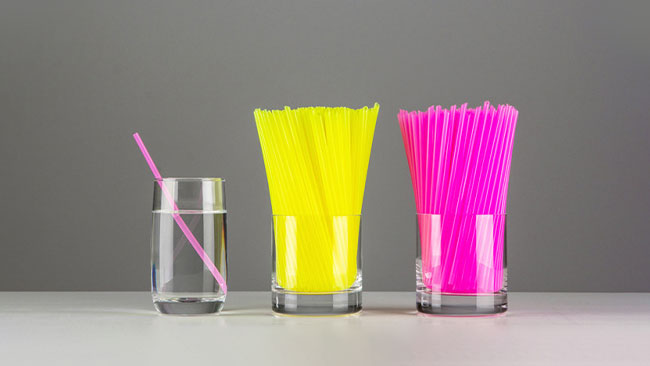

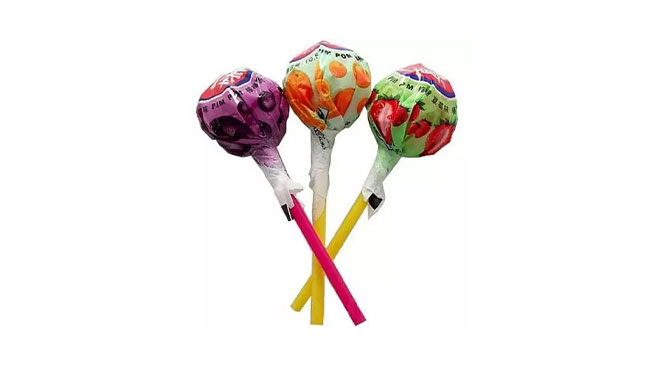

Food industry : drinking straw , candy stick , coffee stick,cotton bud stick,lollipop stick.etc
Other industrial fileds : pen refill , medical pipe , small diameter tube .etc
Main composed
Part 1: Screw sending machine (stretching part)
Main screw size :50mm,L/D: 26:1 1Set
Motor power: 11kw by inverter control
Heat power: 14kw
Machine size: 2.5*1.2*1.3m
Part 2: Cool water tank (cooling part)
Water tank length: 3.5m
Size:6.5*0.6*1.1m
Part 3: Taking up and cutting machine (cutter part)
Motor power: 2*0.75kw by inverter control
Machine size : 1.4*0.7*1.2m
Part 4: gathering machine
Size :2.0*0.5*1.5M
TOTAL LAND NEED SIZE: 15M length X 2M width X 2M height
Features
Materials: PP, PE
Diameter (mm): 2 – 12mm(the diameter of tube within 12 mm that all can be make by change mould)
Length (mm): 5 - 1,000 (can be adjust)
Production capacity: 20 --- 25kg/h
Line speed: max. 250m/min
Sample: single color (one color)
