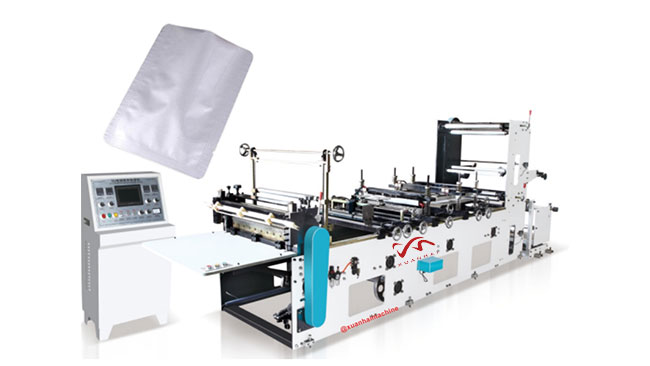

Three Side Sealing Bag Making Machine
Product Description

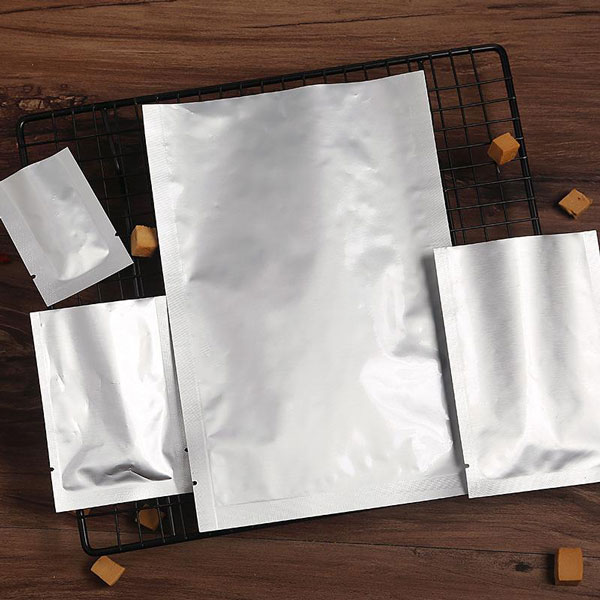

This three side sealing bag making machine is special designed to make non printing or one side printing aluminum foil bag. Cheap cost machine,nice aluminum bag.pupular used for Packaging bag of facial mask,food vacumm packing bag
Three-side sealing (also known as sealing and cutting machine) is suitable for automatic bottom sealing and cutting of flexible packaging composite bags. The machine adopts microcomputer automatic control, frequency conversion speed regulation, photoelectric tracking, bags counting, automatic temperature control, high parking, and four-ironing sealing. Strong sealing, and flatness. (Hole puncher and easy tear opening, single film roll feeding device can be added according to user requirements).
Technical parameters
Model No.: SBF 500
1.Max bag width: 500MM
2.Max bag length: 500MM
3. Motor (Shanghai): 2.2KW
4.Machine speed: 100pcs/min
5.Machine size: 3.8*1.2*1.8M
6.Machine weight: 1500KG
Machine Configuration
|
Mechanical part |
Electrical part |
|
1. Unwinding part: Unwinding using drogue manually lock fixed |
1. Host frequency control (2.2kw ,Hualan) |
|
2.Frame: Using a 10mm steel structure |
2. Feeding by stepping motor (WUXI Songyang) 1pc |
|
3. Knife block of crosscut: Using a casting structure |
3. Traction uses 400W DC (Wuxi,China) 2pcs |
|
4. Cross-cutting knife: Chinese brand knife |
4. Photoelectric tracking device (Zhejiang Julong) |
|
5. Drive shaft: Using a rubber shaft slot 6. Hot knife: Using copper knives（2 pcs hot cross cutting knife，2 pcs hot vertical knife） |
5. Independent computer control cabinet: Automatic counting, automatic alarms, automatic shutdown |
|
7. Feeding traction: Rubber traction motor drives the drive pulley shaft (Two traction rubber roller and two rack) |
6. touch screen control |
