Plastic Garbage Bag Making Machine Advantages

Automated production equipment, is easy to operate and reduces the use of labor.

This automatic garbage bag making machine can be used to produce various types of trash bags, such as continuous roll vest type, continuous roll flat mouth type, cored, coreless and other types of trash bags.

It adopts photoelectric tracking to automatically control feeding, an automatic constant temperature control device, and automatic counting, and an alarm device is installed.

The whole process is controlled by a computer, which can automatically control and adjust the bag length and production speed.

Garbage bag roll making machines can be used with bag making equipment such as film-blowing machines and printing machines.

When the film supply is blocked or the bag is jammed, the machine stops automatically.

Main technical parameters

Model

1220C-AR

Producing length

400-1500mm

Producing width

1100mm

Max Rewinding width

370mm (recommend max to 350mm,more easy control)

Max.Producing speed

60m/min

Total power

8kw

Film of thickness

0.01-0.08mm

Max. dia. For one roll bag

150mm

Max. unwinding dia.

700mm

Weight

2500kgs

Overall size

7250x2100x2300mm

This rolling garbage bag making machine is for big width rolling bag,can add auto labelling fucation





Main allocation

item

brand

details

remark

Main machine inverter

Delta inverter

MS series

1.5KW

1pc

Feeder motor

Delta inverter

MS series

0.75KW

1pc

Winding motor

Delta inverter

MS series

0.75KW

1pc

Folding motor

Delta inverter

MS series

0.75kw

1pc

Reverse turning motor

Delta inverter

MS series

0.75KW

1pc

Rewinding motor

Delta inverter

MS series

0.75kw

2pcs

Length fixed motor

FUJI servo motor

3KW

1pc

Controller

Hangzhou risheng

Touch screen

1pc

Main motor

Made in China

1.1KW

1PC

Sealing blade

Cooper materials



1set

Cutting knife

Steel



1set

Folding online

Double folding



1set

Unwinder

Auto loader by air cylinder,with power break



1set

Static system





1set

Electric part and switch

schneider





Temputure controller

Omron





The garbage bag making machine is the general term for all trash bag making equipment. Since the garbage bags made are usually in roll type, this equipment is also called a garbage bag roll making machine. Ruian Xuanhai Machine provides a variety of garbage bag-making equipment and plastic film making machines, which can meet the needs of different customers. If you want to make garbage bags, please send us your garbage bag styles, and we will recommend suitable machines for you.

Finished Product Display

Garbage bags come in a variety of styles, including rolls with cores, rolls without cores, flat bags, vest bags, 20-fold bags, and double-fold bags. Here are some trash bag styles, check them out.

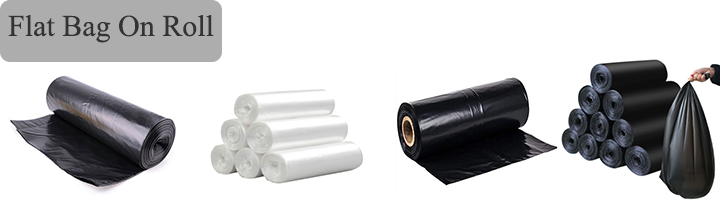

Ordinary Garbage On Roll

Ordinary Garbage On Roll

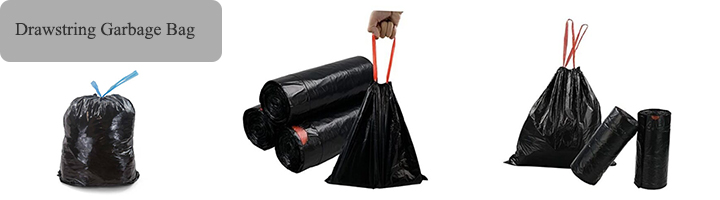

Drawstring Garbage Bag

Drawstring Garbage Bag

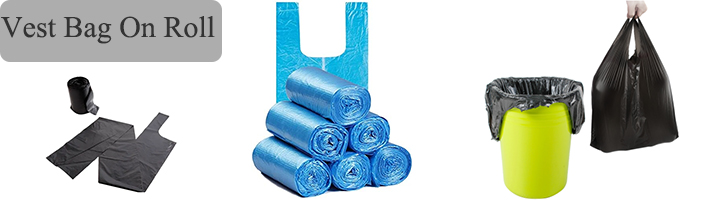

Vest Bag On Roll

Vest Bag On Roll

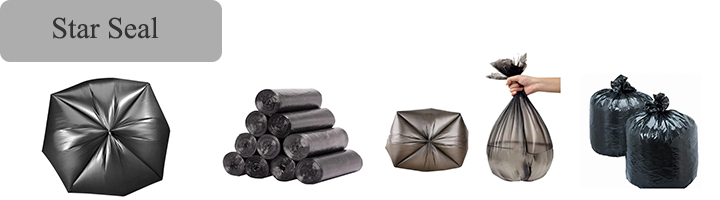

Star Seal Garbage Bag

Star Seal Garbage Bag

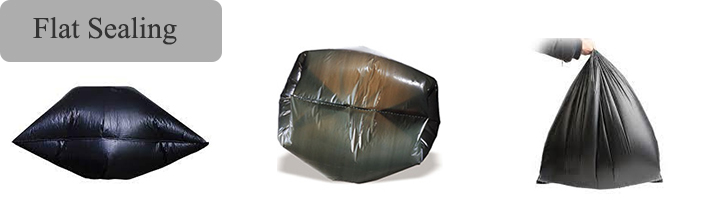

Flat Sealing Trash Bag

Flat Sealing Trash Bag

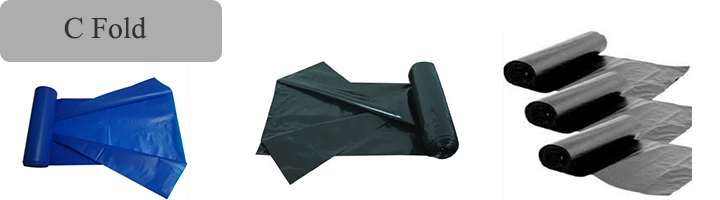

C Fold Garbage On Roll

C Fold Garbage On Roll
