Pen Bag Making Machine
Description

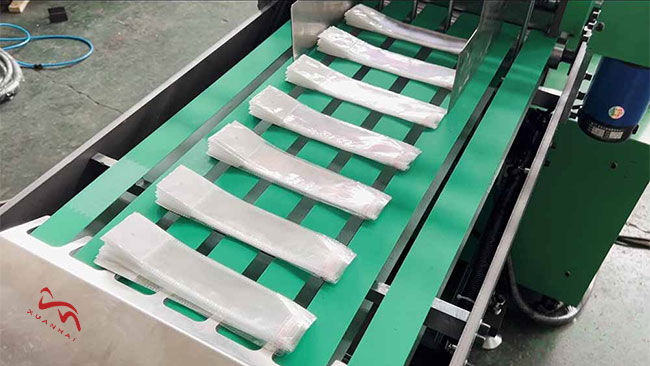

This machine is specifically-made for ultra-narrow bag, the speed reaches up to 400pcs/minute, it can produce width range of 25-200mm ultra-slim OPP (Oriented Polypropylene) side sealing bags, which are used for packaging of hairbrush, pen refill, accessories and other long and thin goods.
Features
1. Touch screen operation, motion controller programming;
2. Full smart linkage, servo motor driving, imported photocell for mark tracking;
3. Adopt air shaft unwinding and magnetic powder brake for tension control;
4. Special design high-speed mute drive system;
5. Achievable double adhesive tape, hole punching and bag making completed by one time;
6. Optional: Pearlized film inserting & Ultrasonic knurling device, 800mm size Web-guide film folder and 400 size Auto bag stacking conveyor.
Specification
|
Model |
DRQ350 |
|
Material |
OPP, PE, PP |
|
Unwinding diameter |
Ф550mm |
|
Bag making width |
≤350mm |
|
Bag making length |
25-200mm |
|
Max. speed |
400pcs/min |
|
Voltage |
380V/3P/50hz |
|
Total power |
5KW |
|
Weight |
700KG |
|
Overall dimension |
4500×1000×1500mm (Bag Making machine) 1600×1500×1300mm (Film Folder) |
