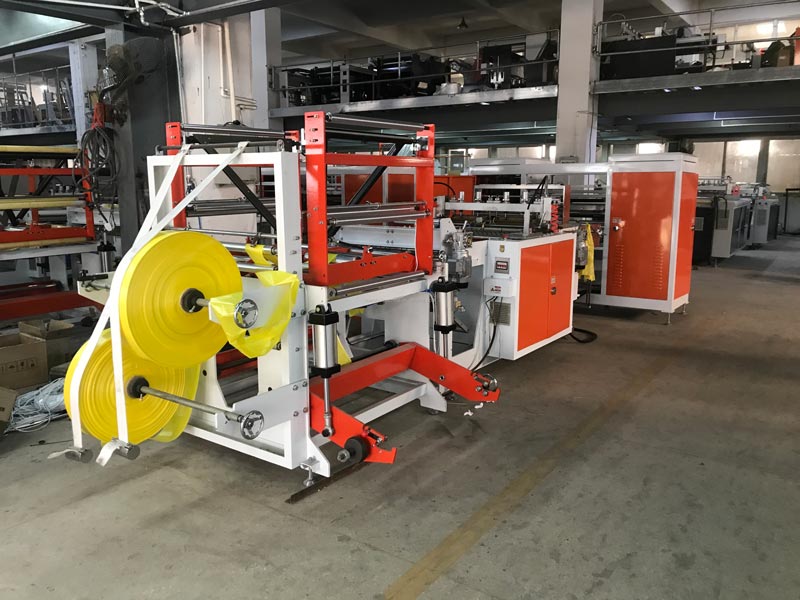

Fully Automatic Double lines Rolling Garbage Bag Making Machine
Product Description
The HDPE\LDPE bags by this machine are applying to supermarket shopping and garbage bags
Advantage
1. This bag making machine is applied to making perforation coreless rolling garbage bags or rubbish bags. And without paper-core star sealing bags or flat sealing bags.specially designed for point-off 8 fold continuous-rolled L-type HDPE\LDPE bag making machine. are applying to supermarket shopping ,vegetable bag,garbage bag. Also suitable for different kind of biodegradable bag such as PLA, PBAT,cornstarch, Caco3,etc.
2. Double bag film rolls with double functions unwinding structure.
3. Folding unit *2sets.
4. The machine adopts computer control system.setting length system to make the sealing size with less error.
Adjust the bag length, print bags a problem the machine automatically shut down and alarm.
Color mark tracking photocell track the precise location of the pattern of the printed bags.
5. Automatic rewinder. This machine is equipped with automatic bag rolls rewinding and changing
6. With functions such as double bag film roll unwinding, folding system, photocell automatic tracking, strong heat-sealing device, microcomputer length setting, Taiwan Delta inverters, automatic counting, automatic alarm when reaching the set figure, digital temperature controller, automatic bag rolls rewinding and changing.
7. It is an ideal fully automatic equipment to produce roll garbage bags, or for the bag plant to improve efficiency and reduce the labor demand device of choice
High Speed Disposable Rubbish Double Lines Roll Plastic Garbage Bag Making Machine
This machine is producing rolling bag.Also can make garbage bag on roll without paper core,vegetable bag .Fully automatic exchange system can reduce the labour force,in the excellent servo driven system,it is the best choice for producing printed bag and blank bag.Easy for operate.
Main Technical Parameter
|
Model |
RDZB-520 |
RDZB-520S-AR |
RDZB-700 |
|
Voltage |
380V 3PHASE |
220V 3PHASE |
220V 380v 3PHASE |
|
Suitable materials |
HDPE,LDPE |
HDPE,LDPE |
HDPE,LDPE |
|
Producing length |
400-1000mm |
400-800mm |
400-1200mm |
|
Producing width(two lines) |
150-400mm (unfold) |
150-400mm (unfold) |
200-500mm (BEFORE FOLDING) |
|
Final products width |
90-220mm |
90-220mm |
100-250mm |
|
Producing speed |
80m/min*2 |
80m/min*2 |
70m/min |
|
Total power |
8.0kw |
8.0kw |
9.0kw |
|
Film of thickness |
0.008-0.02mm |
0.008-0.02mm |
0.008-0.025mm |
|
Max. sealing layer |
8 |
8 |
8 |
|
Weight |
1900kg |
2000kg |
2000kg |
|
Overall size |
4550x1900x1450mm |
4550x1900x1450mm |
4750x2100x1450mm |
Product details
Feeding system
High accuracy
Fully automatic feeding system
Synchronous feeding of double rubber rollers

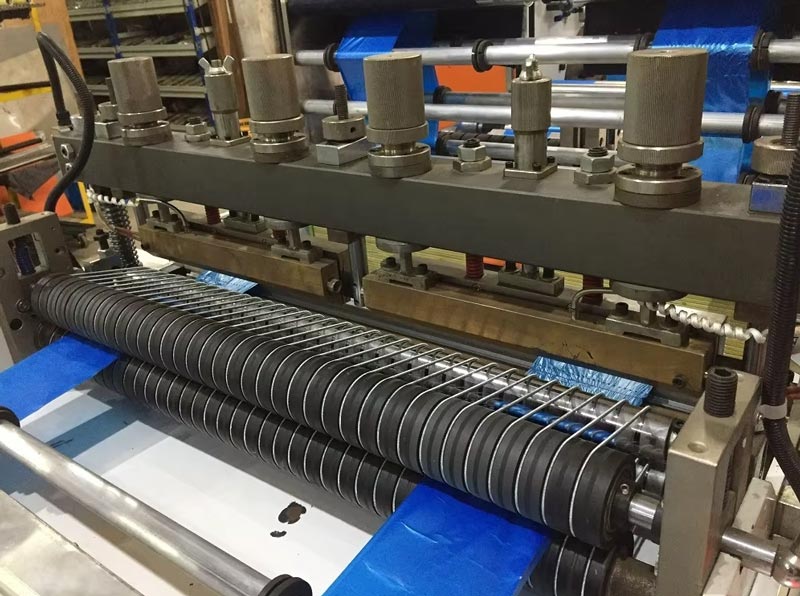

Sealing system
No tension design makes the seal more stable and firmer when the machine is running at high speed
