DRQ-F Plastic Flower Sleeve Bag Making Machine
Description

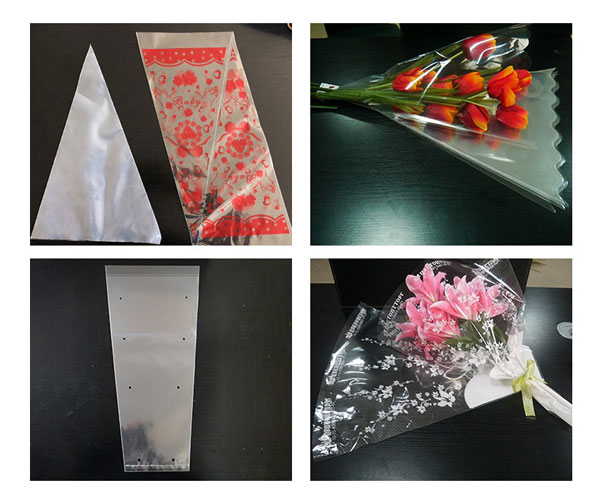

This machine is suitable for BOPP/CPP/PE and other plastic film. It’s a ideal equipment for making Flower sleeve bag, tower shape bag, umbrella bag, necktie bag, sandwich bag and other triangular, trapezoidal and other special-shaped bags.
Features

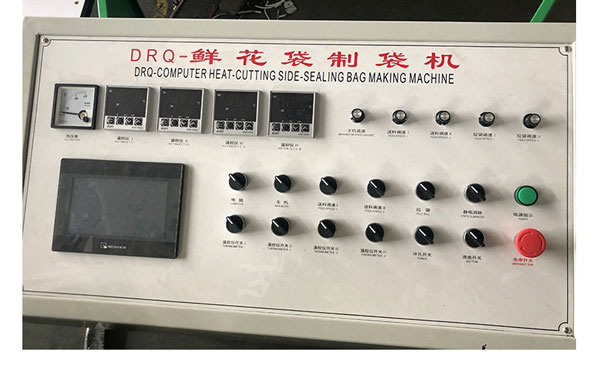

1.Man-machine interface, touch screen operation, PLC control, easy to operate. With the functions of photoelectric tracking, fixed length setting, automatic counting and out of step alarming.
2.Dual servo motors driven, driving system adopts 4 sets of frequency inverters and imported three-phase motor.
3.Printing bag tracking using imported photoelectric sensor, precise control of bag size.

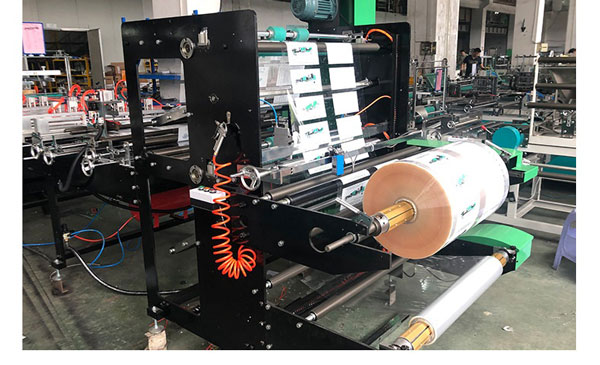

4.Dual unwinders with air shafts unwinding, magnetic powder brake control, and with a set of EPC web-guide control system.

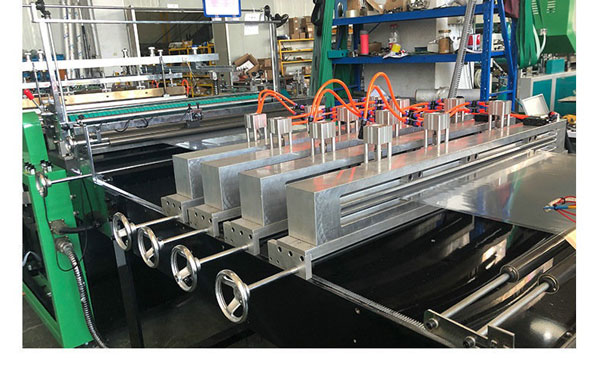

5.The machine equipped with pneumatic hole puncher, water-cooling device and perforation device.
6.Adopt 3m imported silicone plate driving, long service life and well-down bag making.
Specification
|
Model |
DRQ-F600 |
DRQ-F800 |
DRQ-F1000 |
DRQ-F1200 |
|
Bag Width |
550mm |
750mm |
950mm |
1150 |
|
Bag Length |
800mm |
800mm |
800mm |
800mm |
|
Speed |
30-100PCS/MIN |
30-100PCS/MIN |
30-80PCS/MIN |
30-80PCS/MIN |
|
Film thickness |
0.01-0.2mm |
0.01-0.2mm |
0.01-0.2mm |
0.01-0.2mm |
|
Total Power |
12KW |
14KW |
15KW |
20KW |
|
Power supply |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Weight |
2000KG |
3000KG |
3500KG |
4400KG |
|
Overall Dimension |
6540×1300×1500mm |
6540×1500×1500mm |
6540×1700×1500mm |
6540×1900×1500mm |
