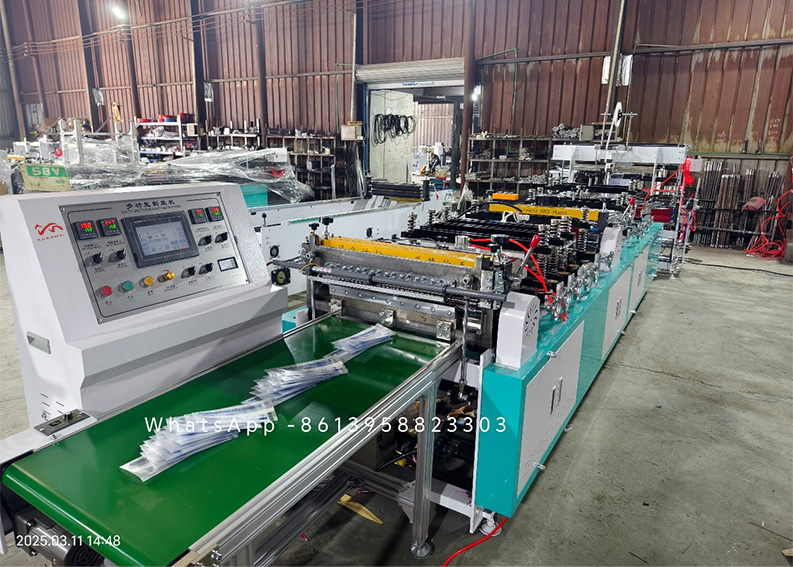

Center Strip Pouches Medical Sterilization Paper And Film Packaging Central Sealing Medical Bag Making Machine
Center strip pouches medical sterilization paper and film packaging medical bag making machine
(double servo type)
Application

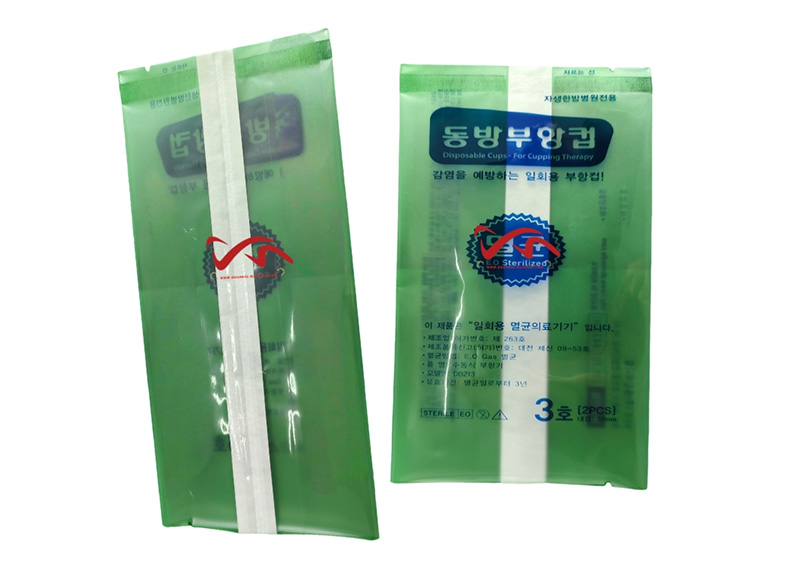

This machine is special designed to make medical bag with easy tear off paper strip ,also suitable for cutting all kinds of food packaging, Coffee packing,candy packaging, big cake bags, stickers, coated paper bags, etc.
Performance and characteristics
The middle and bottom sealing integrated machine is suitable for automatic middle sealing, bottom sealing and cutting of flexible packaging composite bags. The machine adopts microcomputer automatic control, servo motor control, frequency conversion speed regulation, photoelectric tracking, work counting, automatic temperature control, high parking, four Hot sealing device, firm sealing, smooth and other technologies. (According to user requirements, punching dies and tear openings, single film bag sealing and cutting devices can be added).
Configuration
|
Mechanical part |
Electrical part |
|

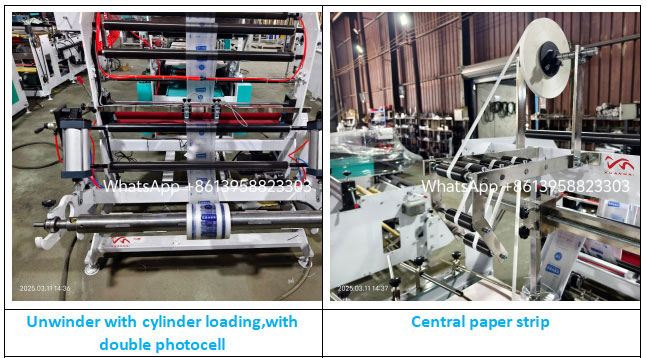

1. Unwinding device: the unwinding device adopts magnetic powder and air shaft |
1. Unwinding magnetic powder 2.5KG (china brand) |
|
2. Frame: adopt steel plate structure |
2. Double servo motor control 2KW 2sets |
|
3. Cross-cutting tool holder: adopts casting structure |
3. Double photoelectric tracking and positioning device for edge correction machine (Zhejiang Julong) |
|
4. Cross-cutting knife: using domestic ordinary cutting knife |

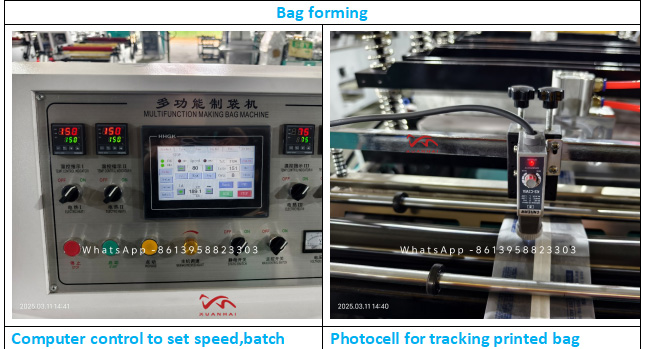

4. Independent microcomputer control cabinet: automatic counting, automatic alarm when the number is reached. Automatic shutdown function for lack of material |
|
5. Drive shaft: rubber shaft slotted 6. Hot knife: The bottom seal adopts aluminum structure (2 two horizontal ironing, 1 cooling.) The middle sealing hot knife adopts a longitudinal ironing knife, and 1 longitudinal cooling and flat pressing. |
5. Traction adopts variable frequency motor speed regulation (Shanghai) 7. Computer touch screen control (PLC) |
|
7. Feeding traction mode: motor drives belt pulley to drive traction rubber shaft |
8. Main engine adopts 2.2KW motor (Shanghai) |
|
8.Max material width 700mm, max bag width 330mm |
9. working speed 120 bags/min |
|
9. Whole machine weight 1500kg |
|
|
10. Dimensions: length 6.7 meters * width 1.3 meters * height 1.5 meters |
|

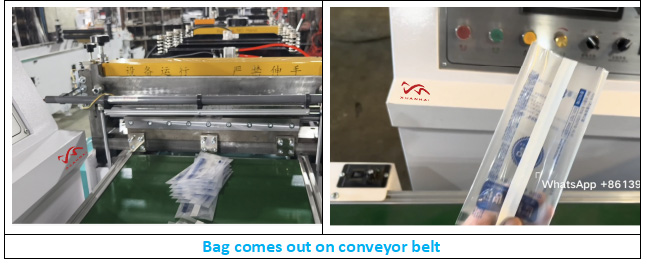

More machine pictures

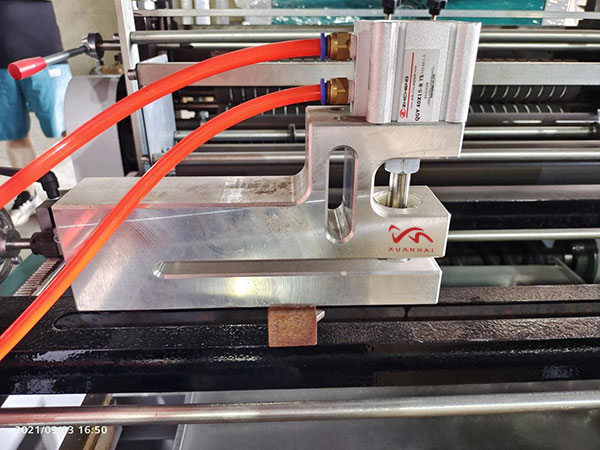

Optional: hole puncher
