Corrugated Scratch Cat Nests Machine
Machine Description
1.The machine adopts man-machine exchange system, touch screen, simple input, easy adjustment, screen picture is clear and clear. PLC operation control data accurate and reliable.
2.The machine's electric drive system adopts servo motor. It has the advantages of high control precision, low noise, large torque and high dynamic rate.
(1) The main machine adopts 1 kw servo motor.
(2) The shift motor adopts 0.75 kw servo motor.

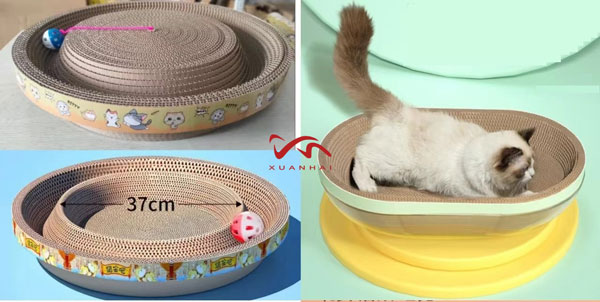

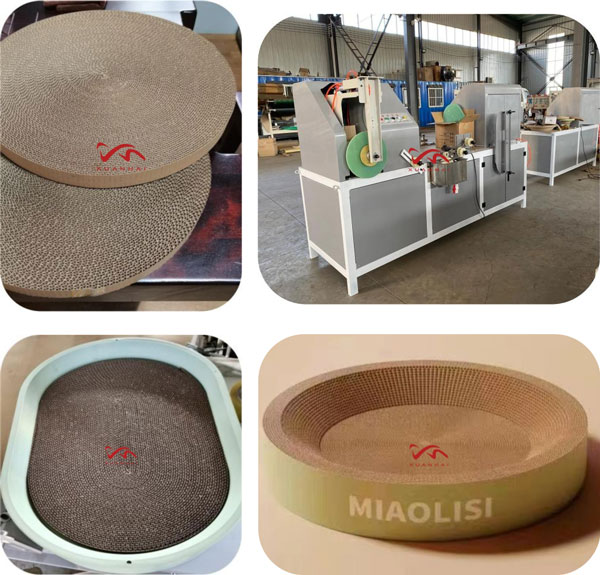

3.Scope of application: Suitable for corrugated paper strip molding cat nest.
Circular diameter 30cm-65cm.
Oval 30cm-60cm.

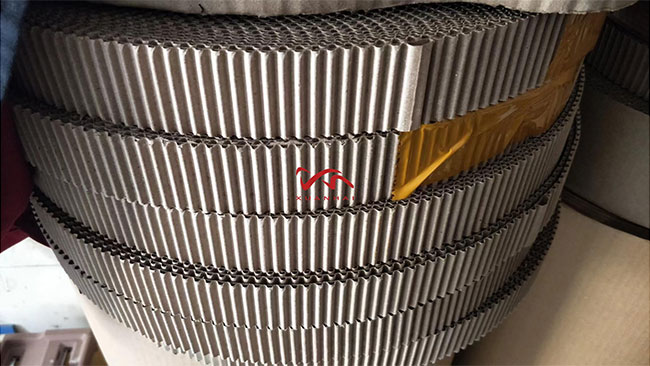

Corrugated paper strip width 2.5-9cm.

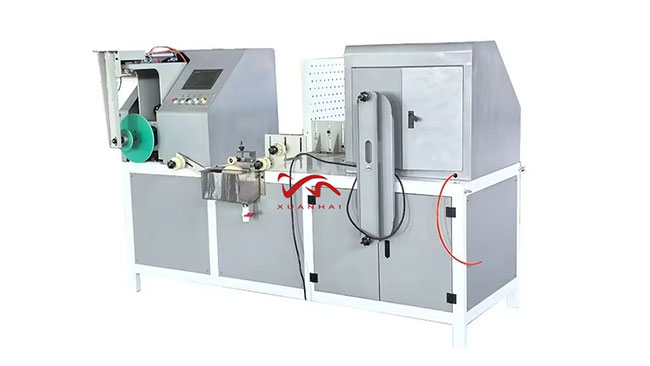

Machine size
The single head length of the machine is about 1.9m, the width is about 0.9m, the height is about 1.7m and the weight is about 300kg.
The double head is about 2.4m long, about 1m wide, about 1.7m high and weighs about 400kg.
1.Total power of single station :1.75kw, power supply voltage :220V,50HZ.
2.Total power of double-station machine: 3kw, power supply voltage :220V,50HZ
2.The air source is not less than 4kg/c㎡.
Note: Please inform us in advance if the customer has any other requirements.
