Glue Twisted Paper Handle Making Machine
Product Description
The twisted handle making machine is main used to produce the twisted handle which support square bottom paper bag machine produces the shopping bags with twisted handle. Using the twisted rope and glue as raw materials to produce the twisted handle, also can add belt conveyor for worker to paste the handle and paper bags together beside the conveyor. The machine has belt can make and cut off the handle to get two pieces in one time, so the speed is high. The machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
Product Parameter
| Paper Roll Core Diameter | Φ76 mm(3'') |
| Max. Paper Roll Diameter | Φ1000mm |
| Production Speed | 5000-8000pairs/hour |
| Power Requirements | 380V |
| Total Power | 7.8KW |
| Total Weight | Appr.1500kg |
| Overall Dimension | L4000*W1300*H1500mm |

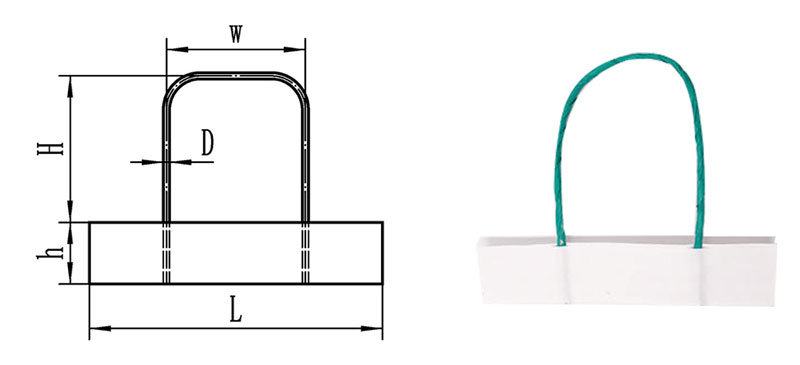

| Paper Length | 190mm(Optional) |
| Paper Rope Handle Spacing | 95mm(Optional) |
| Paper Width | 35/40mm |
| Paper Rope Height | 100mm |

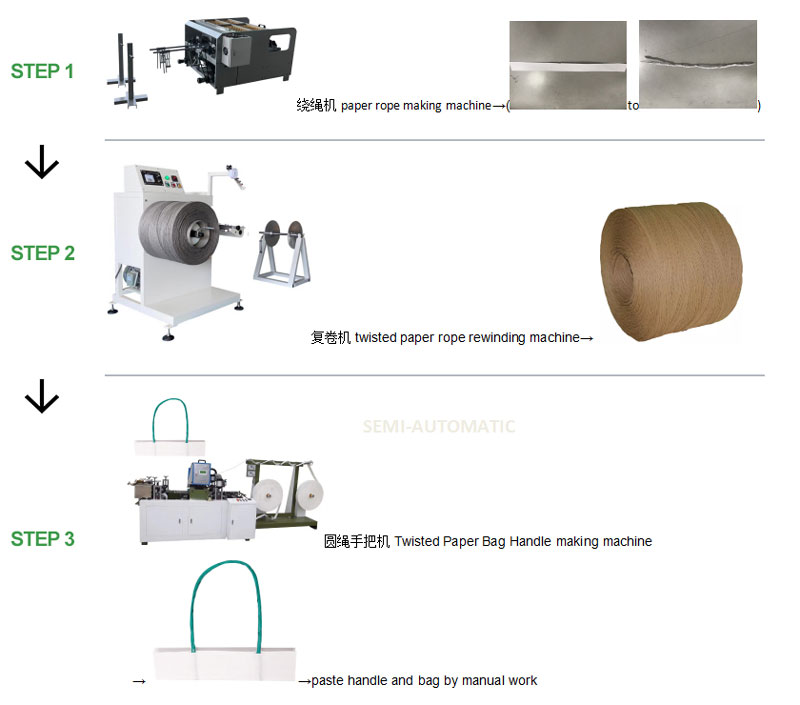

Machine Process
How to produce the paper bag with twisted rope handle
1.Slitting machine (optional)
2. Printing machine (optional)
3.Square bottom paper bag making machine
4.Paper rope making machine (optional)
5.Paper rope rewinding machine (optional)
6. Twisted rope handle making machine
7.Paste the handle in the paper bags by hand
Samples
