Twisted Handle Making And Pasting To Bag Making Machine
Product Description
The paper twisted handle making and pasting machine use the twisted rope, paper rolls and the hot melt adhesive as raw material to produce the twisted handle and then paste the handle to paper bags together to get the shopping bags with twisted handle. It is support for square bottom paper bag machine to produce the bags with handle. Through the belt, paper roll and glue system to get the twisted handle, and then cut off them separately, and then paste the already made paper bags with the handle together,then the paper bags with handle are done.
Machine Parameter
| Handle length（A） | 152/190mm |
| Rope spacing(B) | 75/95mm |
| Paper width(C) | 30/40mm |
| Paper rope length | 360mm |
| Paper rope height(D) | 100mm |
| Rope diameter | Φ2.5~5mm |
| Bag width | 250-400mm |
| Bag length | 250-450mm |
| Top opening size | Over 130mm |
| Production speed | 30-35 pcs/min |
| Servo motor power | 750W |
| Total power | 380V，10KW，50HZ |
| Overall dimension | L6000*W1600*H1500mm |
| Handle length（A） | 152/190mm |
| Rope spacing(B) | 75/95mm |
| Paper width(C) | 30/40mm |
| Paper rope length | 360mm |
Machine Details

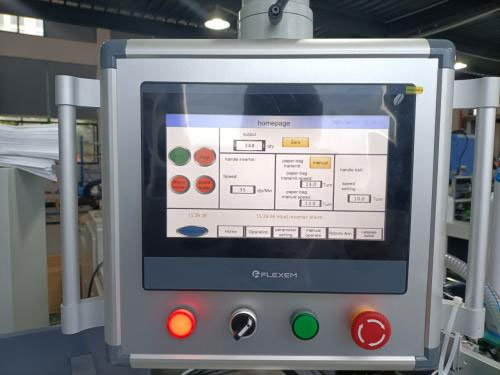

| 1. Using FLEXEM touch screen man-machine interface control system, operating at a glance. |  |

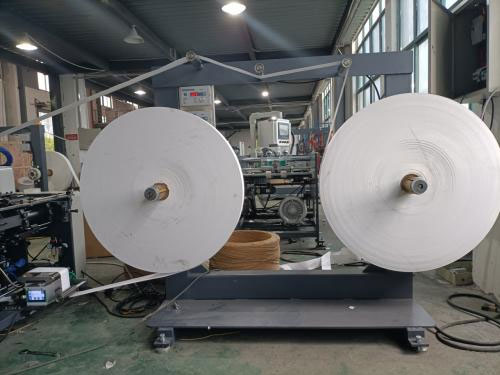

| 2. double unwinding unit |  |

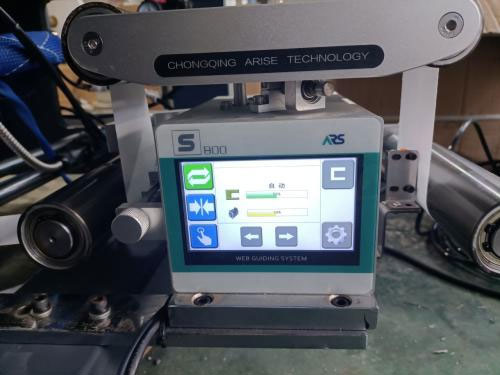

| 3. use Arise EPC to ensure the handle patch on the right position |  |

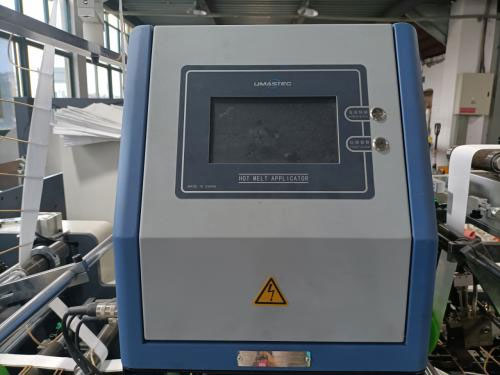

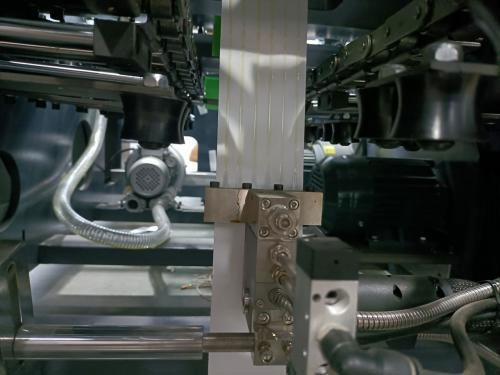

| 4. high quality hot melt system can reduce the melt cost and defective |  |
| 5. top brand hot melt system made in taiwan durable and long service life |  |
| 6. feeder transmit paper bag automatically |  |

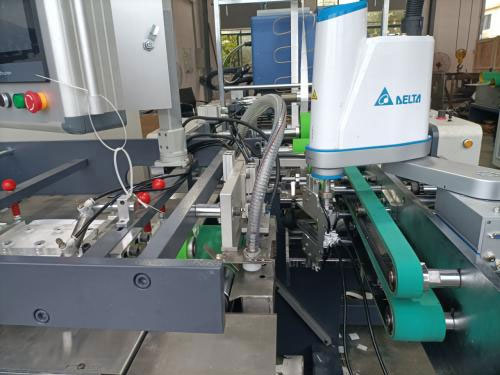

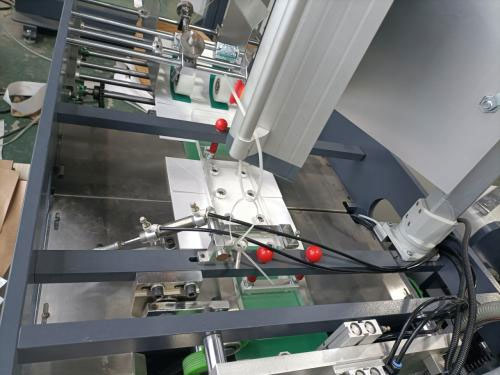

| 7. Taiwan made DELTA robotic arm durable and long service life |  |

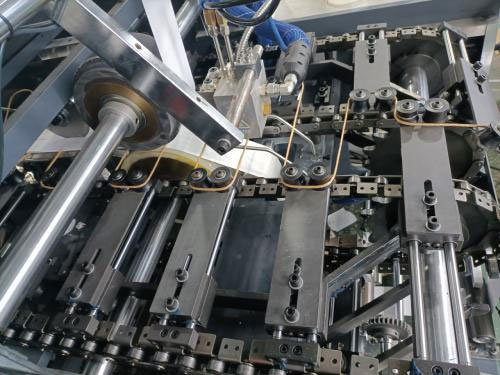

| 8. Handle making unit |  |

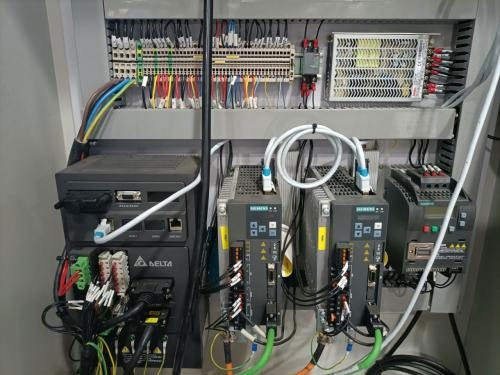

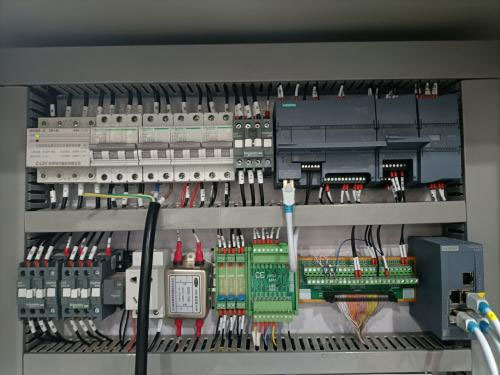

| 9. Siemens servo driver and inverter |  |
| 10. Siemens |  |

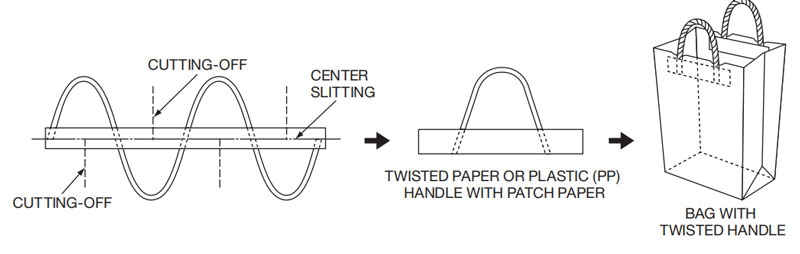

Machine Process

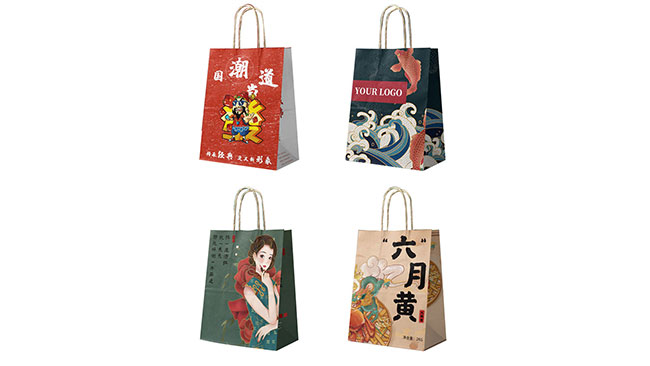

Samples
