Flat Handle Making And Pasting Machine
Product Description
Paper Flat Handle Making And Pasting Machine
Paper flat handle making machine and pasting is used to produce the flat handle and paste the handle and bag body together. It need the paper roll, paper bags and glue as raw materials. There are advantages like operate simply and save the labour cost. Using four rolls of paper through the machine process to make and cut them into flat rope and flat handle once shaping.
Machine Parameter
| Flat Rope spacing(A) | 84mm |
| Flat Rope width(B) | 12mm |
| Flat Paper rope height(C) | 100mm |
| Paper width(D) | 40mm |
| Paper length(E) | 152mm |
| Flat Rope length | 352mm |
| Bag width | 250-400mm |
| Bag length | 250-450mm |
| Top opening size | Over 130mm |
| Production speed | 35~40 pcs/min |
| Servo motor power | 750W |
| Total power | 380V，10KW，50HZ |

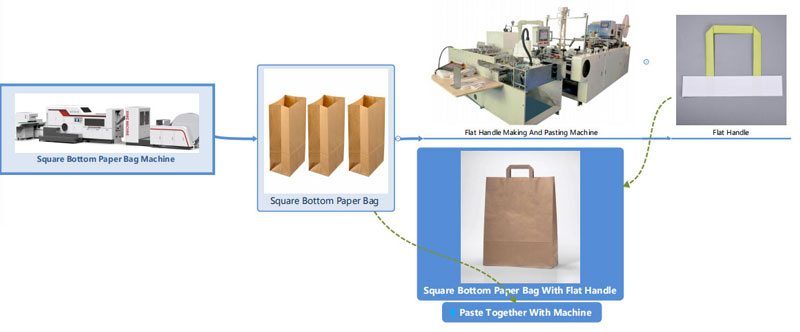

Machine Process

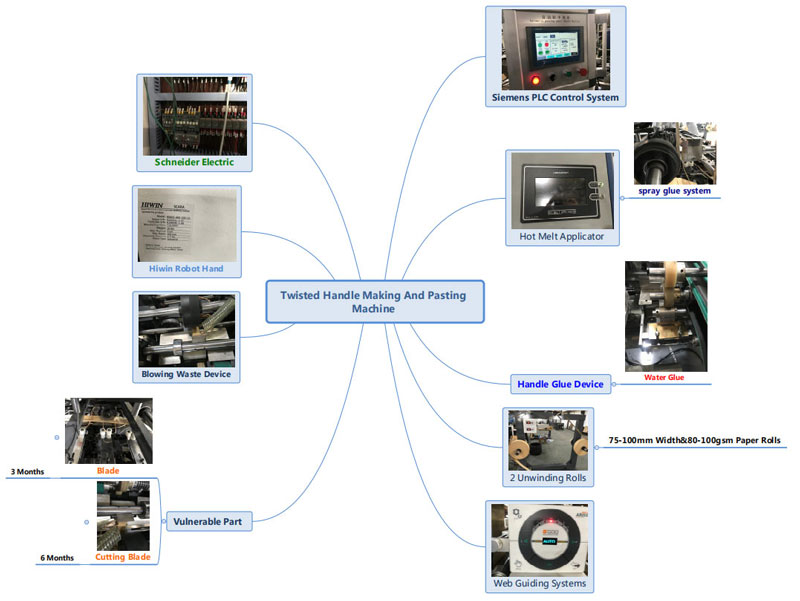

Machine Details

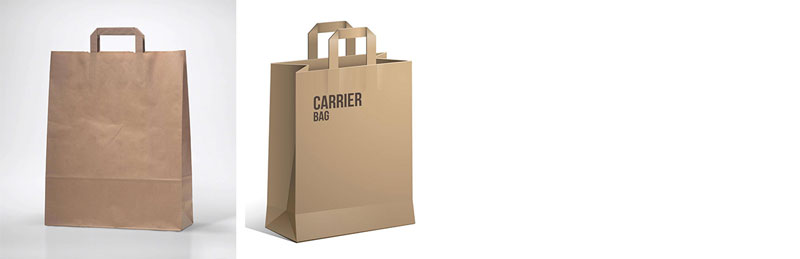

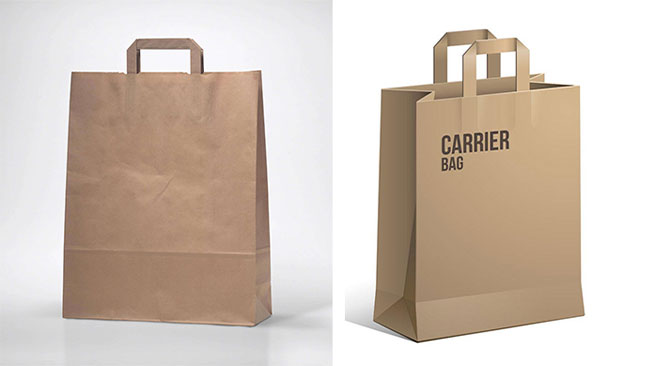

Samples
Services
● After sales service
● Installation and training
● 24 hours Online service
● 12 months warranty period, lifelong service
