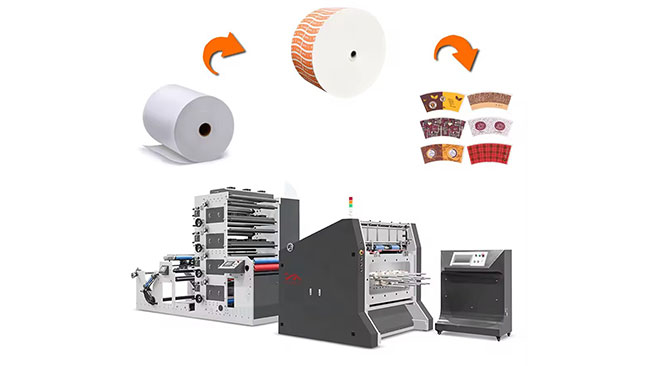

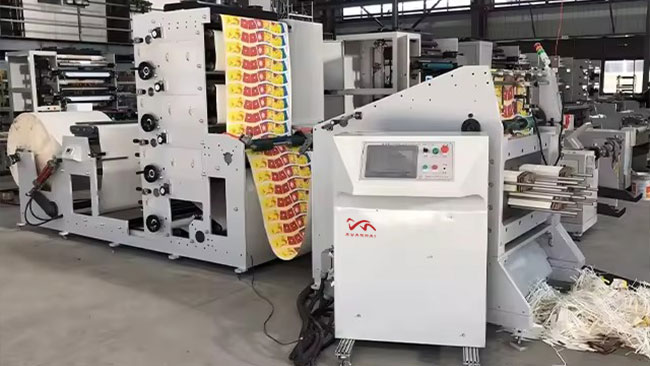

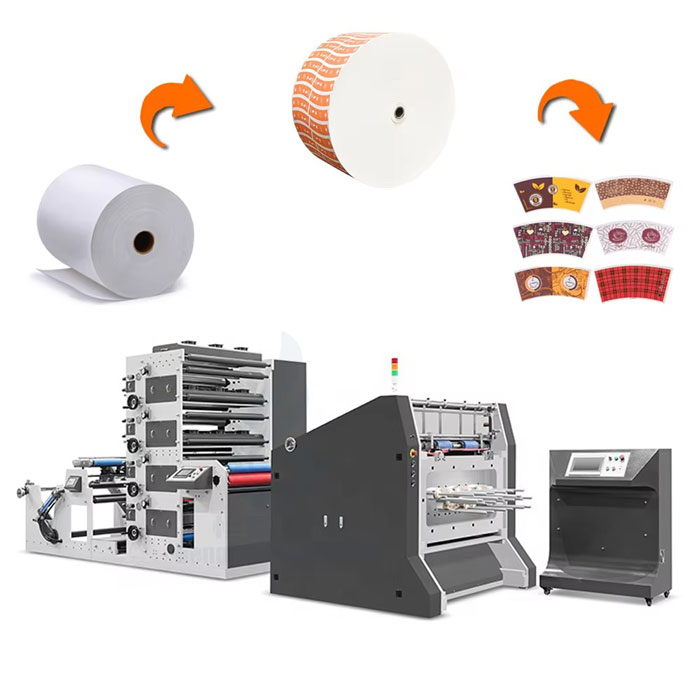

Paper Printing and Die Cutting Machine
FEATURE

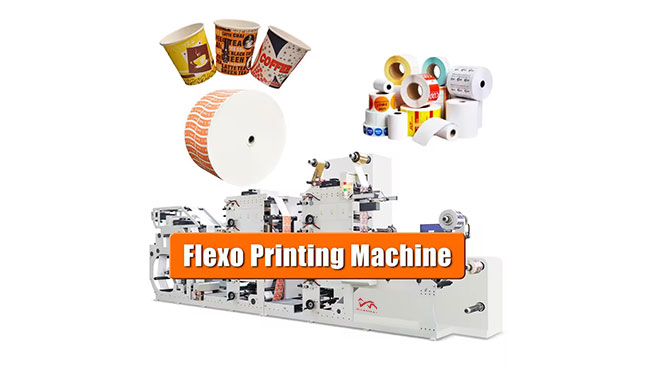

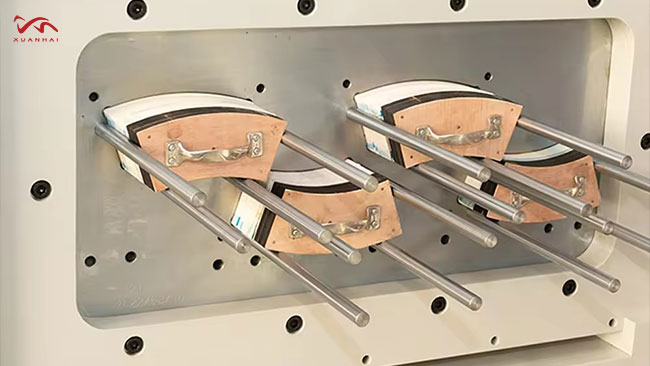

This is an economical and environmental friendly printer for printing thermal paper, cup paper, use water basic ink, you can get different printing size and quality by changing printing cylinders and anilox rollers, so the printing quality can reach your demand. this machine also can do die cutting, such as paper cup, paper box,etc.
PRODUCT SPECIFICATIONS
|
Machine model |
HH-RY850B-4C |
HH-RY950B-4C |
HH-RY1000B-4C |
|
Printing part |
|||
|
Machine color quantities |
4 colors (Customizable Multi Colors) |
||
|
Printing speed |
55-60m/min |
||
|
Maximum web width |
860mm |
950mm |
1010mm |
|
Maximum printing width |
850mm |
940mm |
1000mm |
|
Maximum unwinding diameter |
1300mm |
||
|
Printing size |
175-380mm |
||
|
Total power |
about 45kw |
45kw |
50kw |
|
Registering precision |
±0.10mm |
||
|
Total air pressure |
0.6-0.8MP |
||
|
Voltage |
380V±10% |
||
|
Machine weight |
4500KG |
5000KG |
5500KG |
|
Machine dimension |
3500*1300*2350mm |
4800*2150*2250mm |
4800*2200*2250mm |
|
Punching die cutting part |
|||
|
Punching speed |
190-200 times/min |
||
|
Maximum feeding width |
860mm |
950mm |
1010mm |
|
Maximum die cutting width |
400*850mm |
400*940mm |
400*1000mm |
|
Locating precision |
±0.1mm |
||
