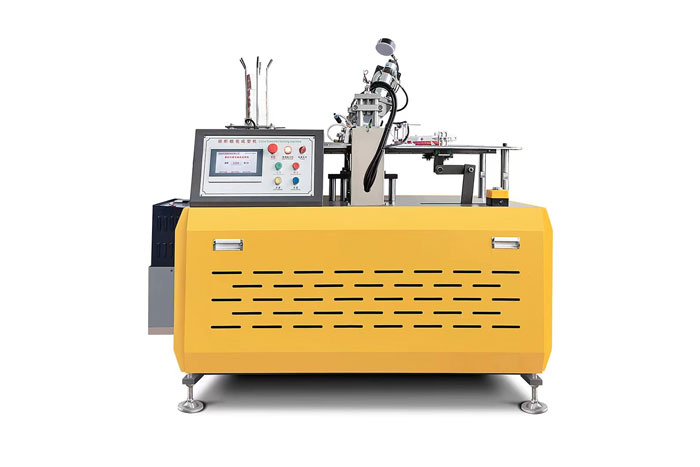

High Speed Full Fireworks Forming Machine Automatic Bonding Fireworks Machine Paper Horn Cone Making Machine
Machine Introduction

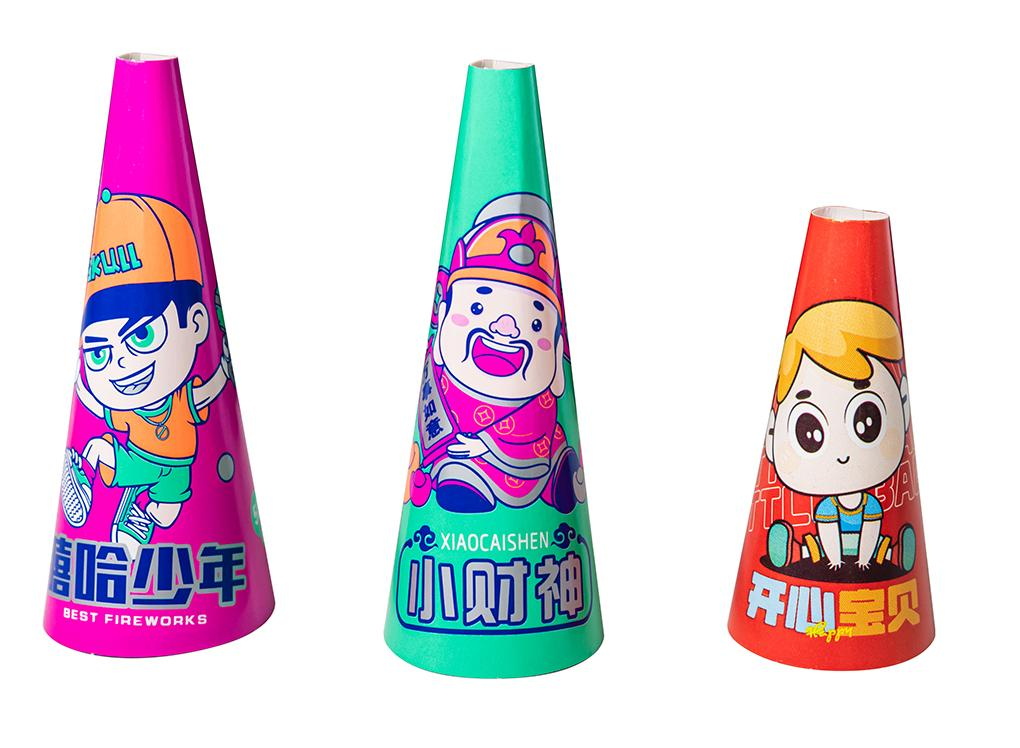

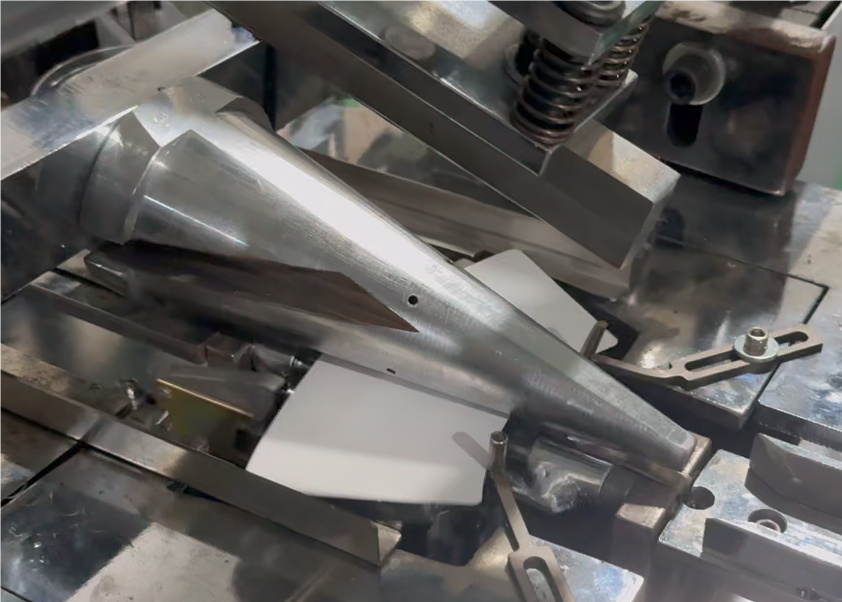

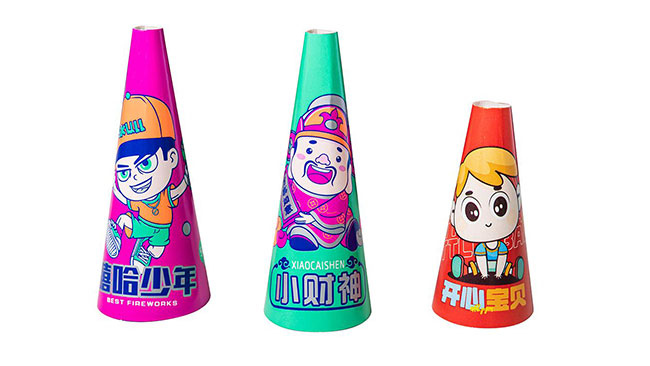

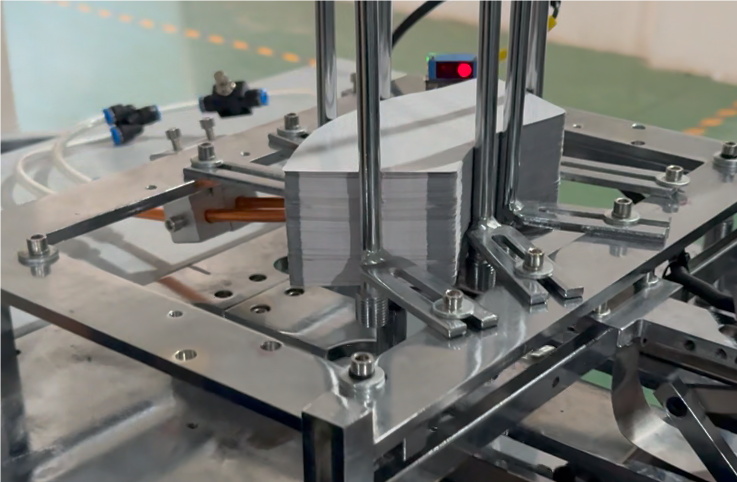

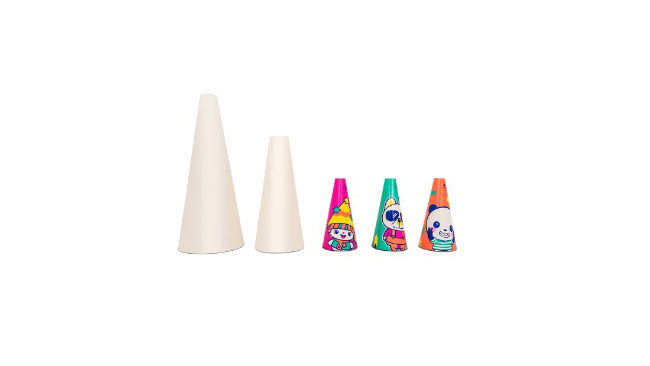

Make cone-shaped fireworks samples, use single-sided or double-sided PE coated paper, UV varnish cardboard, etc.automatically feed the pre-cut paper into the cone film, splice the prepared shapes by the robot, and then glue the two sides on Together. When welding, use an ultrasonic heating machine without any glue, and finally form a finished product and enter the collection device.
Advantage
1. High-speed production capacity: 80-100pcs/min per minute.
2. Sensor failure detection：the machine will automatically stop working when there is a problem, which greatly improves the operating safety.
3. Ultrasonic heating device: it can easily seal paper with a thickness of 140-320gsm, with fast sealing speed, less paper leakage and longer life.
|
Model |
S12 Paper horn cone machine |
|
Paper Size |
50-150mm |
|
Raw Material |
One or Two side PE coated Paper, UV Varnish cardboard Paper etc |
|
Suitable Paper Weight |
140-350gsm |
|
Speed |
80-100Pcs/min |
|
Total Power |
4KW |
|
Power Source |
50/60HZ,380V/220V |
|
Tptal Weight |
800KGS |
|
Package Size(L*W*H) |
1900*1000*1550mm |
|
Side Welding Mode |
Ultrasonic heater |
|
Air SourceSpecification |
0.4mpa.output:0.6m3 /min |

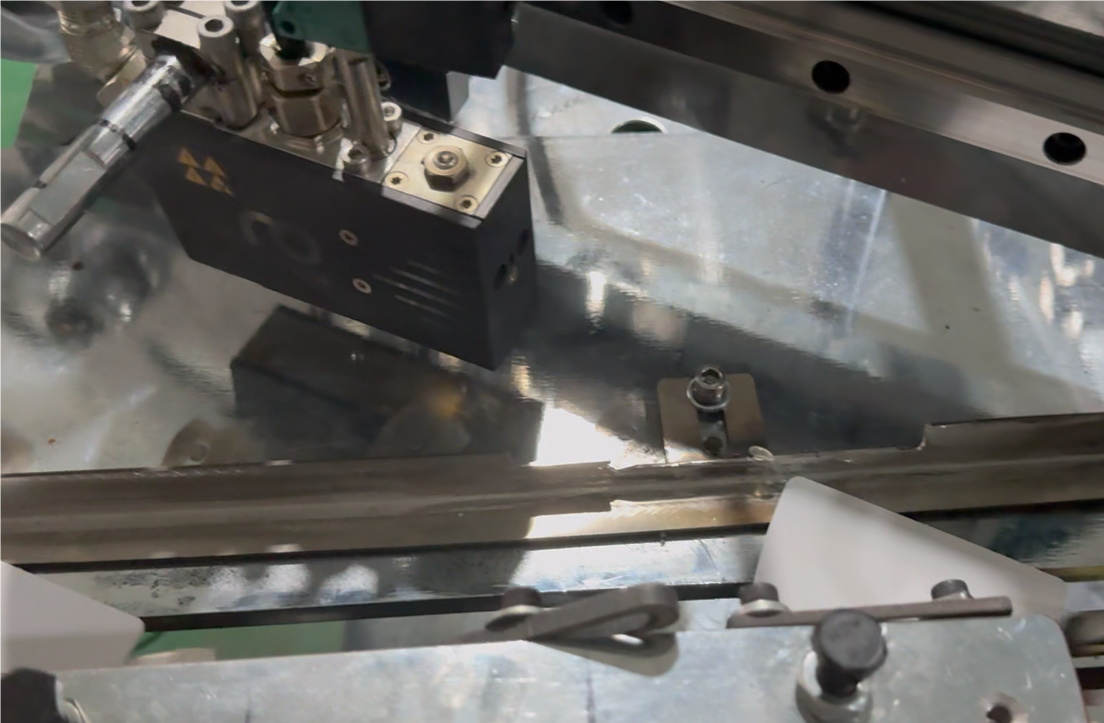

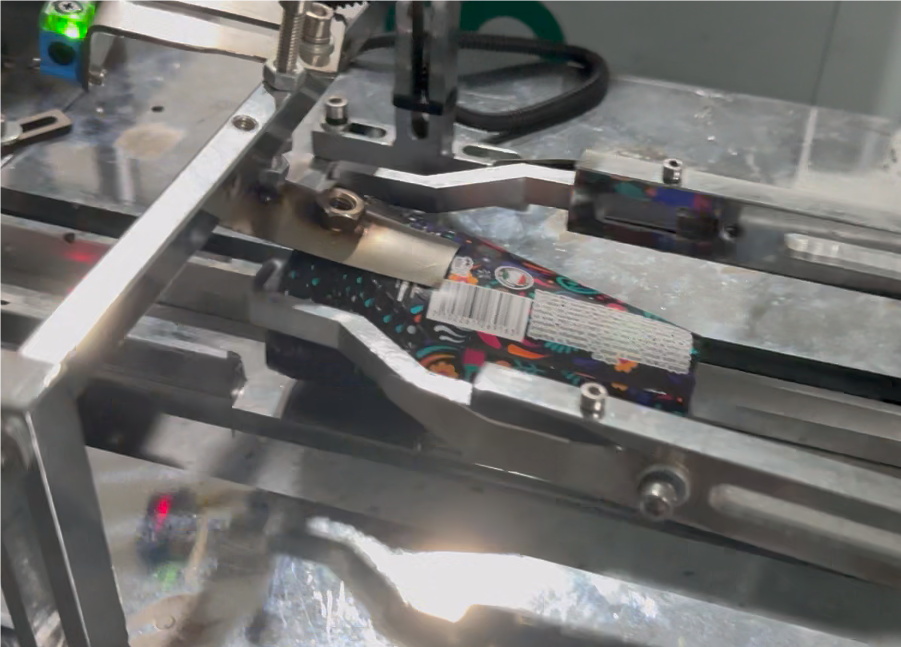

Machine Details
