CPC-220 Automatic Ice Cream Paper Cone Sleeve Forming Machine

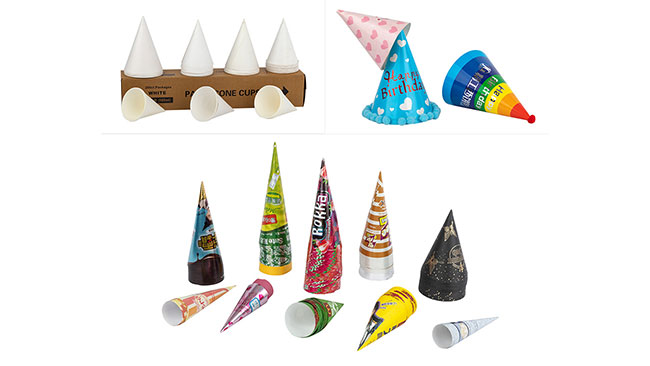

CPC-220 High Quality Automatic Ice Cream Cup Paper Cone Sleeve Wrapper Forming Machine makes paper cone sleeve for ice cream ,water cone and other similar paper cone sleeve. This machine can shape angles from 17°-28° (Through the way to change the mould). high speed from 190-230 pcs/min, can use different paper material like art paper, aluminized paper, offset paper etc, major parts of this machine used famous international brand like Schnelder. Panasonic, Robatech etc. This machine can customize for water cone, which is popular now in airport.

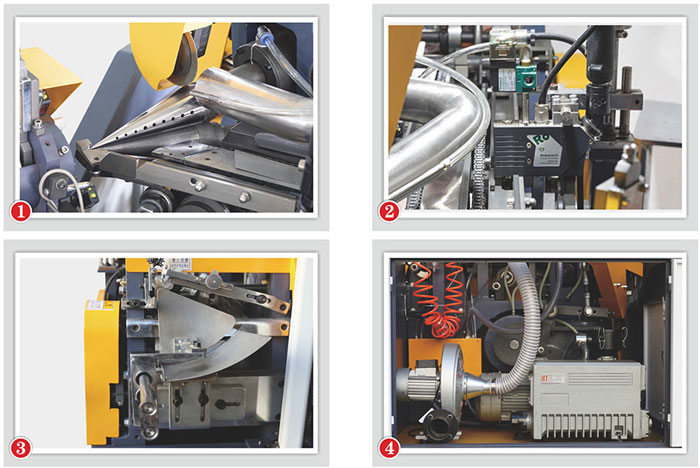

Advantage
1.Special materials made of cone mold has a very long service life.
2.Switzerland Robatech original nozzle at the bottom of the bonding more solid.
3.The vonveying paper is simple and stable.
4.Discharge waste and the vacuum is the integration of the whole machine.
Specification
|
General Power |
9kw |
|
Paper Request |
80-170g/m² art paper / aluminized paper /offset paper /wax paper etc. |
|
Voltage Supply |
220V50Hz 1phase、380V50Hz 3phase or customize |
|
Paper Cup Size |
4-10oz |
|
Speed |
190-230pcs/min |
|
Angle Degree |
17°-28° (or customized) |
|
Cone Line |
Min 110mm-Max 250mm (or customized) |
|
Weight |
1000kgs |
|
Measurement |
1850×1750×1800mm |
|
Main Parts Brand |
PLC: Mitubishi Glue box: Robatech |
|
Vacuum pump: huitong Transducer: Schneider |
|
|
Sensor: Omron Electrical parts: Schneider + Panasonic |
