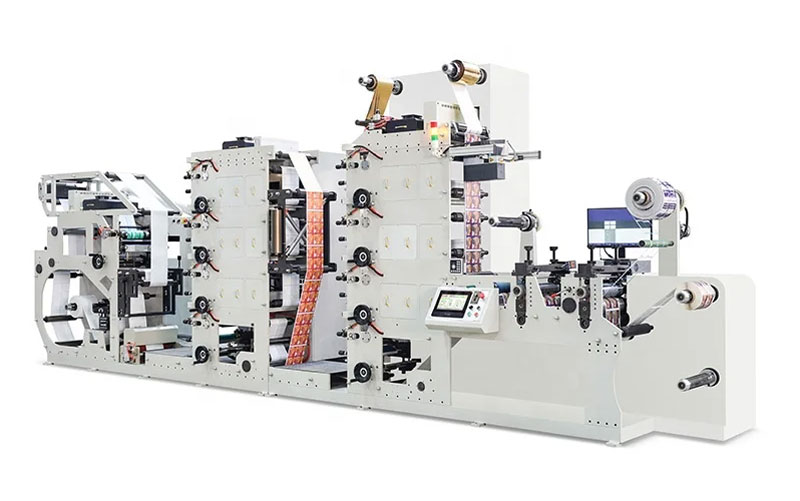

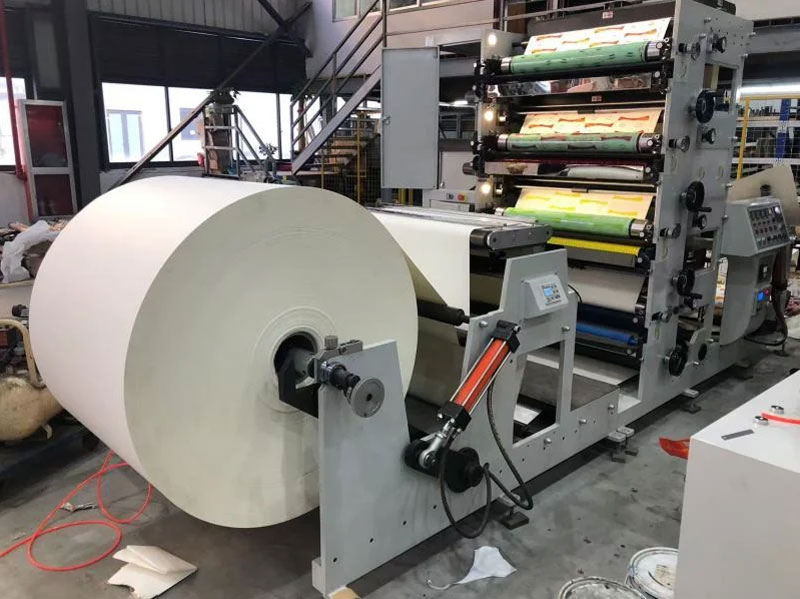

Paper Cup/Box Flexo Printing Machine
FEATURE
This is an economical and environmental friendly printer for printing thermal paper, cup paper, use water basic ink, you can get different printing size and quality by changing printing cylinders and anilox rollers, so the printing quality can reach your demand.
PRODUCT SPECIFICATIONS
|
Machine model |
RY850-4C |
RY950-4C |
RY1000-4C |
|
Machine color quantities |
4 colors |
||
|
Printing speed |
55-60m/min |
||
|
Maximum web width |
860mm |
950mm |
1010mm |
|
Maximum printing width |
850mm |
940mm |
1000mm |
|
maximum unwinding diameter |
1300mm |
||
|
printing size |
175-380mm |
||
|
Total power |
about 45kw |
45kw |
50kw |
|
Registering precision |
±0.10mm |
||
|
Total air pressure |
0.6-0.8MP |
||
|
Voltage |
380V±10% |
||
|
Machine weight |
4500KG |
5000KG |
5500KG |
|
Machine dimension |
4800*2050*2250mm |
4800X2150X2250mm |
4800X2200X2250mm |
Machine Configuration

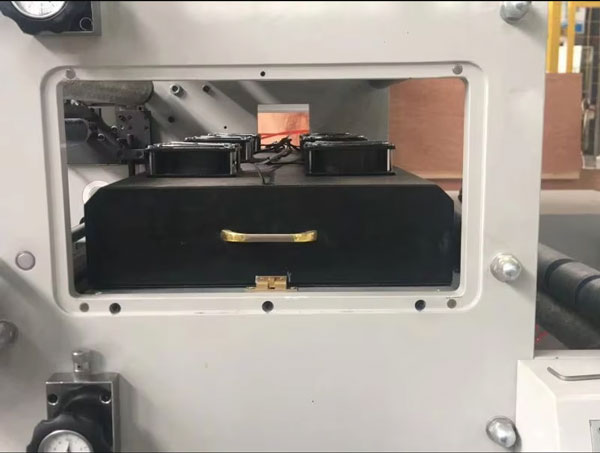

IR dryer
1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
hydraulic lifting system for unwinding and rewinding
Whatever raw material weight is heavy or light, it doesnt need labor to move to unwinding/rewinding location, it can automatically load to unwinding location or unload on the ground.

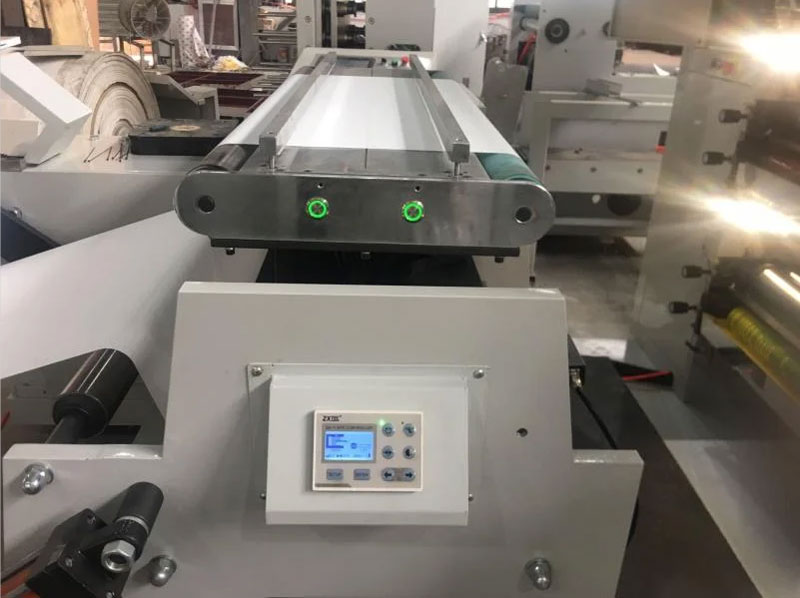

web guide
can control material go straightly,then output final product with good edge.

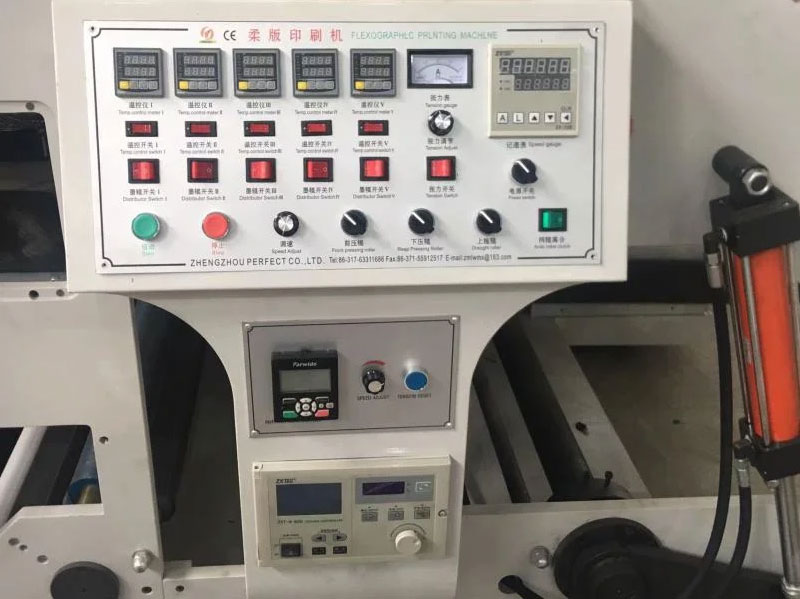

control panel
1). Power Supply, Stop Button, Start Button and Emergency Stop.
2).Temperature Controller for each Heating Oven.
3). Anilox Roller Rotation Button for each Printing Station. Length Counter and Speed Controller
4). bottom roller tension control

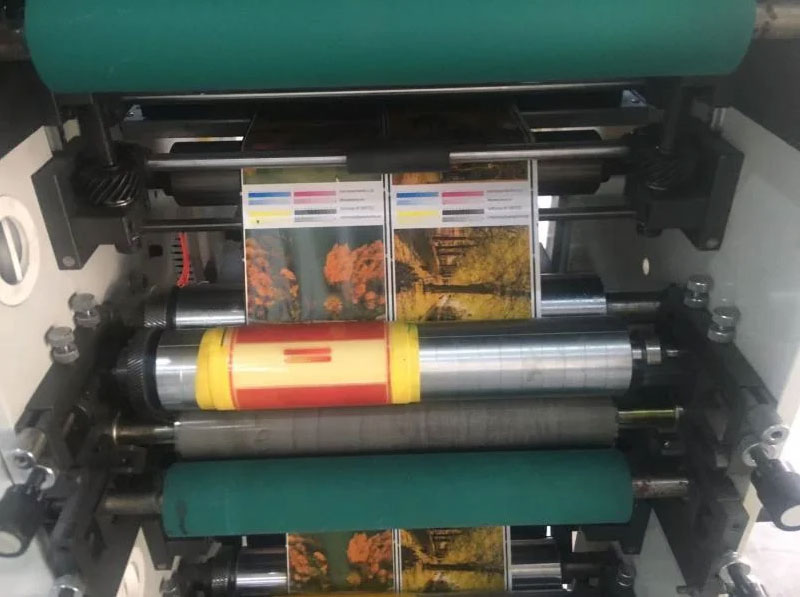

printing unit
Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Containe,depend roller, with Helical Gear

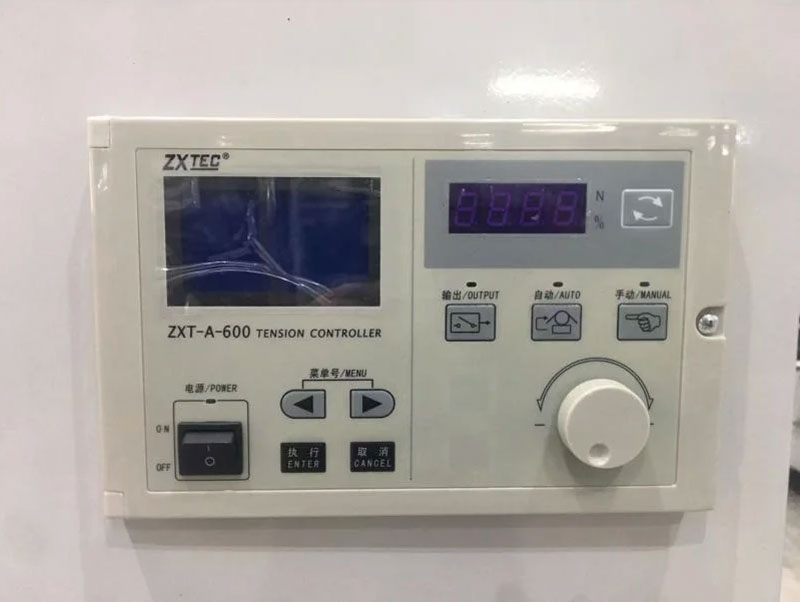

Automatic constant tension control
tension is control pulling material tight or loose.machine come with two Set Auto Constant Tension Controller For Unwind and Rewinding.
