ZF-DG Multi Grid Paper Food Lunch Box Making Machine
.jpg)
.jpg)
can make all kinds of machines according to your request.

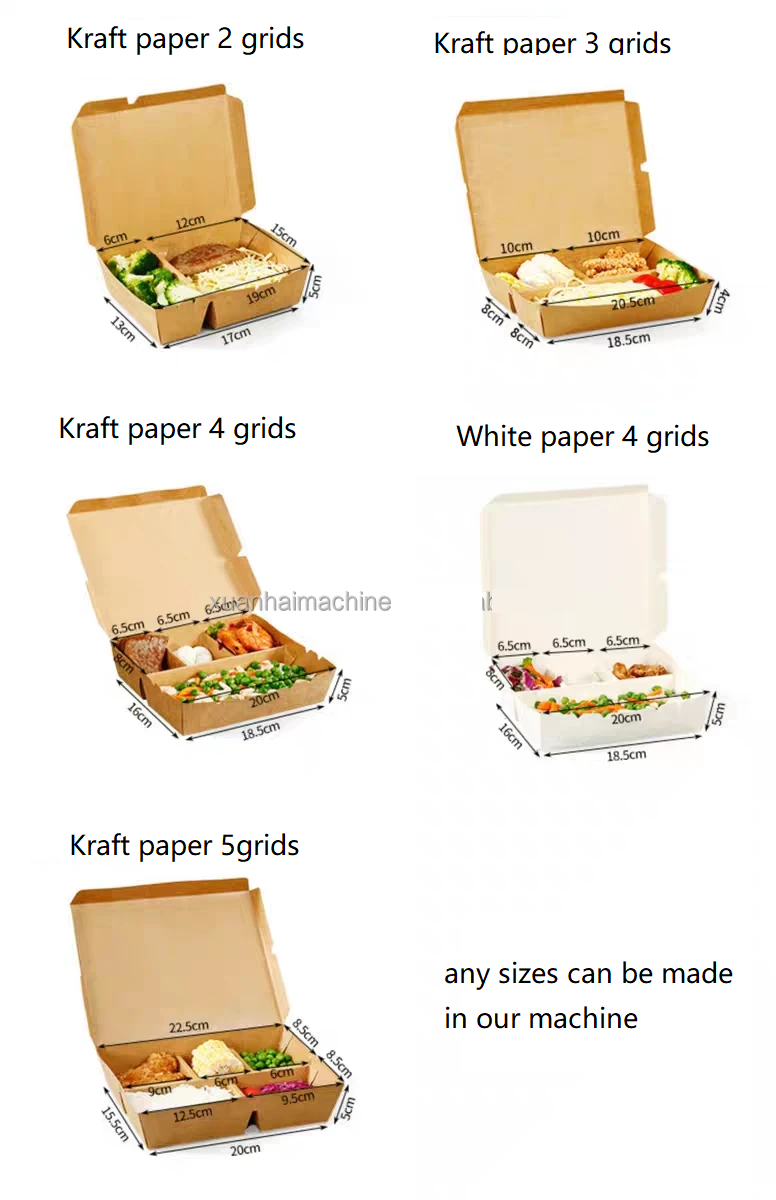

This machine can make mould according to your request,can be one grid type,two grids,three grids,four grids,five grids also.
Introduction
1. Mechanical transmission, speed, energy-saving, stable and simple operation, computer control.
2. ZF-DG full automatic intelligent medium speed paper lunch box making machine is automatic paper molding equipment, has the advantages of high speed, convenient operation etc.. This machine adopts built-in hot air generator, suitable for single PE coated paper.
3. For the production of disposable paper boxes, food packaging boxes ,this machine is automatic intelligent medium speed machine through the automatic feed paper, heating (comes with hot air generating device), hot press molding (adhesive box four corners), automatic points collected, microcomputer control of continuous processes.
4. The fastest working speed is 30 times per minute. It has the monitor computer system .If the fault the machine will stop and alarming
Technical Specification
|
Type |
ZF-DG |
|
Production capacity |
18-20pcs/min (Actual production is based on product size) |
|
Maximum size: |
200mm*270mm*45mm |
|
Suitable Material: |
200-600g/m2 PE Coated paper |
|
Total Power: |
7KW |
|
Total Weight: |
1.6T |
|
Machine Dimension: |
3400 x 1700 x 2600 mm |
|
Working Air Source: |
Air pressure 0.8Mpa (Need to buy compressor) |
Components Brand
|
Motor |
Main motor |
(CHINA SHANGHAI) |
|
SEVER MOTOR |
(CHINA HANGZHOU) |
|
|
Electrical equipment |
PLC |
(CHINA XIAMEN) |
|
TOUCH SCREEN |
(FLEXEM) |
|
|
TEMPERATURE CONTROL |
AUTONICS(KOREA) |
|
|
Relay |
(CHINT) |
|
|
Contactor |
(CHINT) |
|
|
Frequency converter |
(GTAKE) |
|
|
Photoelectric switch |
PANASONIC (JAPAN) |
|
|
Pneumatic |
Main cylinder |
AirTAC(TAIWAN) |
|
Other pneumatic components |
China famous brand |
|
|
other bearings |
HBR |
P.S. If you have different size, we can do it according to your requirement.
