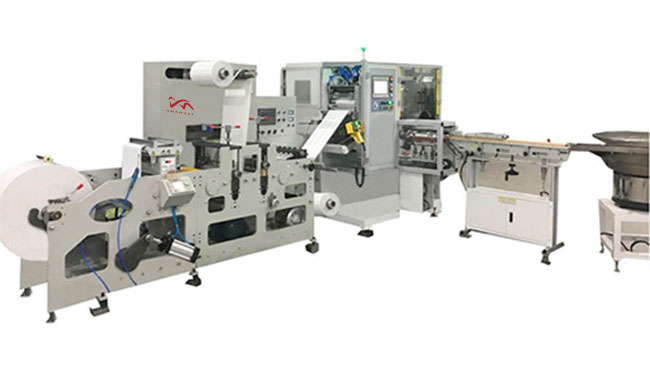

Sticker Label None Stop Slitting and Rewinding Machine
Machine features
1.Fuly automatic 4-spindles turret type non-stop rewinding machine, the rate of achieving paper success is up to 100% And it ensures that the tension stability ofequipment in the production stage regardless of jog, sped increase, speed reduction, emergency, to realize the best condition of printing machine.
2.Turret rewinding machine is equipped with automatic paper tube, which can realize rewinding online without stopping, and connect rotary die-cutting and cutting machine, flexo printing machine and other equipment. The rewinder is equipped with a 1 inch 1.5 inch 3 inch quick-release pneumatic shaft for life free of maintenance! When the rewinder is replaced with different sizes of rewinders, there is no need for manual mechanical adjustment system, which can automatically adjust the rewinder size to reduce manual labor force and realize intelligent production. The rewinder rewinder products can be easily separated from the paper tube and will not cause damage to the printing head of the printer cartridge to the end customers.
Machine Parameter
|
Model |
DG-330 |
DG-450 |
DG-570 |
|
Application |
Printed labels and blank labels rewinding |
||
|
Max rewinding diameter |
350mm |
||
|
Max width |
330mm |
450mm |
570mm |
|
Min rewinding width |
40mm |
||
|
Total power |
8kw |
14kw |
16kw |
|
Power supply |
3PH+N+PE |
||
|
Machine dimension |
1.45X3X1.7m |
1.45X3.4X1.7m |
1.45X3.6X1.7m |
|
Machine weight |
2.0T |
2.5 |
2.7T |
|
Air pressure |
0.8MPA |
||
|
Max speed |
1-inch rewinding shaft : 90m/min |
||
|
Max speed |
1.5-3 inch rewinding shaft:120m/min |
||
