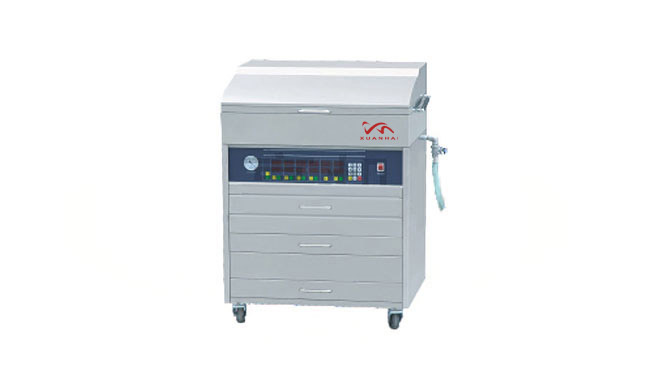

WD series flexographic plate making machine
Printing machinery auxiliary equipment includes anilox roller ultrasonic cleaning machine, plate making machine, plate mounting machine, resin plate making machine, flexographic plate making machine, Japanese Asahi Kasei flexographic plate materials, American Kodak flexographic plate materials, American DuPont flexographic plate materials, A company specializing in the production and processing of BASF flexographic plates from Germany and Toray resin plates from Japan, it has a complete and scientific quality management system.
Performance characteristics
1. The whole machine is made of stainless steel shell and is durable.
2. Imported original PHILIPS special plate-making lamp and PHILIPS ballast (the frequency conversion type is very beneficial to plate-making).
3. (Japan Toyobo) diffuse reflection ultraviolet air extraction film.
4. Fully automatic control, easy to use.
5. Use digital integrated temperature sensor imported from the United States.
6. Fully automatic plate washing mechanism.
7. Japanese Panasonic (or Oriental) plate washing motor, Japanese (ORIX) constant temperature drying air knife, strong blowing power and fast drying.
8. Adhesive removal uses imported PHILIPS special UVC light source.
9. It integrates exposure, plate washing, drying and detackification. It is an ideal equipment for making flexographic plates.
WD series flexographic plate making machine detailed parameters
|
Model |
Flexo plate printing area |
Machine size: L*W*h |
Powder |
|
ZX-400 |
430*320mm |
710*610*1050mm |
2.2kw |
|
ZX-600 |
600*400mm |
860*710*1050mm |
2.3kw |
|
ZX-800 |
800*600mm |
1090*910*1150mm |
3.5kw |
|
ZX-900 |
900*600mm |
1190*910*1150mm |
3.7kw |
|
ZX-1000 |
1000*600mm |
1290*910*1150mm |
3.8kw |
|
ZX-1200 |
1200*600mm |
1490*910*1190mm |
3.9kw |
|
ZX-1210 |
1200*1000mm |
1490*1310*1190mm |
4.2kw |
