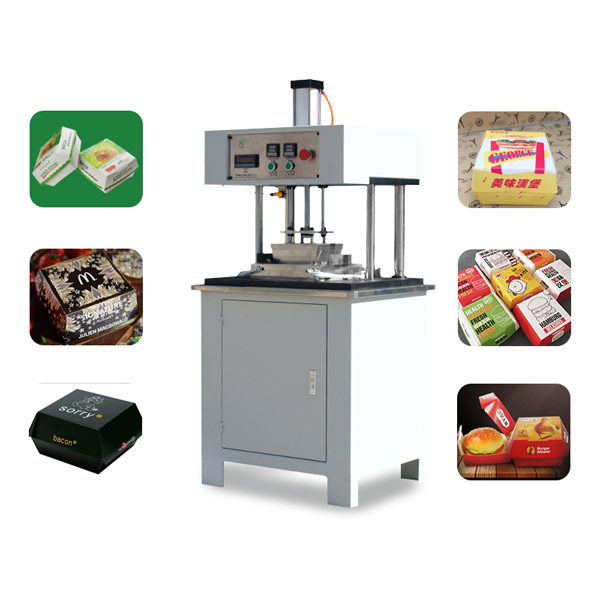

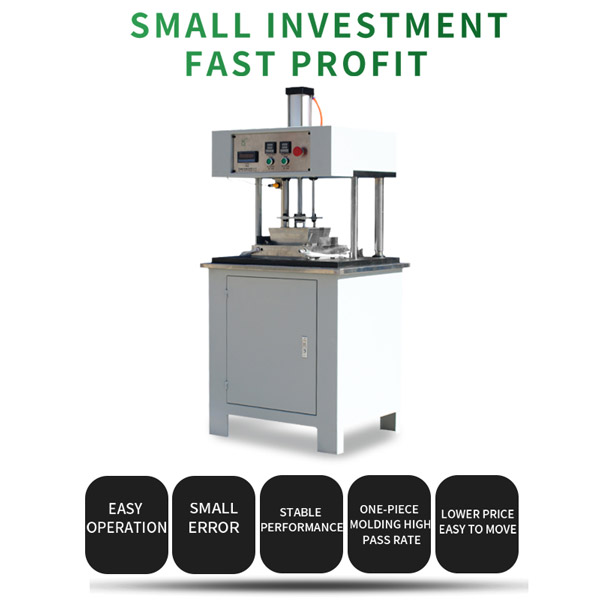

ZF-450-B Semi Automatic Paper Hamburger Box Making Machine
This Manual machine is special designed for small production quantity.
Machine Features
1. customize different size and type based on customer’s needs
2. raw material can be PE coated, paper, PLA coated paper, kraft paper, bamboo pulp paper and sugarcane paper
3. exchange mold to produce different size and type of box ,one mold will be free ,
4. forming method is heat sealing , no use any glue , finished goods will be safe for food and environment
5. full functions ,easy to operate and maintainance, performance stable
6. eco-frindly, no waster gas and water to exhaust
7. foot-touch switch, easy to control , high pass rate
8. heat pipe control, lower power, lower investment, about 3 month can return cost

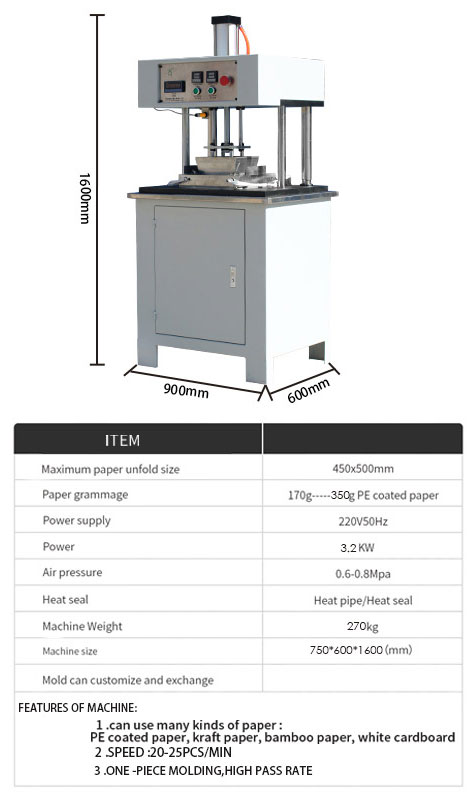

Technical Data
|
Rated productivity |
25-30pcs/min |
|
Raw material |
PE/PLA one side coated paper (220gsm-320gsm) |
|
Molding temperature |
160-200 degree |
|
Air pressure |
0.6MPA-0.8MPA |
|
Air flow volume |
1.08m3/min |
|
Total power |
2.5kw |
|
Electrical supply |
220V 50Hz |
|
weight |
220kg |
|
Dimension |
1380*900*530mm |
|
Mold |
Mold can changed to produce different size |
|
Additional equipment |
air compressor |
|
Forming method |
Heat sealing |
|
Products size |
Fold size of paper width max 340mm, height max 50mm |
Product Details
