ZF-800 Paper Food Hamburger Box Making Machine

Service Online:

Request a Quote

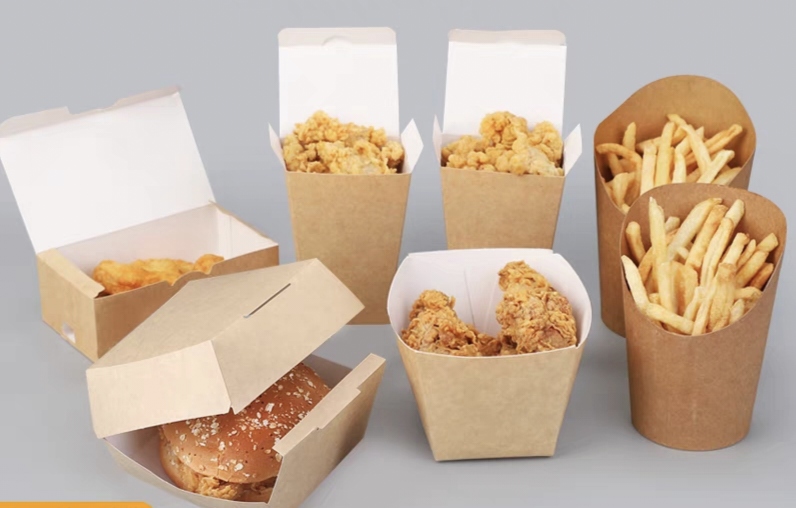

New-generation Paper Food Hamburger box making machine is molding equipment specialized in producing various paper products, which can produce hamburger box, square box, potato chipper, food box (portable outside), used in different fast food industries like KFC, McDonald's, Burger King, etc. and other boxes made by paperboard and corrugated paper.

Working principle

The paper output mechanism takes out the pre-printed and cut cardboard sheets from the paper rack and sends them to the conveyor chain, and then sends them to the forming mold. During this process, the cardboard sheets are coated with water-based glue (or hot melt Glue), the position of the glue can be adjusted at will, and the amount of glue applied can be adjusted during production without shutting down the machine. After the glued cardboard pieces are formed, they are sent to the collector, automatically stacked and counted, and processed as scheduled. The stack quantity is automatically marked without downtime.

Mechanical properties

1. Features of the new generation of three-dimensional forming carton machine: stable quality, high efficiency, speed up to 160PCS/MIN

2. Versatility: On the same machine, lunch boxes, three-dimensional boxes, hamburger boxes, potato boxes and other products of different specifications can be manufactured by simply changing the mold.

3. The machine uses a water-based glue device, which can achieve high efficiency and extremely high accuracy. Water-based glue is a water-soluble adhesive that is food-grade (highly safe).

4. Most of this machine uses high-quality sealed bearings with long life and good stability.

5. The machine adopts PLC intelligent control system, which will automatically stop when there is a paper jam or no paper.

6. The main mold is made of pine wood, and the replacement of the mold is highly efficient.

7. It can automatically collect and count finished products.

8. All are driven by high-quality synchronous belts, making the machine almost error-free during operation.

Material

Cardboard from 200gsm to 600gsm

Corrugated board thickness up to 1.5mm

Specification

Blank length	100mm~450mm
Blank width	100mm~580mm
Height of side flaps	15mm~200mm
Height of side flaps+lid	50mm~200mm
Angle	5°~40°
Production Speed	60-160 pcs/min (different paper box shapes, the speed is different )
Power voltage	380V 50Hz
Total power	5.5kw

The advantages of our carton erecting machine compared to the carton erecting machines on the market

1. The production speed reaches 160 pieces/minute;

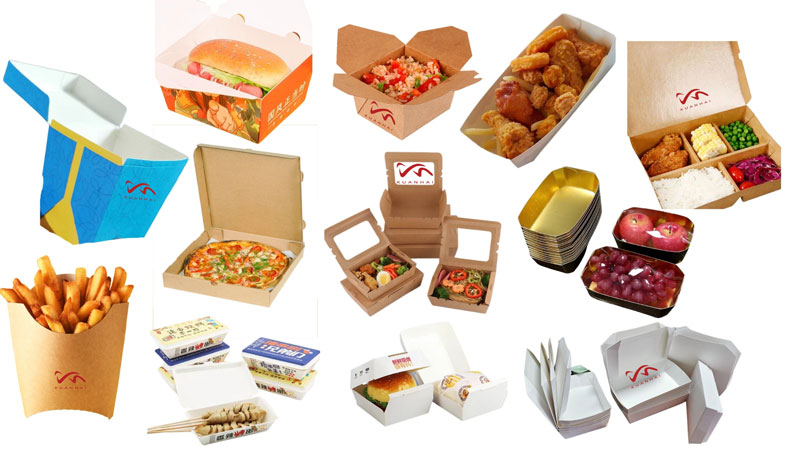

2. The types of boxes produced are diversified. It can produce more than 5 varieties paper food packaging box in the market, and the moulds can also be customized according to customer requirements;

3. The carton manufacturing process is relatively stable, and generally no further debugging is required after startup;

4. Factory direct sales, price advantage, welcome to China visit our company, and after purchase, professionals will provide on-site technical guidance.
