ZF-B 1 2 Compartment Paper Lunch Box Forming Machine

ZF-B Full Automatic Multi Grid 1 2 3 4 Compartment Take Away Paper Lunch Fast Food Box Forming Making Machine

Service Online:

Request a Quote

Product Description

Machine Advantages:

Fully Automatic Intelligent papepr box for max grid 2 compartment take away paper lunch fast food box forming making machine is with the advantages of high speed and convenient operation.

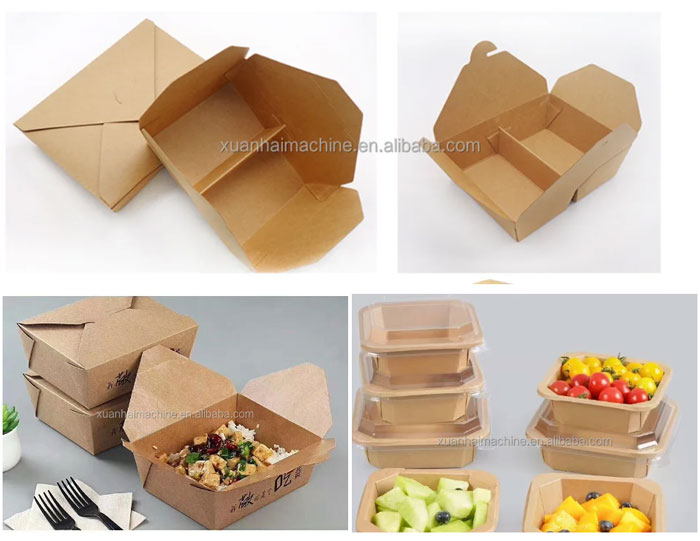

This model uses self-contained hot air generator for single PE coated paper. It is used to produce disposable paper lunch boxes through automatic feeding, heating (with hot air generating device), hot press forming (four corners of bonded lunch boxes), automatic collection, and microcomputer control. Paper lunch boxes, cake tray, food packaging boxes, etc.

The current working speed of the equipment is the fastest 50 times/minute. It has automatic systems such as feeding monitoring, paper feeding monitoring, forming monitoring, and collection monitoring. If there is a fault, the machine will stop and alarm.

Model	ZF-B
Max size	600 x550mm
Production capacity	30-50 times/min(Actual production according to product size)
E-power voltage	380V 50HZ (can be changed)
Suitable Material	200-600g/m2 PE (PE Coated paper)
Total Power:	3KW
Total Weight:	1T
Machine Size:	2200x 1200 x 2500 mm
Working Air Source:	Air pressure 0.4-0.5Mpa (Need to buy compressor)

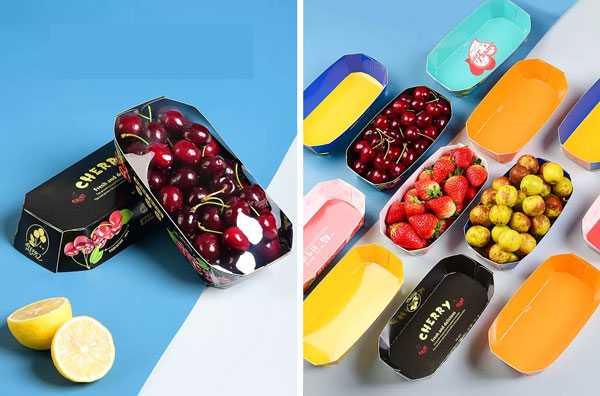

Disposable fruit boutique boat shaped fruit tray, color packaging box, packaging box, gift column packaging paper box making machine

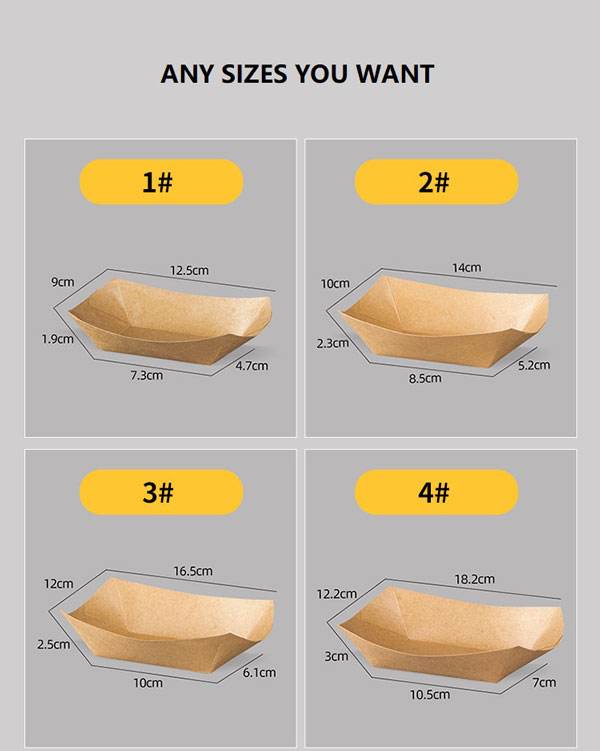

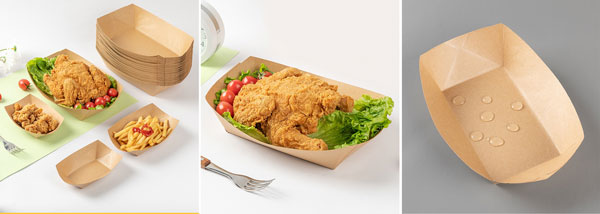

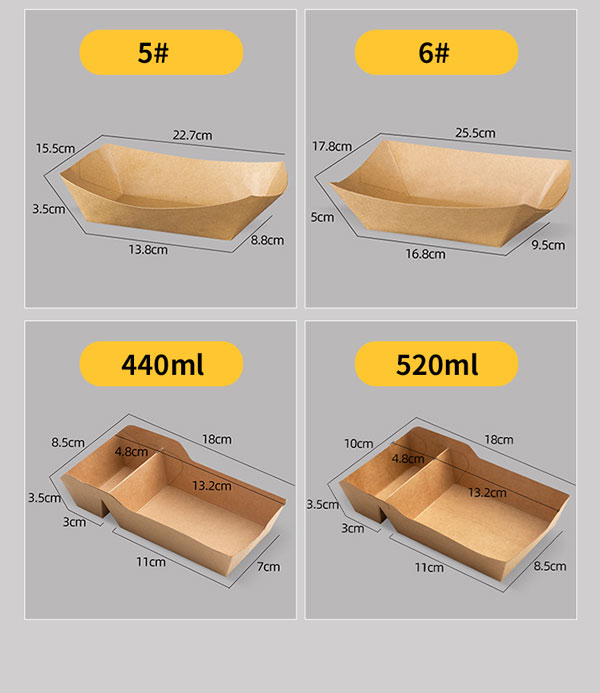

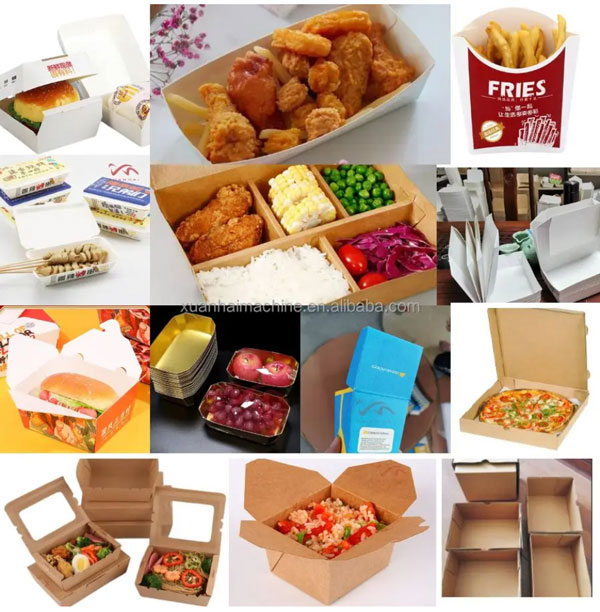

Kraft paper boat box, disposable lunch box, snack paper plate, open barbecue plate, fried chicken and French fries boat shaped packing box forming machine

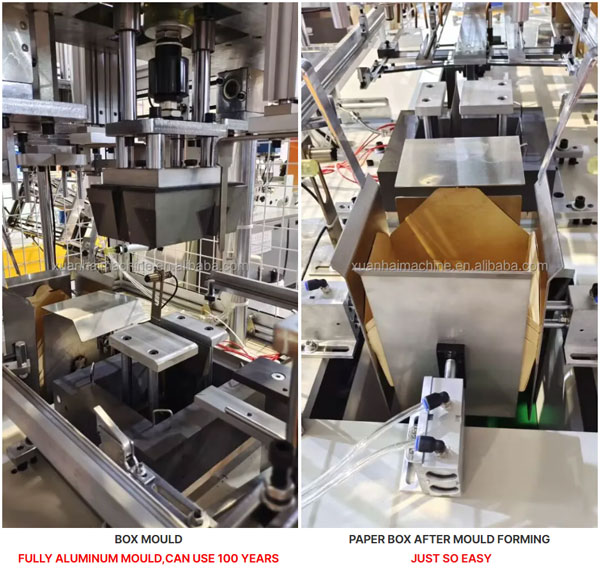

Details Images

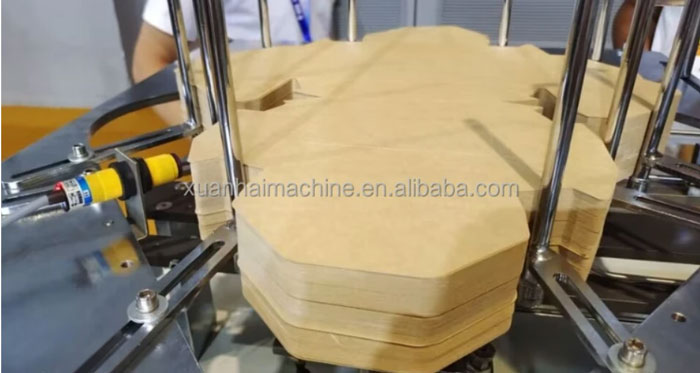

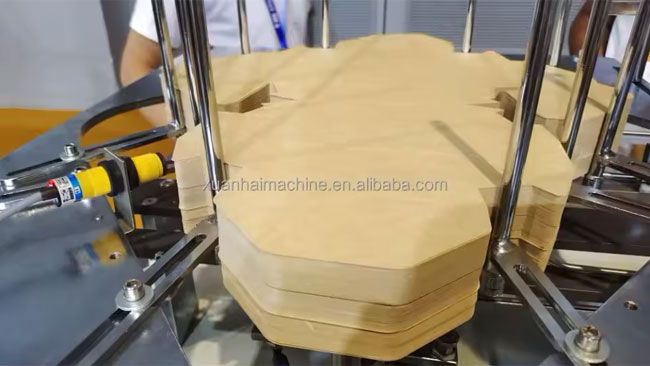

paper feeding

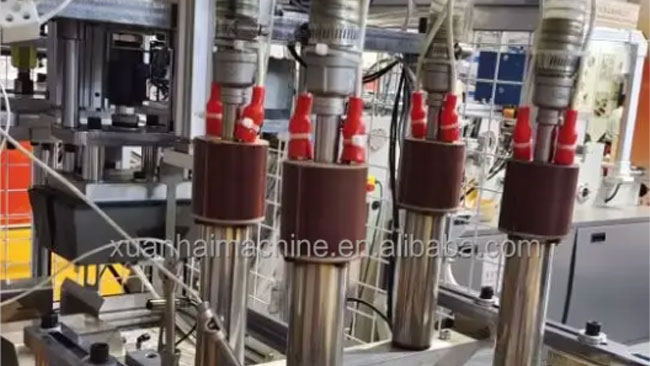

HEATING BLOWER DEVICE TO HEAT THE PE COATED PAPER

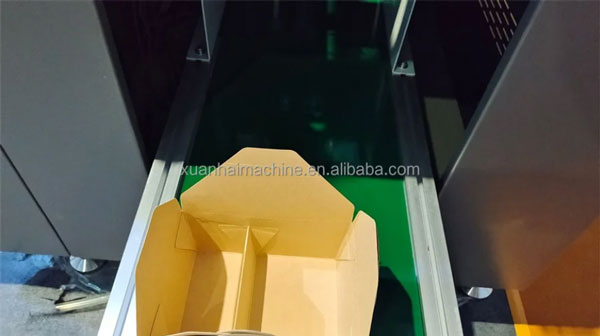

Finished box comes out by conveyor belt

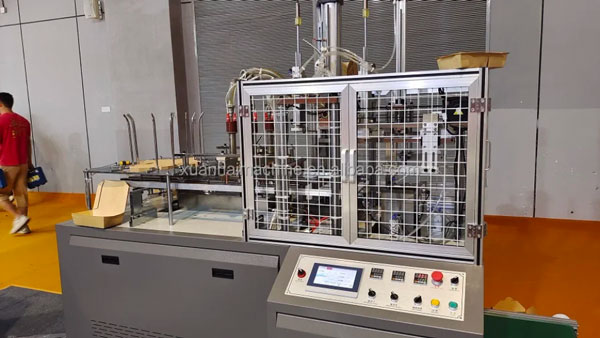

Full operation is finished. One worker for one machine.
