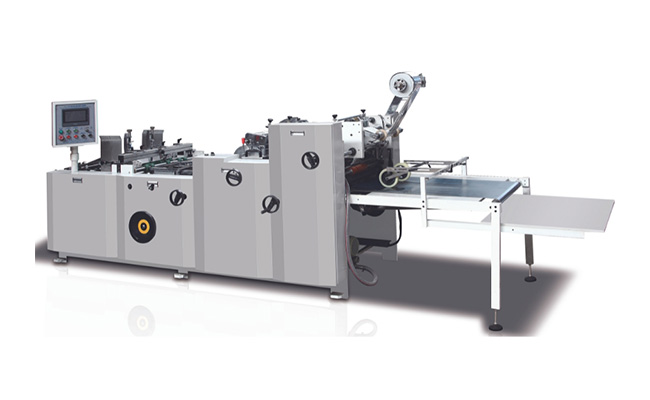

PP Clear Window Patching Machine For Food Box
Product description
Window Patching Machine is widely used for patching the window on the liquor box, gift box, tissue box, cosmetic box, toy box and so on.

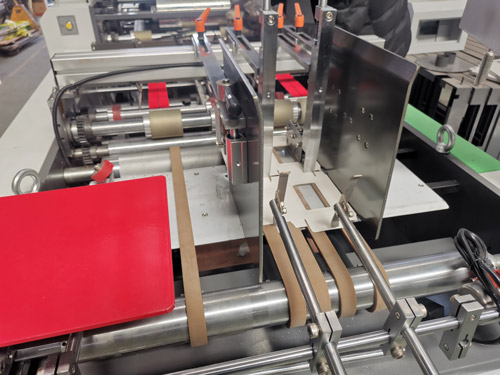

1.The paper feeder is controlled by servo motor, the belt is from Poland. No-stop feeding paper, no overlapping paper or missing paper.

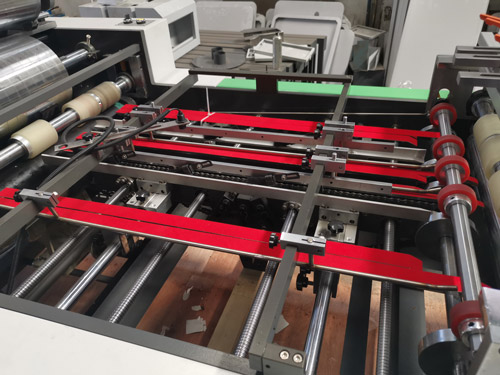

2. The paper moving system adopt pushing chain and air sucking belt. They have positioning function, insure the paper comes same place in same time.

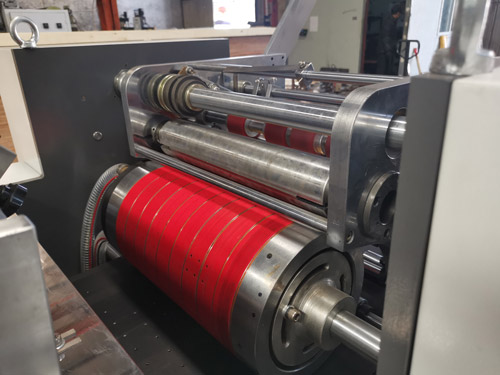

3. Glue part adopt flexo printing technology. We can adjust the place of glue on the paper without any stop. When missing paper, glue part will up in case of the glue leaves on the air sucking belt.

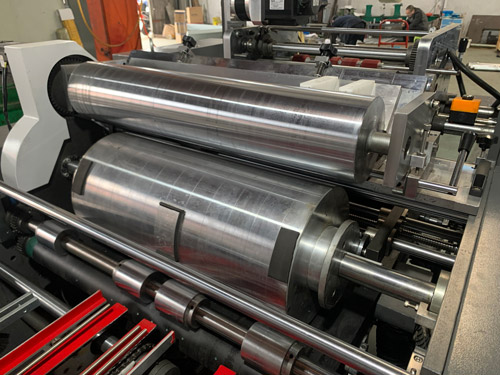

4. The film cutting part adopt roll-knife. It is controlled by servo motor so that we can adjust the film length without stop in the PLC. It also can adjust the place of film on the paper without stop. It has special knife to cut film for tissue box.
Main Technical
|
Model |
TC-650 |
|
Paper weight |
200 gram - 1000 gram |
|
Capacity |
16000 pieces/hour |
|
Size range of paper |
Min.150mm x 160mm Max.560mm x 650mm |
|
Size range of window |
Min.30mm x 50mm Max.300mm x 350mm |
|
Film thickness |
0.05-0.25mm |
|
Total power |
6.4 kw |
|
Machine weight |
2000kg |
|
Machine size |
4500x1200x1600mm |

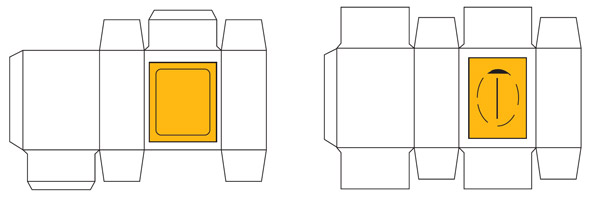

Sample show
