ML800 Shaped Paper Tray Forming Machine
The ML800 Shaped itelligent paper disc (tray) machine is developed and designed based on market demand, mainly targeting conventional paper trays, iregular paper trays, deep paper bowls, and enlarged and thickened paper trays. The ML800 has reorganized the principle of combining hydraulic and mechanical control, with paper feeding servo motor control, precise positioning. and the robotic arm closing and stacking.

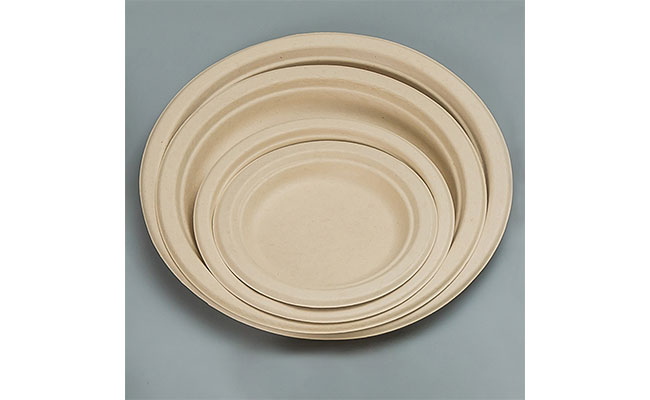

Compared with traditional fully automatic paper tray machines, ML800 has a higher disc output rate, more convenient operation and maintenance, and is more stable. ML800 is widely used in the production of raw materials such as raw paper or aluminum foil. Different specifications. especially deep paper trays, can be produced by changing molds, circular plates, square plates, etc. and the problem of dfficult collection is overcome.
Technical parameter
|
Model |
ML800 |
|
Paper size
|
Disc diameter 100- 420mm Square disc 450 (length) x 400(width) mm |
|
Speed |
15-25 pieces/minute |
|
Power requirements |
380V 50Hz |
|
Total power |
8kw |
|
Weight |
2000kg |
|
Specifications |
2600x1 100x2100mm |
|
Raw material |
100- 3500g/m' (Base paper, white cardboard, white cardboard, aluminum foil paper, or other heavy gsm paper) |
|
Air source |
Working pressure 0.4Mpa working air volume 0.3m/min |
|
Max Mpa |
20-30T |
