Double Stations Octagon Cardboard Box making Machine
Machine introduction
This is full automatic intelligent food box making machine, This machine adopts hot air generator, suitable for single PE coated paper.

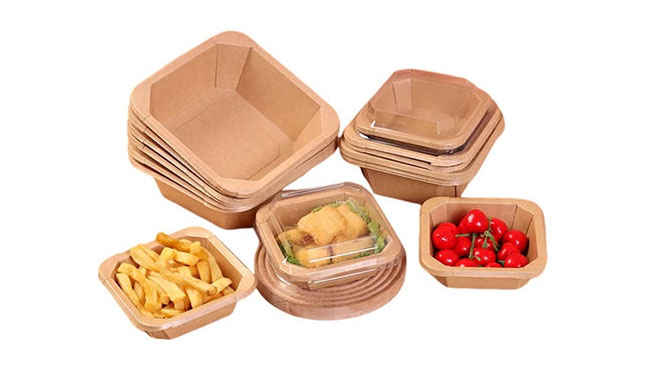

For the production of single-cell disposable paper boxes, paper boxes, cupcakes, food packaging boxes and B automatic intelligent medium speed cake cup machine through the automatic feed paper, heating (comes with hot air generating device), hot press molding (sealing box four corners), automatic points collected, computer control.
The current fastest working speed of the equipment is 50 times per minute. It has automated systems such as feeding monitoring, paper feeding monitoring, forming monitoring, and collection monitoring. If there is a malfunction, the machine will stop and sound an alarm.
Specification
|
Model No. |
ZF-T2 |
|
|
Production capacity: |
40-50times/min(Actual output is subject to product size) |
|
|
Maximum size: |
400 x400mm |
|
|
Suitable Material: |
250-400g/m2 PECoated paper, etc.(PE Coated paper) |
|
|
Total Power: |
10KW |
|
|
Total Weight: |
1.5T |
|
|
Machine Dimension: |
Host 1800*1450*2000MM Collect1350 x 1400 x 1300MM |
|
|
Working Air Source: |
Air pressure 0.5-0.6Mpa (Need to buy compressor) |
|
|
Motor |
Main motor |
(CHINA ) |
|
Electrical equipment: |
PLC |
(TAIWAN) |
|
TOUCH SCREEN |
（FLEXEM） |
|
|
TEMPERATURE CONTROL |
AUTONICS(KOREA) |
|
|
Relay |
Chint |
|
|
Contactor |
Chint |
|
|
Frequency converter |
JiTaiKe |
|
|
Photoelectric switch |
AUTONICS(KOREA) |
|
|
Pneumatic: |
Main cylinder |
AirTAC(TAIWAN) |
|
Other pneumatic components |
China famous brand |
|
|
other bearings |
HBR |
|
Machine details

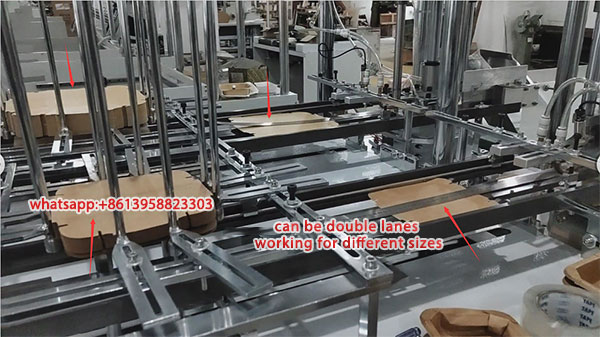

Double stations material in (can be different size)

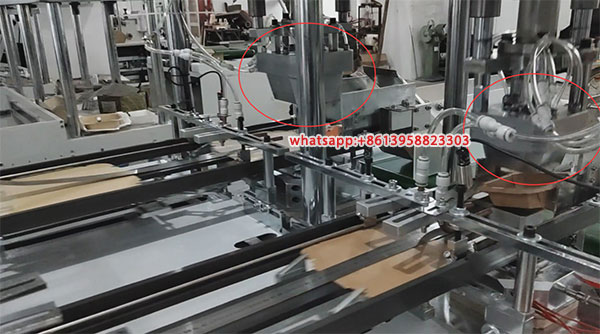

Double moulds forming the box

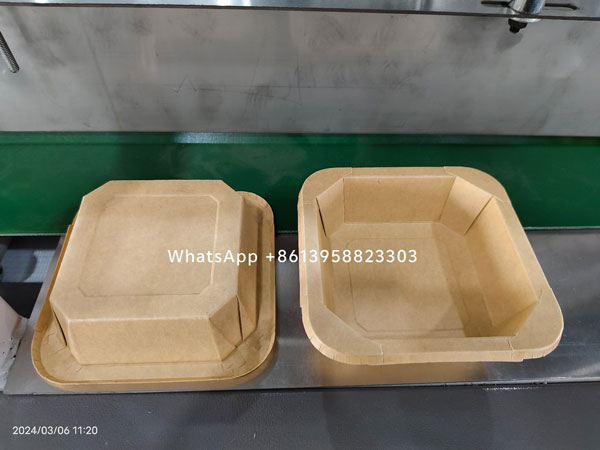

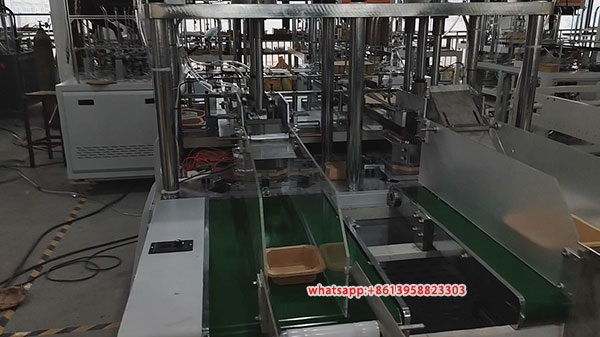

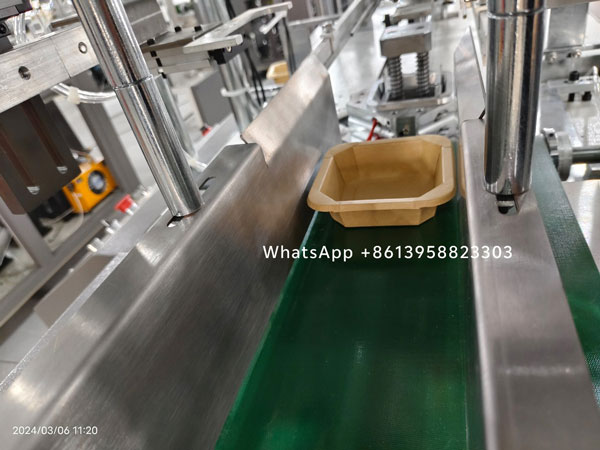

Double boxes come out
Best wishes
|

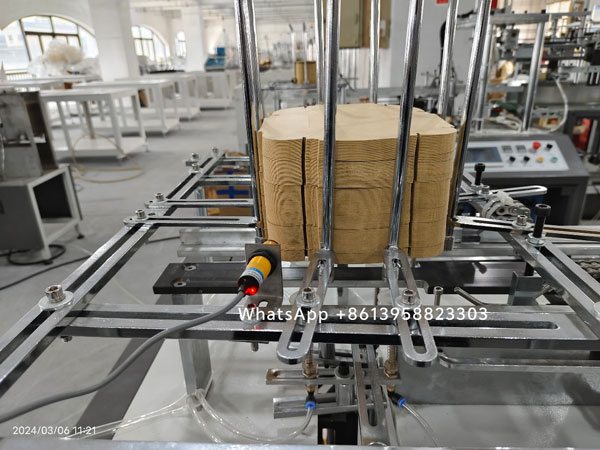

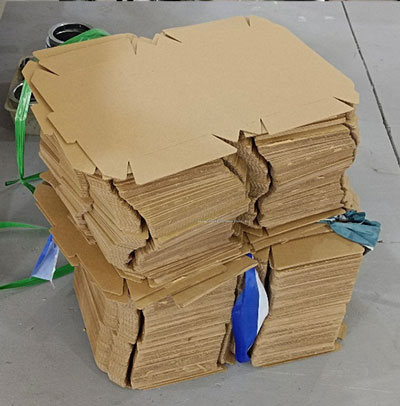

Sheet die cutted paper |

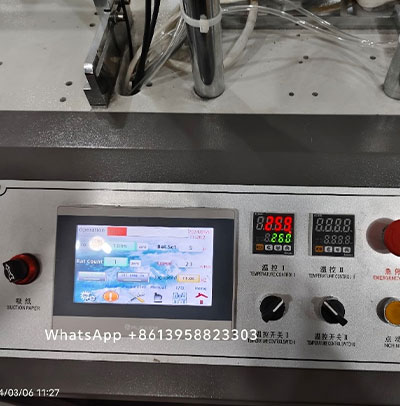

Computer control |
|
|
|
|

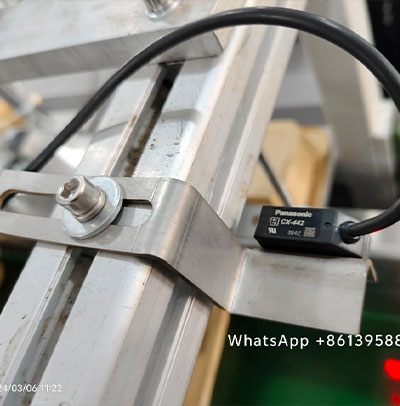

Sensor |

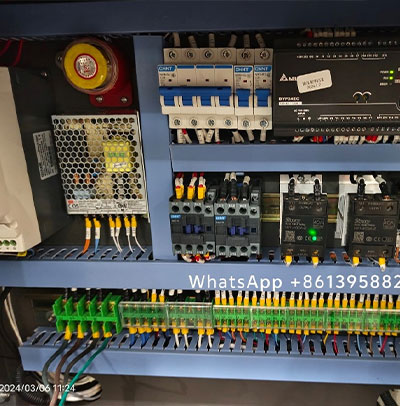

Famous brand electrical parts |
|
|
|
