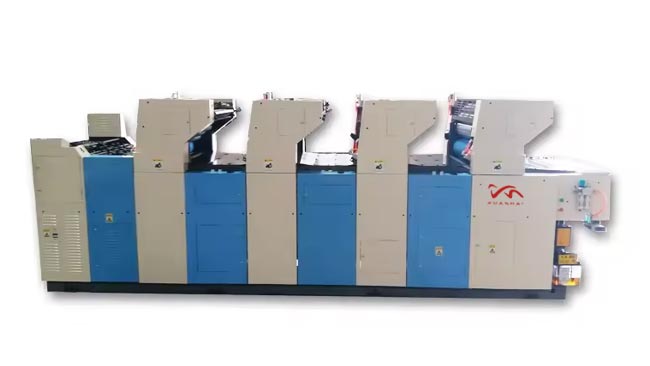

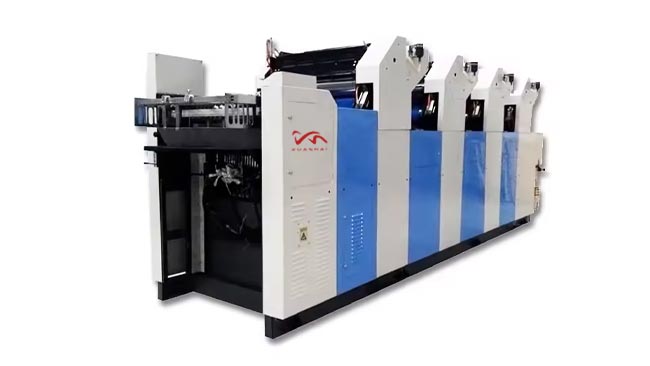

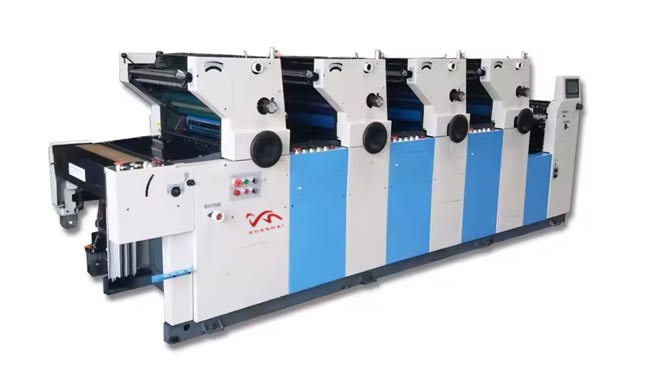

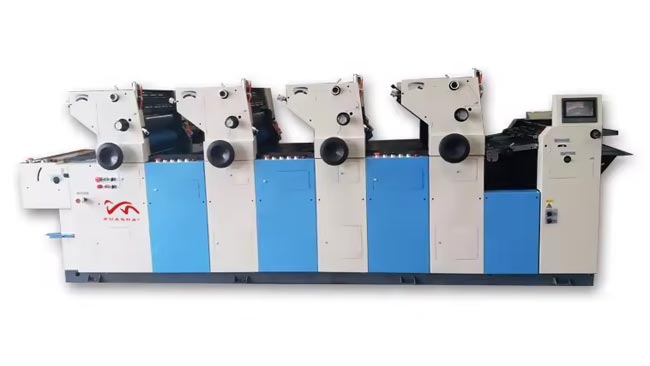

ZR462II Automatic Four Color Offset Printing Machine

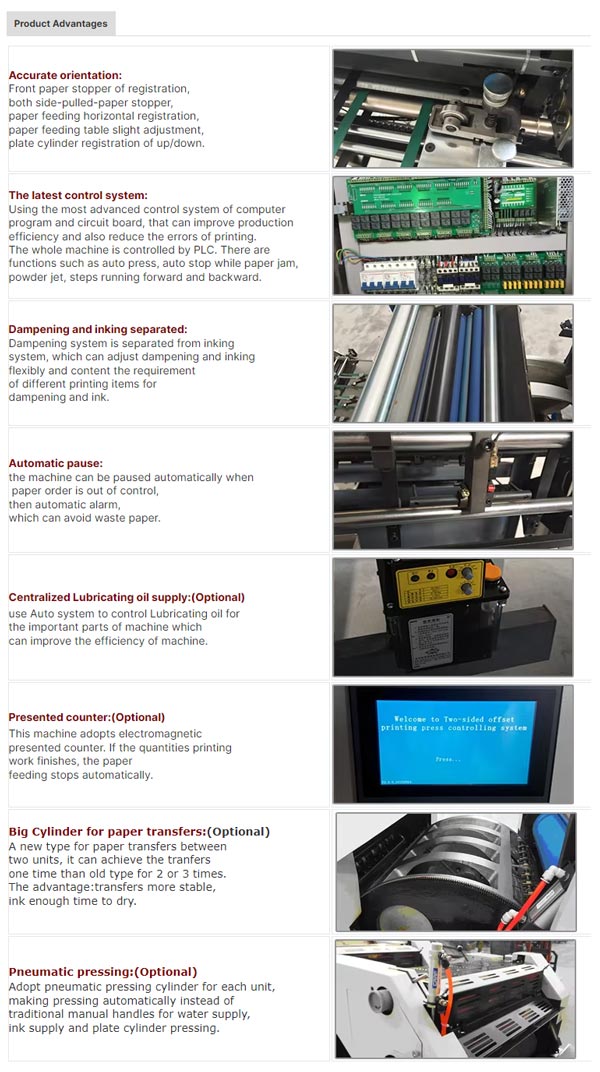

FEATURE
This machine has smart structure,practicable and economical.
It's an advanced type on basic of Hamada machine.
It adopts two form ink rollers and one form dampening roller structure.
It can achieve single-color print, over print for 2 Colors,3 Colors,4 Colors.
It has the plate micro-adjustment function.
It's easy to operate. (Pneumatic Press,Touching Screen is optional)
It adopts advanced PLC programmable controller
PRODUCT SPECIFICATIONS
|
Machinery Printing Machine ZR462II Automatic Four Color Offset Printing Machine Price |
|
|
Model |
ZR462II |
|
Max. sheet size |
620 × 450mm |
|
Min. sheet size |
260 x 180mm |
|
Max. print format |
605 × 440mm |
|
Plate size |
620 × 485 × 0.15mm |
|
Blanket size |
616 × 505 × 1.95mm |
|
Paper size |
45-250gsm |
|
Max. speed |
7000 sheets/hour |
|
Speed adjustment |
Frequency converter |
|
Gripper margin |
8-10mm |
|
Inking rollers |
14pcs per unit(3 forme) |
|
Dampening rollers |
4pcs per unit(1 forme) |
|
Power supply |
380v/50Hz |
|
Main motor |
4kw |
|
Air pump motor |
1.5kw |
|
Machine dimension |
4350(L) × 1040(W) × 1460(H)mm |
|
Net weight |
3200kg |
|
Package dimension |
4650(L) × 1150(W) × 1720(H)mm |
|
Gross weight |
3540kg |
