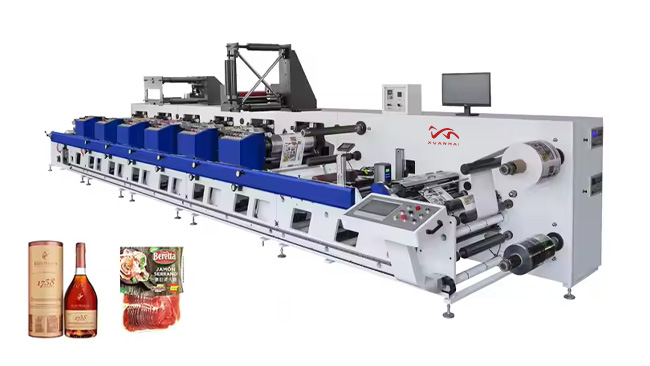

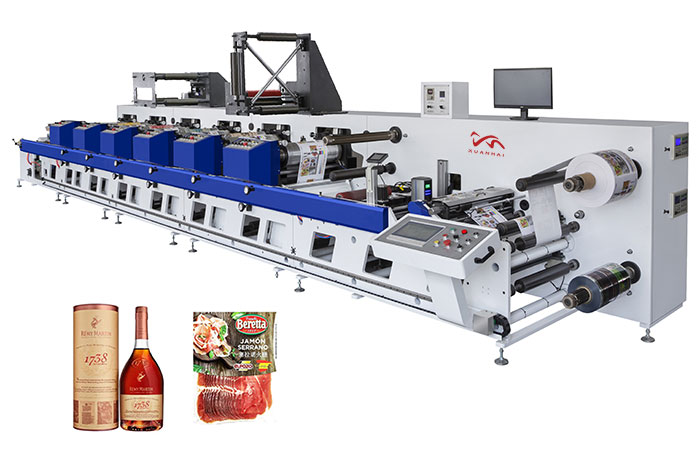

Full automatic 2 4 6 8 10 Colors Unit Type 3ply plastic label Flexographic Flexo Printing Machine

Service Online:

Request a Quote

Product Description

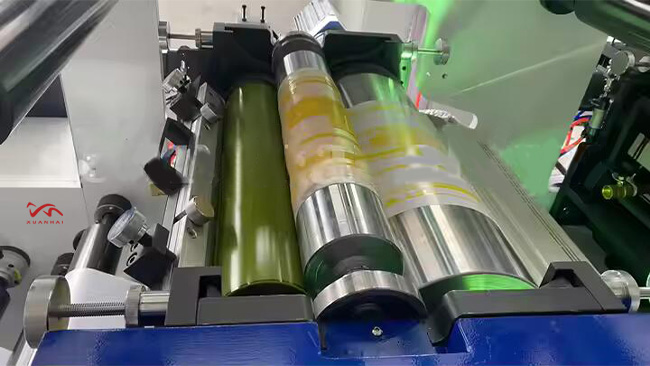

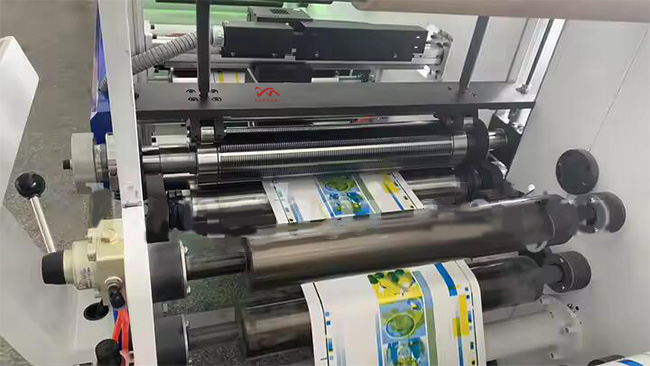

The maximum printing speed is 120 m / min. The control system of the whole machine adopts the latest servo control system in yaskawa, Japan. Each unit is driven by servo motor. A total of 14 servomotors are used in the whole machine, which provides guarantee for the high precision alignment of the machine in high speed operation. Plate roller used pillow type installation, aluminum alloy material, high-precision helical gear transmission, simple and fast operation.

1) Ultra-short distance from feeding to receiving.

2) The ceramic stick with scraper has firm printing and clear color.

3) The repeated printing length is 190.5-635MM, which fills the gap of insufficient printing length of the laminated flexographic printing machine.

4) The use of gear color registration solves the shortcomings of the 360-degree color registration device, such as large gaps and poor assembly, which affect the accuracy of color registration and stable printing.

5) Paper feeding, printing, UV drying, and rewinding can be completed continuously at one time.

6) Water-based ink printing, pollution-free, environmentally friendly, and the printing speed varies with different network cables. Currently, the fastest label printing speed is 90 meters per minute.

7) Printing bills, labels, cardboard, high-end stickers, clothing tags, etc.

8) Printing materials: paper, 20~250g/ ㎡ self-adhesive soft roll materials and other materials.

Machine Parameters

Model	SY350
Overprinting accuracy	0.1mm
Printing width	330mm
Printing length	180-580mm
Max diameter of rewinding	800mm
Max diameter of unwinding	800mm
Mechanical speed	150m/min
Printing Color	1-12 colors
Total power	150KW
Machine weight	about 8000KG
Dimensions	1100017001500mm
Power supply	380V,3 phase,50HZ
