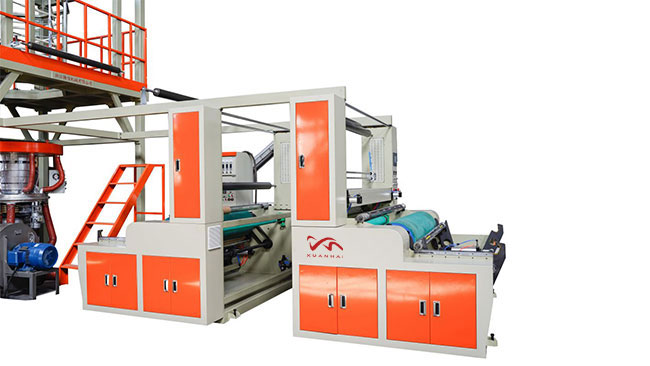

3SJ Three-Layer Co-Extrusion IBC Film Extrusion Machine
Description
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain,anti-rost, insulation oxygen,oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding,salt vegetables, fresh milk, drink.
Three layer co-extrusion internal bubble cooling haul-off rotary die head film blowing machine Characteristics:
1.Die head is layer type spiral mandrel, continuous 360 rotation.
2.Screen pack changer design is reliable, safe in operation and change the fitter screen easier.
3.Various functional parts may be installed to the lies.,such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller,scrap collecting device.
Three layer co-extrusion internal bubble cooling haul-off rotary die head film blowing machine Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain,anti-rost, insulation oxygen,oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding,salt vegetables, fresh milk, drink.
Main technical parameters
| Model | 3SJ-50 | 3SJ-55 | 3SJ-65 |
| Suitable Material | HDPE LDPE LLDPE | ||
| Film Width | 800-1200mm | 1000-1500mm | 1200-2000mm |
| Film Thickness | 0.028-0.20mm | 0.028-0.20mm | 0.03-0.20mm |
| Max.Extrusion Output | 120kg/hr | 150kg/hr | 200kg/hr |
| Extruder | |||
| Screw Diameter | Aφ50 Bφ50 Cφ50 | Aφ55 Bφ60 Cφ55 | Aφ60 Bφ65 Cφ60 |
| Screw L/D Length | 28/1，30/1 | ||
| Screw Material | Sacm-645/38 Crmoala | ||
| Cylinder Material | Sacm-645/38 Crmoala | ||
| Cylinder Cooling | 370w x 2/3 | 370wx2/3 | 550wx3/3 |
| Driving Motor(kw) | A15+B15+C15 | A18.5+B22+C18.5 | A22+B30+C22 |
| Temperature Control | 3x3 | 3x3 | 3x3 |
| Average Power-consume | 80kw | 95kw | 120kw |
| Type of die | |||
| Die Size | 280mm | 350mm | 500mm |
| Temperature Control | 4 | ||
| Air Ring | 1 | ||
| Air Blower | 3kw | 5.5kw | 5.5kw |

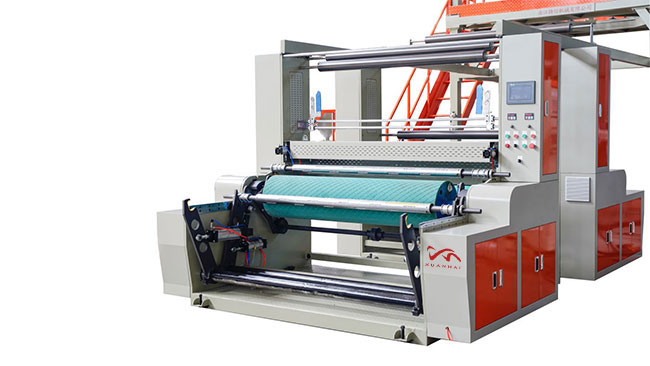

| Take-up Unit | |||
| Roller Width(mm) | 1300 | 1600 | 2100 |
| Take-up Speed | 5-50m/min | 5-50m/min | 5-50m/min |
| Take-up Motor | 1.5kw | 2.2kw | 2.2kw |
| Winding Unit | |||
| Type | Surface Friction Type | ||
| Winding Motor | 1.5kw | 2.2kw | 2.2kw |
| Winding Speed | 5-50m/min | 5-50m/min | 5-50m/min |
| Outline Diameter(LxWxH) | 9.5x4.5x7.5m | 10.5x5.0x9m | 11.5x5.5x10m |
