ZF-800 Fast food Carton Erecting Machine

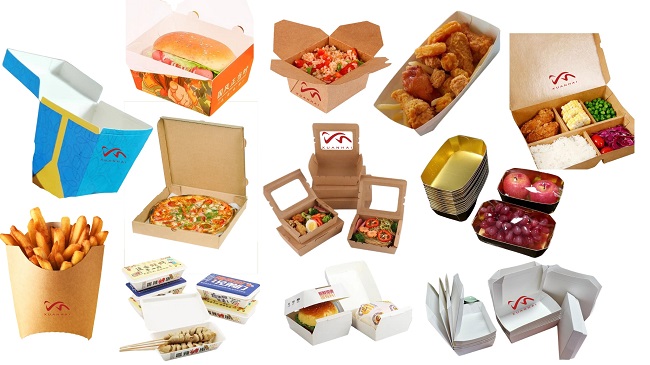

New-generation Food Packaging Paper Carton Erecting Machine is a equipment specialized in producing various paper products packing carton, which can produce hamburger box, square box, potato chipper, food box (portable outside), used in different fast food industries like KFC, McDonald's, Burger King, etc. and other boxes made by paperboard and corrugated paper.
Working principle
The paper output mechanism takes out the pre-printed and cut cardboard sheets from the paper rack and sends them to the conveyor chain, and then sends them to the forming mold. During this process, the cardboard sheets are coated with water-based glue (or hot melt Glue), the position of the glue can be adjusted at will, and the amount of glue applied can be adjusted during production without shutting down the machine. After the glued cardboard pieces are formed, they are sent to the collector, automatically stacked and counted, and processed as scheduled. The stack quantity is automatically marked without downtime.
Mechanical properties
Our Fast food Carton Erecting Machine with high quality sealed bearings, good stability. With automatic collection and counting function of finished products.
- Production speed speed up to 160PCS/MIN.
- Simply change the mould to continue producing different box types.
- The machine adopts water-based glue device, which can achieve very high precision.
- PLC control is adopted, automatic stop for paper blocking and paper shortage.
Technical parameter
Material
Cardboard from 200gsm to 600gsm
Corrugated board thickness up to 1.5mm
Specification
| Blank length | 100mm~450mm |
| Blank width | 100mm~580mm |
| Height of side flaps | 15mm~200mm |
| Height of side flaps+lid | 50mm~200mm |
| Angle | 5°~40° |
| Production Speed | 60-160 pcs/min (different paper box shapes, the speed is different ) |
| Power voltage | 380V 50Hz |
| Total power | 5.5kw |
The advantages of our carton erecting machine compared to the carton erecting machines on the market
1. The production speed reaches 160 pieces/minute;
2. The types of boxes produced are diversified. It can produce more than 5 varieties paper food packaging box in the market, and the moulds can also be customized according to customer requirements;
3. The carton manufacturing process is relatively stable, and generally no further debugging is required after startup;
4. Factory direct sales, price advantage, welcome to China visit our company, and after purchase, professionals will provide on-site technical guidance.
